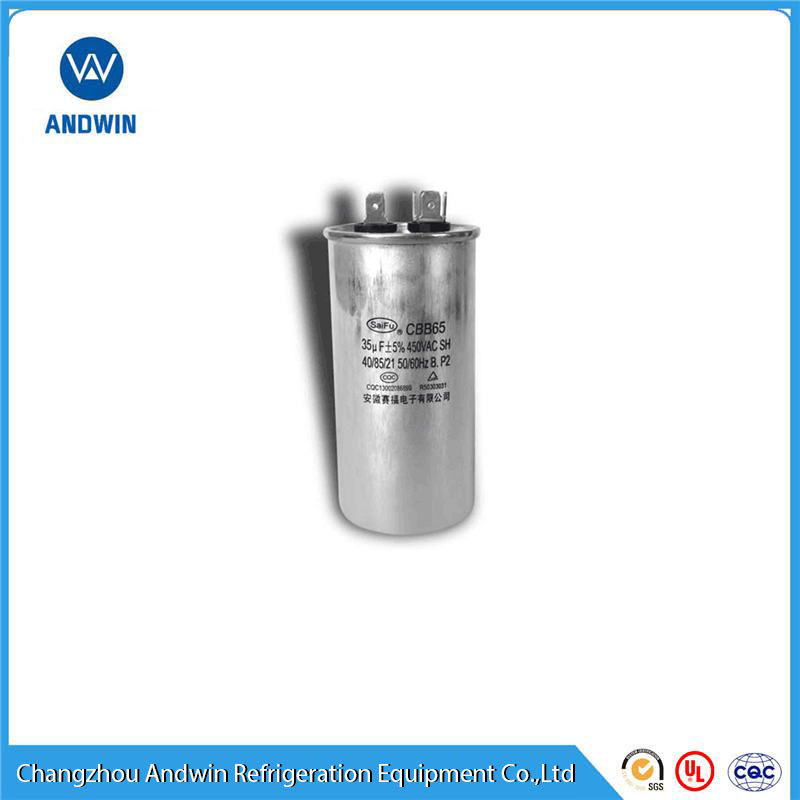

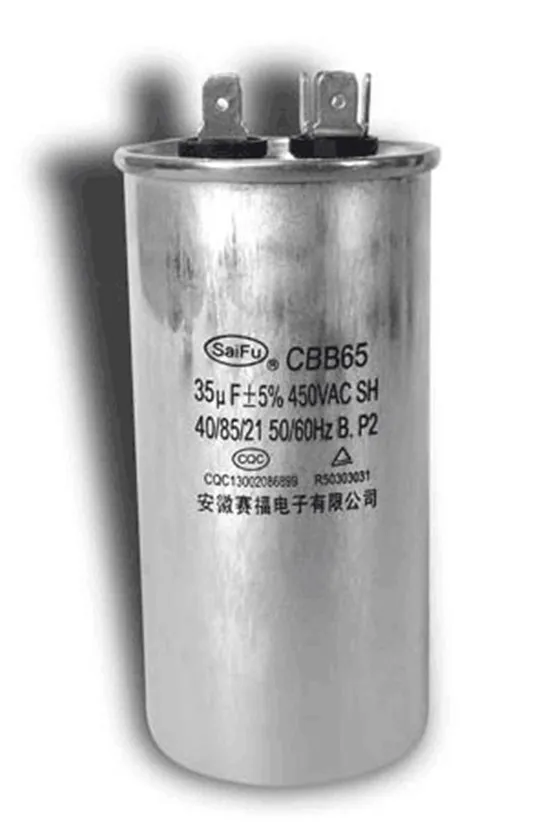

Cbb65 AC Motor Capacitor (aluminum case, anti-explosion)
Cbb65 AC Motor Capacitor (aluminum case, anti-explosion) Features:1:Widely applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency power.2:Self-healing property.3:High stability and reliability.4:Safer with anti-explosion design5:Round capacitor,can be provided oval capaci......
Send Inquiry
Product Description
Cbb65 AC Motor Capacitor (aluminum case, anti-explosion)
Features:
1:Widely applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency power.
2:Self-healing property.
3:High stability and reliability.
4:Safer with anti-explosion design
5:Round capacitor,can be provided oval capacitor.
6:Single capacitor, can be provided double capacitor.
Specifications:
Dimension:
Note: Other specifications,size and terminal outside table are negotiable
Description:
Air conditioner capacitor , oil capacitor, motor capacitor, IGBT capacitor, CBB65 capacitor,motor run capacitor, aluminum case capacitor ,anti-explosion capacitor ,inverter welding capacitor, fan capacitor, CBB61 capacitor.
The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric. The elements are tight winded by high-velocity winders and canned in aluminum cases. Refined castor oil is adopted as impregnation agent treated in vacuum and high temperature condition. Those make a more reliable performance and longer lifespan for a capacitor. Meanwhile the second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors. The reliability is more affirmatively enhanced.
Applications:
Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for family air conditioners and high power illuminators for the sake of power factor compensation.
Technical Specifications:
Standard:IEC 60252-1:2001
Technical features:
Climate type:40/70/21 or 40/85/21
Capacitance tolerance:± 5%
I.R:≥3000S(MΩ·µF)
Dielectric dissipation factor:tgδ≤0.002 (50Hz~100Hz)
Application requirements:
Altitude:≤2000m
Residual voltage while loading: less than 10% of rated voltage.
Allowed maximum voltage: less than 1.1 times of rated voltage
Permissible maximum current: less than 1.3 times of rated current.]
Dimensional specification (mm):
Note:
1.Other capacitance and dimension serials can be specified in compliance with customer's request.
2,Terminal forms can be made in conformity to the requirements of agreements with customers.
Packing&Shipment:
Our related product:
Our company:
Changzhou Andwin Refrigeration Equipment Co.,Ltd
Add- No 91 Hanjiang Road New District Changzhou Jiangsu China
main product:
Insulation Copper Tube;
Aluminum Tube;
Copper Tube;
Brass Pipe.
capacitor
Advanced One-Stop Purchasing Service-In Air-conditioning And Refrigeration Industry
Contact
Aimee Chen
Features:
1:Widely applied to starting and running of AC single-phase motors at 50Hz/60Hz frequency power.
2:Self-healing property.
3:High stability and reliability.
4:Safer with anti-explosion design
5:Round capacitor,can be provided oval capacitor.
6:Single capacitor, can be provided double capacitor.
Specifications:
| Reference standards | GB/T 3667.1 ( IEC60252-1 ) |
| Climatic category | 40/70/21, 40/85/21 |
| Class of operation | Class B (10000h) Class C (3000h) |
| Class of safety protection | P2/P1 |
| Voltage range | 200-500VAC |
| Capacitance range | 2-100µF |
| Capacitance tolerance | ±5% |
| Dissipation factor | 20x10-4 (100Hz, 20ºC ) |
| Test voltage terminal to terminal UTT | 2 Un for 2 seconds |
| Test voltage terminal to case UTC | (2Un+1000)VAC or 2000 VAC-50Hz for 60 seconds |
| Insulation resistance | ≥3000MΩ. µF(100Hz,20ºC,1min) |
Dimension:
| NO. | Specification | Terminal | Size |
| 1 | CBB65-450VAC-10μF | 2*4 or 2*2 Insert | φ50*85 |
| 2 | CBB65-450VAC-12.5μF | 2*4 or 2*2 Insert | φ50*85 |
| 3 | CBB65-450VAC-15μF | 2*4 or 2*2 Insert | φ50*85 |
| 4 | CBB65-450VAC-20μF | 2*4 or 2*2 Insert | φ50*85 |
| 5 | CBB65-450VAC-25μF | 2*4 or 2*2 Insert | φ50*85 |
| 6 | CBB65-450VAC-30μF | 2*4 or 2*2 Insert | φ50*100 |
| 7 | CBB65-450VAC-35μF | 2*4 or 2*2 Insert | φ50*100 |
| 8 | CBB65-450VAC-40μF | 2*4 or 2*2 Insert | φ50*100 |
| 9 | CBB65-450VAC-45μF | 2*4 or 2*2 Insert | φ50*100 |
| 10 | CBB65-450VAC-50μF | 2*4 or 2*2 Insert | φ50*125 |
| 11 | CBB65-450VAC-55μF | 2*4 or 2*2 Insert | φ50*125 |
| 12 | CBB65-450VAC-60μF | 2*4 or 2*2 Insert | φ50*125 |
| 13 | CBB65-450VAC-65μF | 2*4 or 2*2 Insert | φ55*125 |
| 14 | CBB65-450VAC-70μF | 2*4 or 2*2 Insert | φ60*125 |
| 15 | CBB65-450VAC-80μF | 2*4 or 2*2 Insert | φ60*125 |
| 16 | CBB65-450VAC-90μF | 2*4 or 2*2 Insert | φ60*125 |
| 17 | CBB65-450VAC-100μF | 2*4 or 2*2 Insert | φ63.5*125 |
Note: Other specifications,size and terminal outside table are negotiable
Description:
Air conditioner capacitor , oil capacitor, motor capacitor, IGBT capacitor, CBB65 capacitor,motor run capacitor, aluminum case capacitor ,anti-explosion capacitor ,inverter welding capacitor, fan capacitor, CBB61 capacitor.
The capacitor takes heavy-edge metallized Al/Zn film as electrodes and dielectric. The elements are tight winded by high-velocity winders and canned in aluminum cases. Refined castor oil is adopted as impregnation agent treated in vacuum and high temperature condition. Those make a more reliable performance and longer lifespan for a capacitor. Meanwhile the second generation of mechanical anti-explosion design is selected as blast-proof secure measure for our capacitors. The reliability is more affirmatively enhanced.
Applications:
Broadly applied to starting and running of AC single-phase motors at 50Hz(60Hz) frequency for family air conditioners and high power illuminators for the sake of power factor compensation.
Technical Specifications:
Standard:IEC 60252-1:2001
Technical features:
Climate type:40/70/21 or 40/85/21
Capacitance tolerance:± 5%
I.R:≥3000S(MΩ·µF)
Dielectric dissipation factor:tgδ≤0.002 (50Hz~100Hz)
Application requirements:
Altitude:≤2000m
Residual voltage while loading: less than 10% of rated voltage.
Allowed maximum voltage: less than 1.1 times of rated voltage
Permissible maximum current: less than 1.3 times of rated current.]
Dimensional specification (mm):
| Rated voltage(VAC) | Nominal capacitance(μF) | Size(mm) | |
| D | H | ||
| 200,250,370,400,440, 450,600,700,1200 | 3,4,5,7.5,10,12.5,15,17,20,22.5, 25,30,35,40,45,50,55,60,70,80,100, 25+5, 30+5, 35+5, 50+5, 60+5, 70+5, 80+5… | 40,45,50,55, 60,63.5, 52*32,71*45 | 60,65,70,75,80,85,90, 95,100,105,110,115, 120,125,135,138 |
Note:
1.Other capacitance and dimension serials can be specified in compliance with customer's request.
2,Terminal forms can be made in conformity to the requirements of agreements with customers.

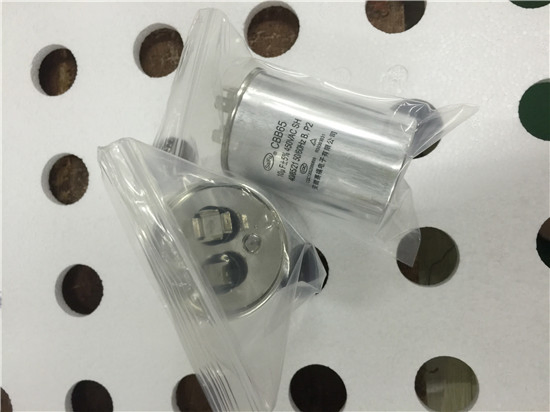

Packing&Shipment:

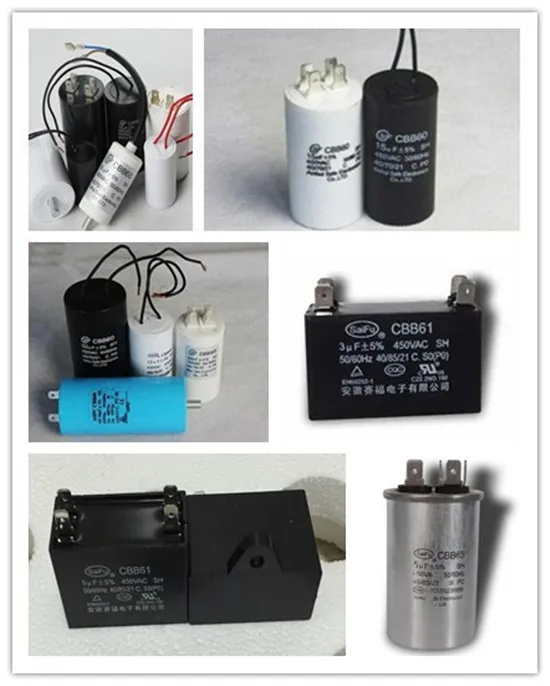

Our related product:
Our company:
Changzhou Andwin Refrigeration Equipment Co.,Ltd
Add- No 91 Hanjiang Road New District Changzhou Jiangsu China
main product:
Insulation Copper Tube;
Aluminum Tube;
Copper Tube;
Brass Pipe.
capacitor
Advanced One-Stop Purchasing Service-In Air-conditioning And Refrigeration Industry
Contact
Aimee Chen
