Asynchronous Motor Explosion Proof Motor Yb2
Production DescriptionYB355-450 series of flameproof three phase asynchronous motors for conform to GB3836.1-2000 of general requirements' offlameproof electrical equipment used in explosive gas environment and GB3836.2-2000 of "d" of flameproof electrical equipmentused in explosive ga......
Send Inquiry
Product Description
Production Description
YB355-450 series of flameproof three phase asynchronous motors for conform to GB3836.1-2000 of general requirements' of
flameproof electrical equipment used in explosive gas environment and GB3836.2-2000 of "d" of flameproof electrical equipment
used in explosive gas environment; and suitable for the places of coal mine where there is flammable gas whichcan form explosive
gas mixture with air. The flameproof marking: DI,DIIAT4,DIIBT4,DIICT4. This series of motors are mainly used in the silo of coal mine
and factories with grade IIA. IIB and IIC. Protection degree is IP44 or IP54, cooling way: IC411or IC511, Class insulation: F, mounting
type: IMB3,rated frequency: 50HZ, rated voltage: 6000V or 10000V.
YB range of frame sizes500 to 800 flame-proof high-voltage medium-sized three-phase induction motors are new products, whichm
are manufactured using the design and manufacturing techniques of explosion-proof high-voltage motors imported from
Forerunnersforeign company in Germany and being in combination with many years of our production experience.They have the
advantageof small volume light weight, advanced performance, small vibration, lower noise, safe and reliable operation and
convenient maintenance, etc.
| Type | YB |
| Power | 315~5000kw |
| Insulation | F / B, H/B |
| Voltage and frequency | 3kv 3.3kv 6kv 6.6kv 11kv 13.8kv 50/60hz |
| Speed | 3000/1500/1000/750/600 rpm |
| Mounitng | IMB3/IMV1 |
| Cooling and ventilation | IC411 / IC511 |
| Winding | 100% Copper Wire |
| Protection class | IP55 EXDIIBT4/CT4 |
| Vibration | vibration class A, vibration class B is available on request. |
| Quality assurance | ISO9001 |
| Site conditions | from -15°C t0 +40°C and altitude below 1000 meters |

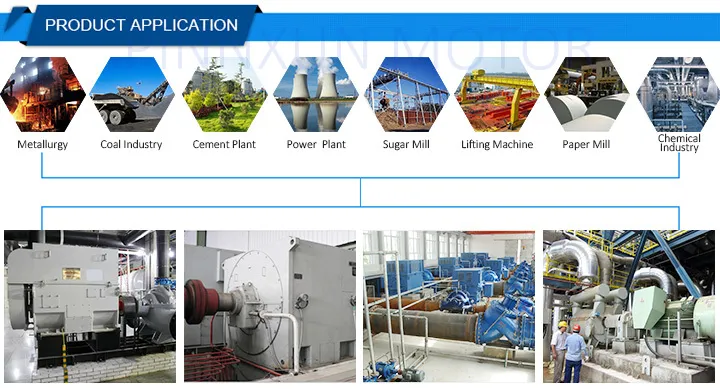

Products Application, Value Added Service
PinnxunMotor can provide a complete set of optimal solutions for various Applications,Bring innovation and valueadded to our
customers, At the same time, we can also formulate special solutions according to the different needed of customer

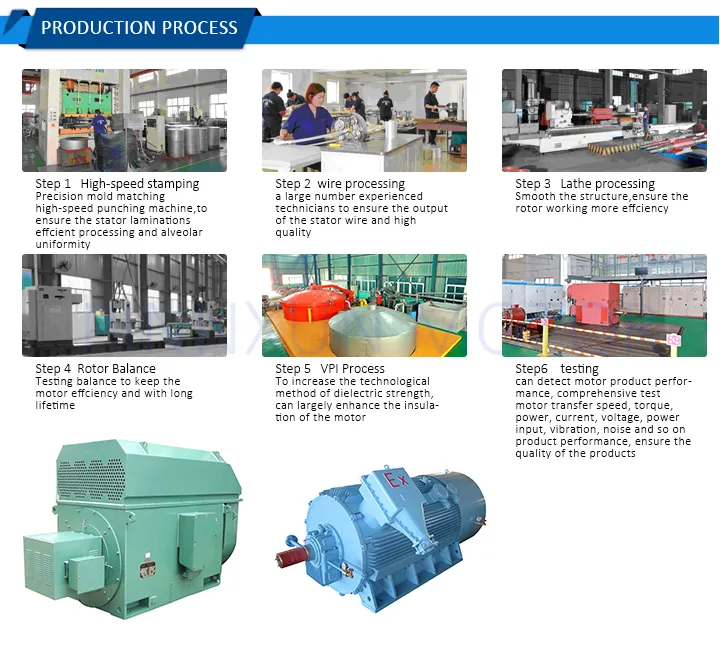

Product Process
Pinnxun always take good faith, responsibility, carefulness and excellence as our management philosophy, committedto providing
customers with superior quality products,every step in processs must be take full attention.
Qualification certification system
The key for 'Pinxing' long-terms cooperation is to continuously improve the quality of is products and service, By virtue of is
comprehensive process, quality management system and strict compliance with international mainstream standards.'Pinxing'
has established a quality management system that has passed ISO9001-2008 Quality management system certification
ISO14001 Environmental management system.
ISO9001-2008 Quality management system
ISO14001 Environmental management system
CE European Certification
IECEX Worldwide Ex Certification for Ex motors
ATEX European Ex Certification for Ex motors
EAC Russia GOST standard Ex certification for Ex motors
CQC China quality center energy conservation certification
Worldwide Marketing & Service Network
Global Perfect Marketing service network is one of Pinxing's advantage. we have 38 branches in china main city, 5 branches in
the Abroad ,Our business penetrates more than 60 countries and regions including South America, North America,Europe, Asia
Middle East and Africa, Giving us rapid reach capacity from sales, service, procurement and Transportation since inception, Pinxing
always uphold the development strategy of market globalization. we segment and position customersneeds and target market. our
products and service are widely used in global industry, and performance stable and safety.we custom different motors for different
industries
