Ang 120W 140W 100*100mm AC Right Angle Gear Motor
ANG 120w 140w 100*100mm AC Right Angle Gear MotorFeatures:1) Dimensions: 100*100mm2) Power: 120W 140W3) Voltage: 100-380V4) Speed: 1350rpm at 50Hz, 1550rpm at 60Hz5) Reduction ratio: 3~ 500KProduct photo:Specification for AC gear motor:Motor typeInduction / Brake / Speed adjusting / Reversible / Tor......
Send Inquiry
Product Description
ANG 120w 140w 100*100mm AC Right Angle Gear Motor
Features:
1) Dimensions: 100*100mm
2) Power: 120W 140W
3) Voltage: 100-380V
4) Speed: 1350rpm at 50Hz, 1550rpm at 60Hz
5) Reduction ratio: 3~ 500K

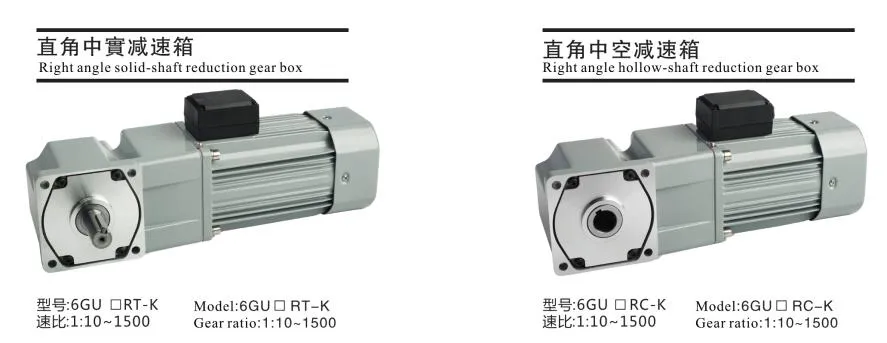

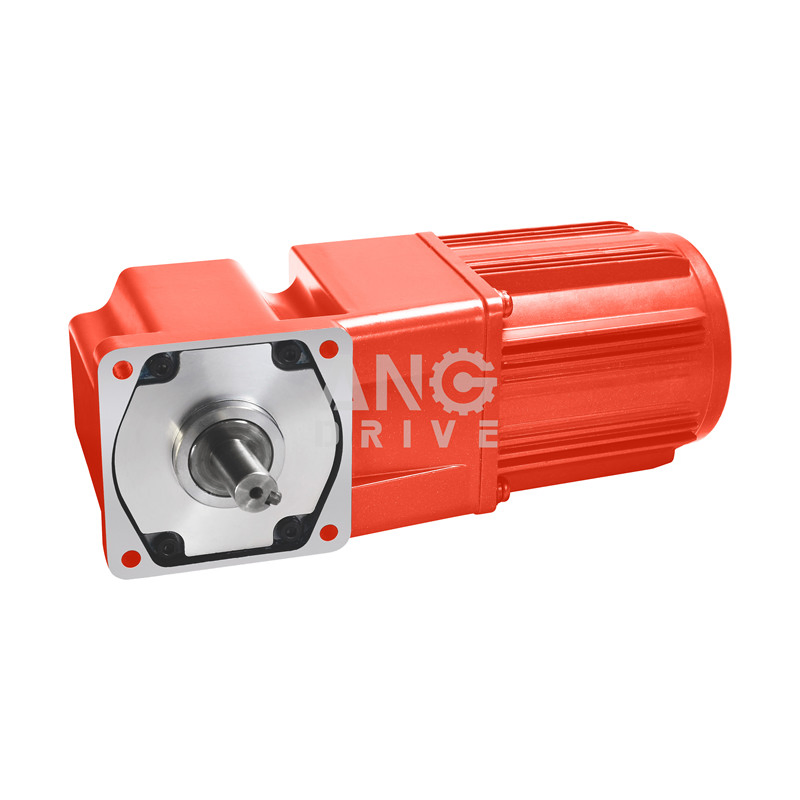

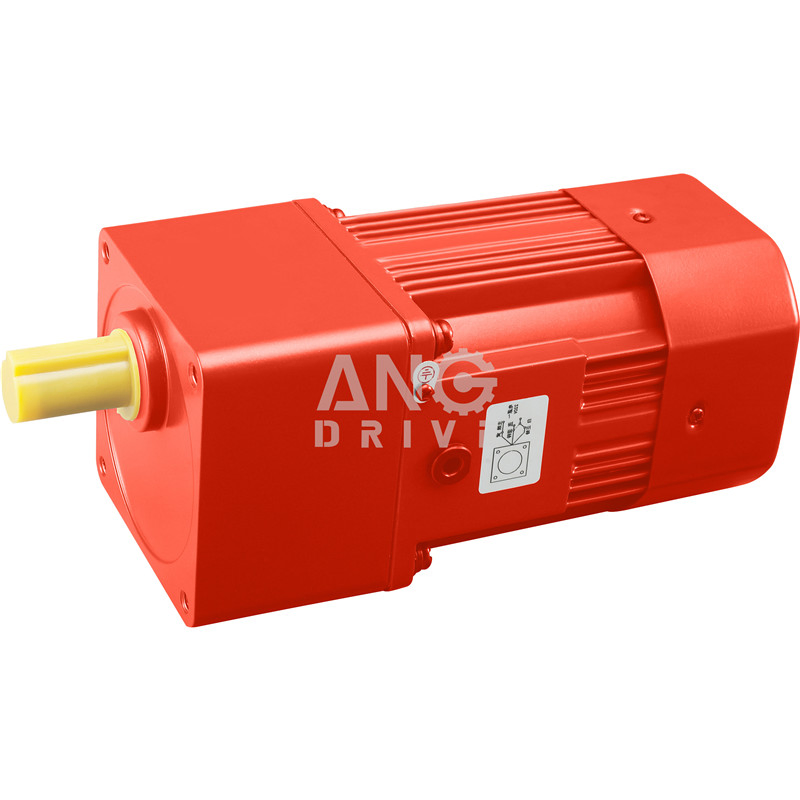

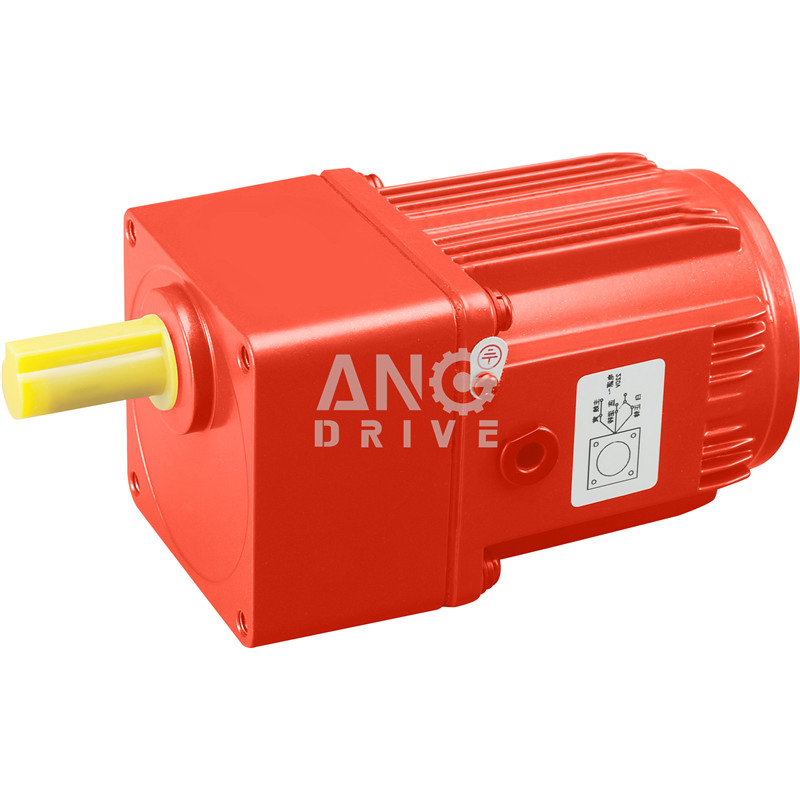

Product photo:
Specification for AC gear motor:
FAQ
Q: Can you make the gear motor with customization?
A: Yes, we can customize per your request, like power, voltage, speed, shaft size, wires, connectors, capacitors, terminal box, IP grade, etc.
Q: Do you provide samples?
A: Yes. Sample is available for testing.
Q: What is your MOQ?
A: It is 10pcs for the beginning of our business.
Q: What's your lead time?
A: Standard product need 5-30days, a bit longer for customized products.
Q: Do you provide technology support?
A: Yes. Our company have design and development team, we can provide technology support if you
need.
Q: How to ship to us?
A: It is available by air, or by sea, or by train.
Q: How to pay the money?
A: T/T and L/C is preferred, with different currency, including USD, EUR, RMB, etc.
Q: How can I know the product is suitable for me?
A: >1ST confirm drawing and specification >2nd test sample >3rd start mass production.
Q: Can I come to your company to visit?
A: Yes, you are welcome to visit us at any time.
Q: How shall we contact you?
A: You can send inquiry directly, and we will respond within 24 hours.
Features:
1) Dimensions: 100*100mm
2) Power: 120W 140W
3) Voltage: 100-380V
4) Speed: 1350rpm at 50Hz, 1550rpm at 60Hz
5) Reduction ratio: 3~ 500K
Product photo:

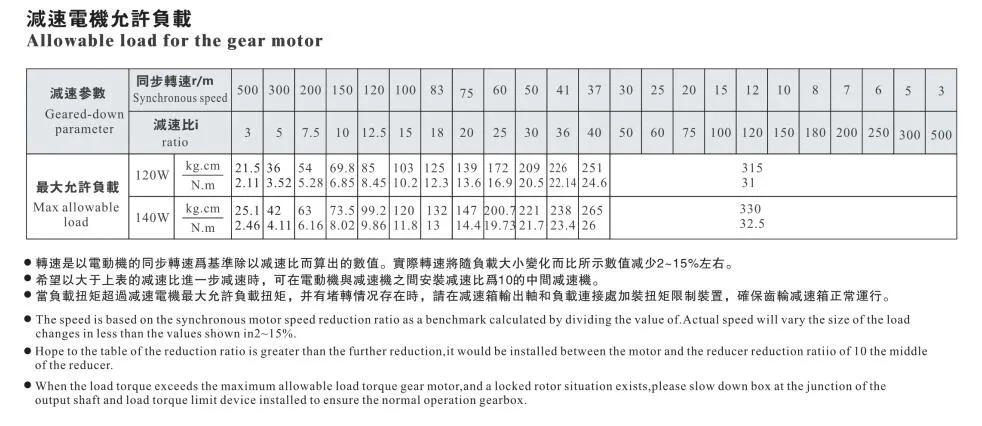

Specification for AC gear motor:
| Motor type | Induction / Brake / Speed adjusting / Reversible / Torque…Motor | ||
| Frame size | 60 mm / 70mm / 80mm / 90mm / 104mm / 110mm / 130mm... | ||
| Running speed | Motor 1200-3000 rpm, Gear Ratio 1/3 ~ 1/1800 | ||
| Output power | 6W / 10W / 15W / 25W / 40W / 60W / 90W / 120 W /140W / 2000W / 370W ......3700W | ||
| Output shaft | 8mm ~ 50mm; round shaft, D-cut shaft, key-way shaft, hollow shaft… | ||
| Voltage type | Single Phase 110V/220V; 50Hz/60Hz Three Phase 220V/380V; 50Hz/60Hz | ||
| Accessories | Brake / Connector / Terminal box / Capacitor / Controller… | ||
| Gearbox type | Parallel shaft | ||
| Right angle hollow worm shaft | Right angle bevel hollow shaft | Flat type hollow shaft | |
| Right angle solid worm shaft | Right angle bevel solid shaft | Flat type solid shaft | |
| Planetary center shaft | |||
FAQ
Q: Can you make the gear motor with customization?
A: Yes, we can customize per your request, like power, voltage, speed, shaft size, wires, connectors, capacitors, terminal box, IP grade, etc.
Q: Do you provide samples?
A: Yes. Sample is available for testing.
Q: What is your MOQ?
A: It is 10pcs for the beginning of our business.
Q: What's your lead time?
A: Standard product need 5-30days, a bit longer for customized products.
Q: Do you provide technology support?
A: Yes. Our company have design and development team, we can provide technology support if you
need.
Q: How to ship to us?
A: It is available by air, or by sea, or by train.
Q: How to pay the money?
A: T/T and L/C is preferred, with different currency, including USD, EUR, RMB, etc.
Q: How can I know the product is suitable for me?
A: >1ST confirm drawing and specification >2nd test sample >3rd start mass production.
Q: Can I come to your company to visit?
A: Yes, you are welcome to visit us at any time.
Q: How shall we contact you?
A: You can send inquiry directly, and we will respond within 24 hours.
