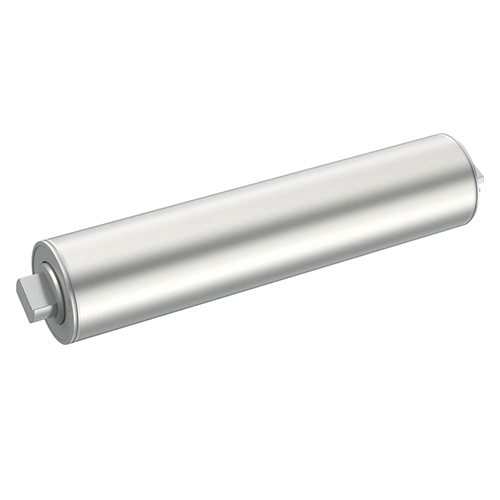

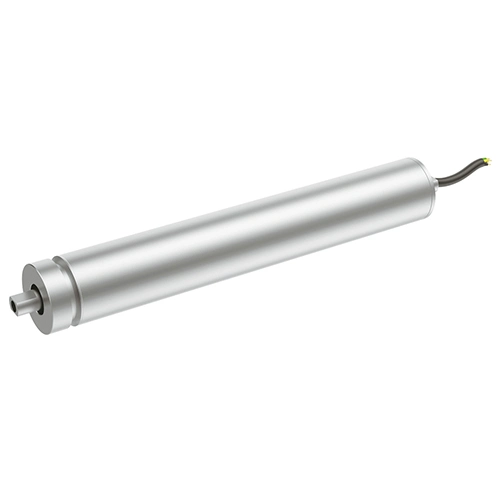

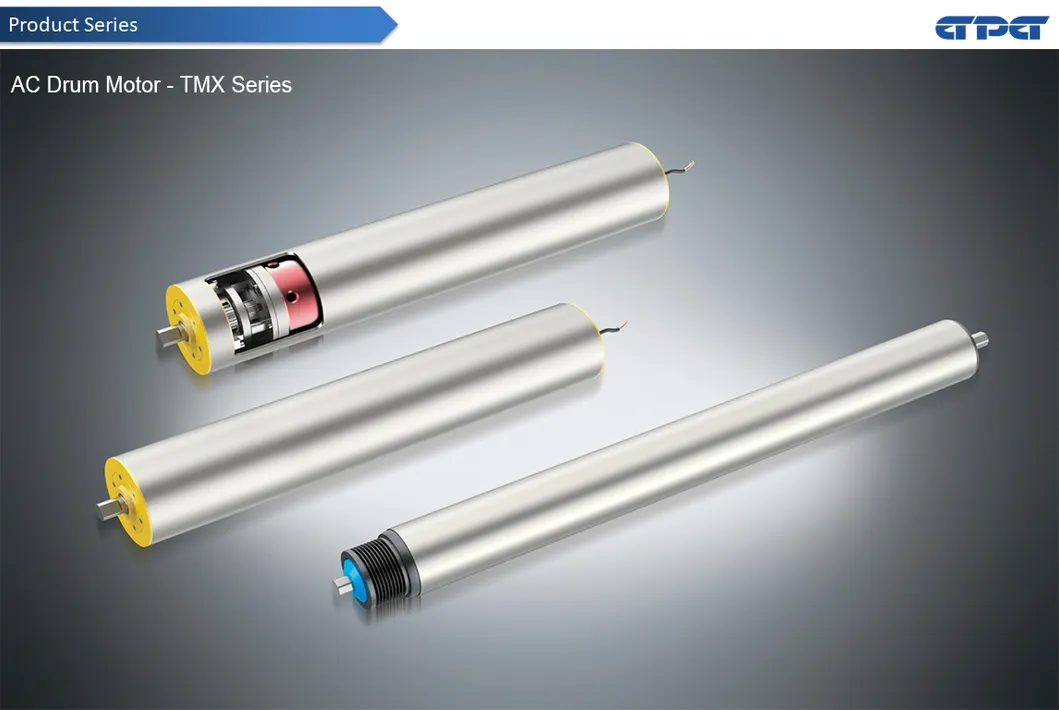

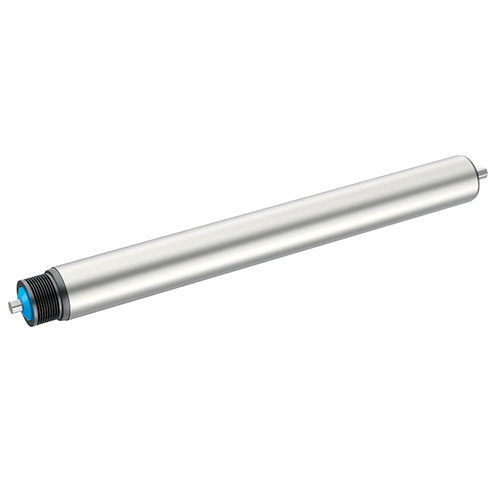

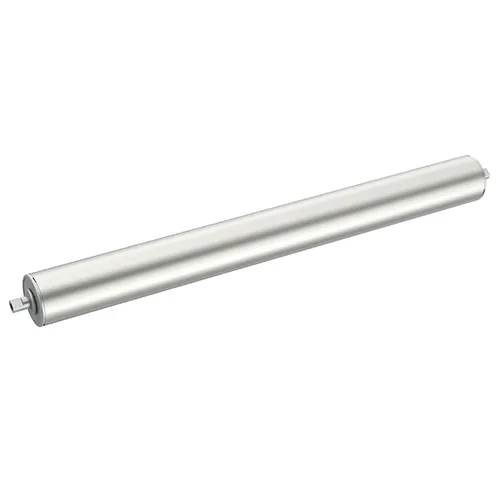

AC Drum Motor Tmx Series 138mm 370W
AC Drum MotorTMX138S3704P3601.08ATProduct CodeDrum CodeRated Power CapacityPhase Number and VoltagePole Number (AC)Drum LengthLinear SpeedDrum ShapeDrum MaterialTMX - Oil Cold Overload TypeDG - Natural Cooling TypeThe diameter of the drum body is indicated, such as 80, 113, 138, 165, 216, 320, etc.T......
Send Inquiry
Product Description
| AC Drum Motor | ||||||||
| TMX | 138 | S | 370 | 4P | 360 | 1.08 | A | T |
| Product Code | Drum Code | Rated Power Capacity | Phase Number and Voltage | Pole Number (AC) | Drum Length | Linear Speed | Drum Shape | Drum Material |
| TMX - Oil Cold Overload Type DG - Natural Cooling Type | The diameter of the drum body is indicated, such as 80, 113, 138, 165, 216, 320, etc. | The rated power of the motor, such as 100W~5500W, is omitted in model W, and the digital representation is used. For example, 1100W with 1100 | Stands for single-phase 110V C stands for single-phase 220V S stands for three-phase ac 220V S3 represents three-phase 380V S4 represents three-phase 440V V represents non-standard voltage (voltage must be indicated when V is present) | 2P is the second pole 4P is the fourth pole 6P is the six pole 8P is the eight-pole | The actual length of the cylinder is numbered and the unit mm is omitted. For example, 350mm with 350 | According to the actual linear velocity, the number of unit m/s is omitted. For example, 0.56m/s is expressed as 0.56 | A - Cylindrical Drum Body B - Drum Drum Body | The default T is carbon steel, not standard, other: B3 - stainless steel 304 X - surface galvanizing G - surface hard chromium J - package wear-resistant rubber |
| TMX138 Mechanical Parameters Of Three Phase Drum Motor | ||||||||
| Rated Power | Motor Series | Gear Box Series | Reduction Ratio i | Rated Speed | Rated Speed | Rated Torque | Traction Force | Min Tube Length |
| KW | RPM | m/s | Nm | N | mm | |||
| 0.37 | 4 | 2 | 9.36 | 150 | 1.08 | 21 | 304 | 360 |
| 11.86 | 118 | 0.85 | 26 | 377 | ||||
| 13.68 | 102 | 0.74 | 30 | 435 | ||||
| 17.78 | 79 | 0.57 | 39 | 565 | ||||
| 19.72 | 71 | 0.51 | 44 | 638 | ||||
| 24.98 | 56 | 0.4 | 55 | 797 | ||||
| 28.83 | 49 | 0.35 | 64 | 928 | ||||
| 37.48 | 37 | 0.27 | 83 | 1203 | ||||
| 47.04 | 30 | 0.22 | 104 | 1507 | ||||
Taibang Motor Industrial Group Co., Ltd. is a professional manufacturer which combined with series gear transmission products of design, manufacture, and sale promotion. • occupied more than 30,000 square meters, had more than 1000 workers, and more than 200 sets of advanced equipment,
• operated strictly according to ISO9000 Quality management system.
• provide you with more than just high-performance products, more industry users tailored package of application solutions,
• based on corporate issues, to provide users with the most suitable products, the most suitable solution.
• Lead customer innovation through the products and service, help the customer realize the maximum benefit.
• 1995: Taibang Company and the Ministry of Aerospace, Peking University,
and scientific research experts jointly established a micro-micro motor manufacturing company
• 2000: Taibang established a branch in Yueqing, Zhejiang
• 2005: Zhejiang Taibang Motor Industry Co., Ltd. established Dongguan Taiwan State-owned Industrial Co., Ltd.
• 2012: Established Shanghai Taibang Automobile Co., Ltd.
• 2014: Approved the new factory site of the second phase of the Yueqing National Economic Park in Zhejiang Province,
which is expected to be completed and put into operation in 2018
• 2018: A new 120,000 square meters automated production base
