750W 220V 2500PPR Motor Kit and CNC Torque Control Driver Hybrid Router Board Milling Controller Board USB
750W,220V Automatic Voltage Regulator Servo Motor Control for Cnc Router Servo Motor Kit PartsSZGH-08075DC is 750W servo motor ,optimizing design, compact, beautiful contour, long-term continuous working in rated working mode and economic type Packing list : 1) SZGH-08075DC 750w servo motor -1pcs......
Send Inquiry
Product Description

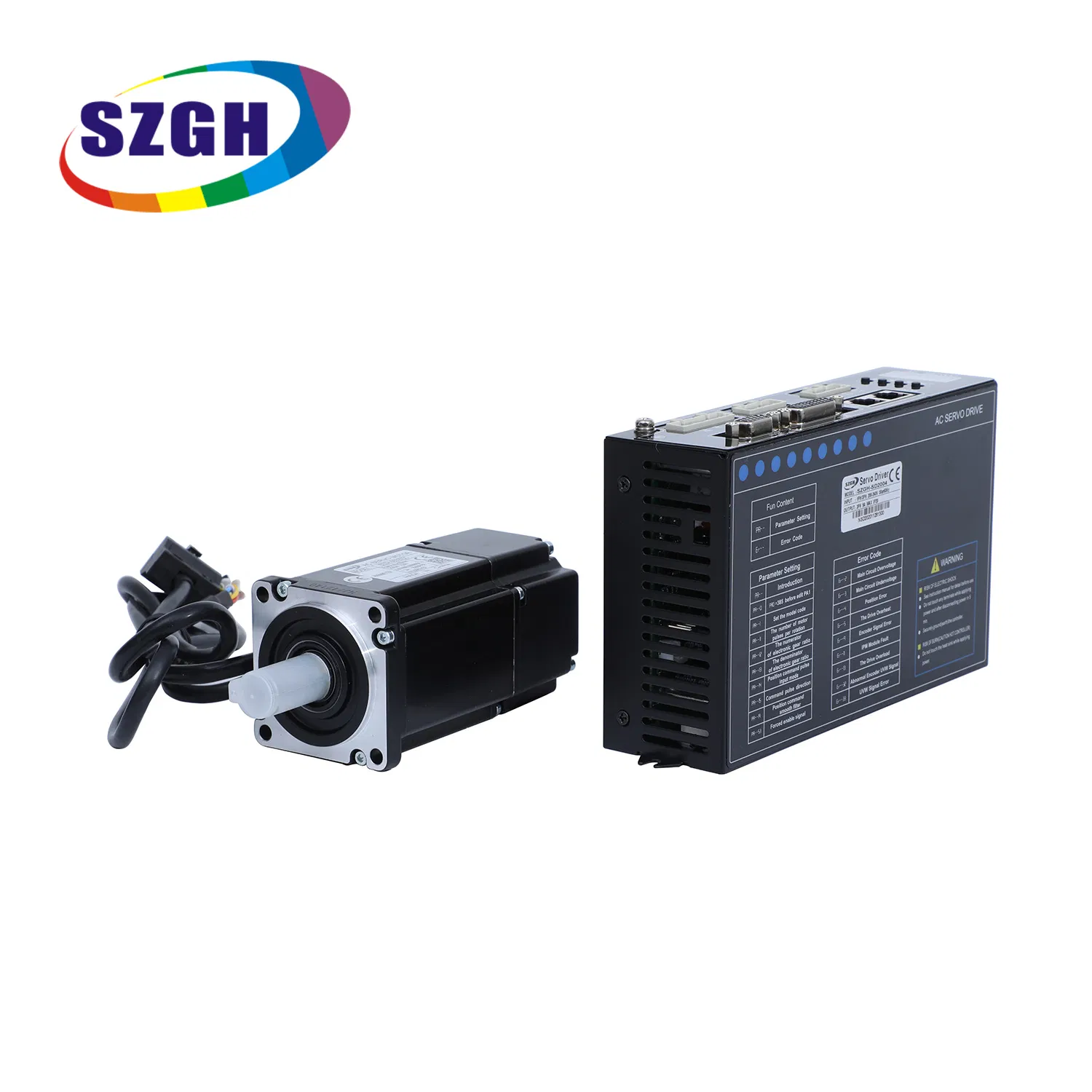

SZGH-08075DC is 750W servo motor ,optimizing design, compact, beautiful contour, long-term continuous working in rated working mode and economic type
Packing list :
1) SZGH-08075DC 750w servo motor -1pcs
2) SZGH-SD2010 220v servo driver - 1pcs
3) SZGH1MX-5M 5meter motor cables -1pcs
4) SZGH1EX-5M 5 meter encoder cables -1 pcs
5) Manual -1pcs
Pls tell us at first time when you need :
1) Brake motor
2) Absolutely encoder
3) long cables
4)Ethernet type
Application:Automation Machine,Robot Arm,Braided Belt Machine,Computeriaed Flat Knitting Machine,Embroidery Machine,AGV Car,Woodworking Engeaving Machine,CNC Machine...
| Power(W )Torque(N.m) Speed (rpm) | |||||
| Flange | Model | Power | Torque | Speed | Matched Servo Drive |
| 40mm | SZGH-04005D | 50 | 0.16 | 3000 | SZGH-SD2004 |
| SZGH-04010D | 100 | 0.32 | 3000 | ||
| 60mm | SZGH-06020DC | 200 | 0.6 | 3000 | |
| SZGH-06040DC | 400 | 1.3 | 3000 | ||
| SZGH-06060DC | 600 | 1.9 | 3000 | ||
| 80mm | SZGH-08040DC | 400 | 1.3 | 3000 | SZGH-SD2010 |
| SZGH-08075DC | 750 | 2.4 | 3000 | ||
| SZGH-08075BC | 750 | 3.5 | 2000 | ||
| SZGH-08100CC | 1000 | 4 | 2500 | ||
| 90mm | SZGH-09075DC | 750 | 2.4 | 3000 | |
| SZGH-09075BC | 750 | 3.5 | 2000 | ||
| SZGH-09100CC | 1000 | 4 | 2500 | ||
| 110mm | SZGH-11060DC | 600 | 2 | 3000 | SZGH-SD2026 |
| SZGH-11080DC | 800 | 4 | 2000 | ||
| SZGH11120DC | 1200 | 4 | 3000 | ||
| SZGH-11150DC | 1500 | 5 | 3000 | ||
| SZGH-11120BC | 1200 | 6 | 2000 | ||
| SZGH11180DC | 1800 | 6 | 3000 | ||
| 130mm | SZGH-13100CC | 1000 | 4 | 2500 | |
| SZGH-13130CC | 1300 | 5 | 2500 | ||
| SZGH-13150CC | 1500 | 6 | 2500 | ||
| SZGH-13200CC | 2000 | 77 | 2500 | SZGH-SD2026/ SZGH-SD4038(380V) | |
| SZGH-13100AC | 1000 | 10 | 1000 | ||
| SZGH-13150AC | 1500 | 10 | 1500 | ||
| SZGH-13230AC | 2300 | 15 | 1500 | ||
| SZGH-13260CC | 2600 | 10 | 2500 | ||
| SZGH-13380CC | 3800 | 15 | 2500 | ||
| 150mm | SZGH-15380CC | 3800 | 15 | 2500 | SZGH-4038 |
| SZGH-15300BC | 3000 | 15 | 2000 | ||
| SZGH-15360BC | 3600 | 18 | 2000 | ||
| SZGH-1S470BC | 4700 | 23 | 2000 | SZGH-4075 | |
| SZGH-15550BC | 5500 | 27 | 2000 | ||
| 180mm | SZGH-18270BC | 2700 | 17.2 | 1500 | |
| SZGH-18290BC | 2900 | 27 | 1000 | ||
| SZGH-18300CC | 3000 | 19 | 1500 | ||
| SZGH-18370BC | 3700 | 35 | 1000 | ||
| SZGH-18430AC | 4300 | 27 | 1500 | ||
| SZGH-18450CC | 4500 | 21.5 | 2000 | ||
| SZGH-18550CC | 5500 | 35 | 1500 | ||
| SZGH-18750CC | 7500 | 48 | 1500 | ||
| NOTE : The above models support 2500PPR incremental encoder | |||||
| SD Series | SD2004 | SD2010 | SD2026 | SD4038 | SD4075 |
| Output Power | 50W~600W | 400W~1kW | 600W~3. 8kW | 2kW~3 8KW | 3kW~75kW |
| Input Power | Single/Three Phase AC220V-15%~+10% | Three Phase 380V | |||
| 50/60Hz | |||||
| Control Mode | 0. Position Control: 1 Speed Control; 2: Torque Control: 3:Position/Speed Control; | ||||
| 4:PositionT orque Control: 5:SpeedTorque Control | |||||
| Protective | Over-speed/Over-voltageUnder-voltage Over-current/Overload/Encoder Error/ | ||||
| Function | Control Power Eror/ Position Offset Enor | ||||
| Monitor Function | SpeedPositionPulses /Offset/TorqueCurrent/Status. | ||||
| Digital Input | 1:Servo Enable: 2:Alam Reset: 3:CCW-Forbidden: 4:CW-Forbi dden: 5:Clear | ||||
| Position Ofiset; 6:Pulse Input Forbidden; 7:CCW Torque Limit: 8:CW Torque Limit | |||||
| Digital Output | Servo-Ready On/Alam/ Orientation EndBraker Control | ||||
| Energy Braking | Support buit in Extemal Resistor Braking | ||||
| DriveLoad | Less than 3 times of rotor inertia | ||||
| Display | 5 bits LED Indicator display: 4 Operate keys | ||||
| Communication | RS485 | ||||
| Position Control | Input Mode | 0: Pulse+Direction | |||
| 1:CCW/CW Pulse | |||||
| I . . 2: AB Phase Orthogonal Pulse | |||||
| 1 . 1 3:Inner Position Control | |||||
| Electic Ratio | Numerator of Electric Ratio: 1~32767 | ||||
| Denominator of Electric Ratio: 1~32767 | |||||
| 130mm | SZGH-13100CC/T | 1000 | 4 | 2500 | SZGH-SD2026 |
| SZGH-13130CC/T | 1300 | 5 | 2500 | SZGH-SD2026 | |
| SZGH-13150CC/T | 1500 | 6 | 2500 | SZGH-SD2026 | |
| SZGH-13200CC/T | 2000 | 77 | 2500 | SZGH-SD2026/ SZGH-SD4038(380V) | |
| SZGH-13100AC/T | 1000 | 10 | 1000 | ||
| SZGH-13150AC/T | 1500 | 10 | 1500 | ||
| SZGH-13230AC/T | 2300 | 15 | 1500 | ||
| SZGH-13260CC/T | 2600 | 10 | 2500 | ||
| SZGH-13380CC/T | 3800 | 15 | 2500 | ||
| 150mm | SZGH-15380CC/T | 3800 | 15 | 2500 | SZGH-4038 |
| SZGH-15300BC/T | 3000 | 15 | 2000 | ||
| SZGH-15360BC/T | 3600 | 18 | 2000 | ||
| SZGH-1S470BC/T | 4700 | 23 | 2000 | SZGH-4075 | |
| SZGH-15550BC/T | 5500 | 27 | 2000 | ||
| 180mm | SZGH-18270BC/T | 2700 | 17.2 | 1500 | |
| SZGH-18290BC/T | 2900 | 27 | 1000 | ||
| SZGH-18300CC/T | 3000 | 19 | 1500 | ||
| SZGH-18370BC/T | 3700 | 35 | 1000 | ||
| SZGH-18430AC/T | 4300 | 27 | 1500 | ||
| SZGH-18450CC/T | 4500 | 21.5 | 2000 | ||
| SZGH-18550CC/T | 5500 | 35 | 1500 | ||
| SZGH-18750CC/T | 7500 | 48 | 1500 | ||
| NOTE : The above models support 2500PPR incremental encoder & brake | |||||
2.Commercial packing: plastic bag+ foam boxes + carton
3.As the clients requirement
Delivery Detail: Normally ready goods and stock within 2- 5days
