Product Description
700 960 1440 Rpm 500W 600W 700W 750W 3000W 5Kw 9Kw 120Kw 300Kw 350Kw 415V 3-Phase 6 8 Pole Ac Induction Electric Motor
---------------------------------------------------------------------------------------------
---------------------------------------------------------------------------------------------

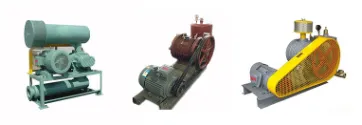

Applications: Can be applied in the machines where continuous duty is required, typical applications like
General Description

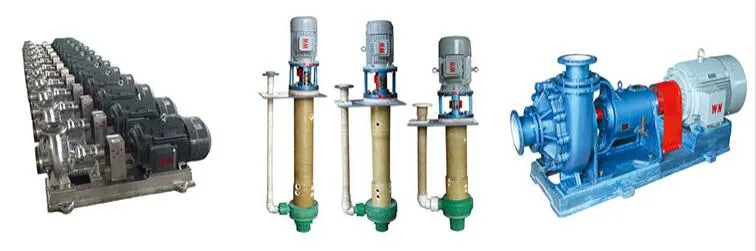

- Pumps
- Fans
- Cutting Machines
- Conveyors
- Machine Tools
- Food processing
- Lifting equipment
- Production industry
General Description
- Frame sizes: 63 to 355M/L
- Rated output: 0.12 to 375kW
- Voltage: 380V
- Rated Frequency: 50Hz or 60Hz
- Frequency Range: 50Hz(30-60Hz); 60Hz(40-70Hz)
- Poles: 2, 4, 6, 8,10
- Efficiency levels: IE3
- Duty Cycle: S1
- Enclosure: IC411 - TEFC
- Insulation class: F
- Degree of protection: IP54/55/56
- Service Factor: 1.0
- Regreasing system: Frame 250 and above
Features
Beautiful profile, high efficiency and energy saving (Level 3 of GB18613-2012), low noise, little vibration, reliable running.
Beautiful profile, high efficiency and energy saving (Level 3 of GB18613-2012), low noise, little vibration, reliable running.
Optional Features:
Electrical:
Insulation Class:H;
Thermal Protection: PTC Thermistor, Thermostat or PT100
Mechanical:
Others mountings
Protection Degree:IP56, IP65
Sealing:Lip seal, Oil seal
Space Heater, Double shaft ends
Drain Hole
Mounting Type:
Conventional mounting type and suitable frame size are given in following table(with "√")
| Frame | basic type | derived type | |||||||||||||
| B3 | B5 | B35 | V1 | V3 | V5 | V6 | B6 | B7 | B8 | V15 | V36 | B14 | B34 | V18 | |
| 63~112 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| 132~160 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | - | - | - |
| 180~280 | √ | √ | √ | √ | - | - | - | - | - | - | - | - | - | - | - |
| 315~355 | √ | - | √ | √ | - | - | - | - | - | - | - | - | - | - | - |
Site

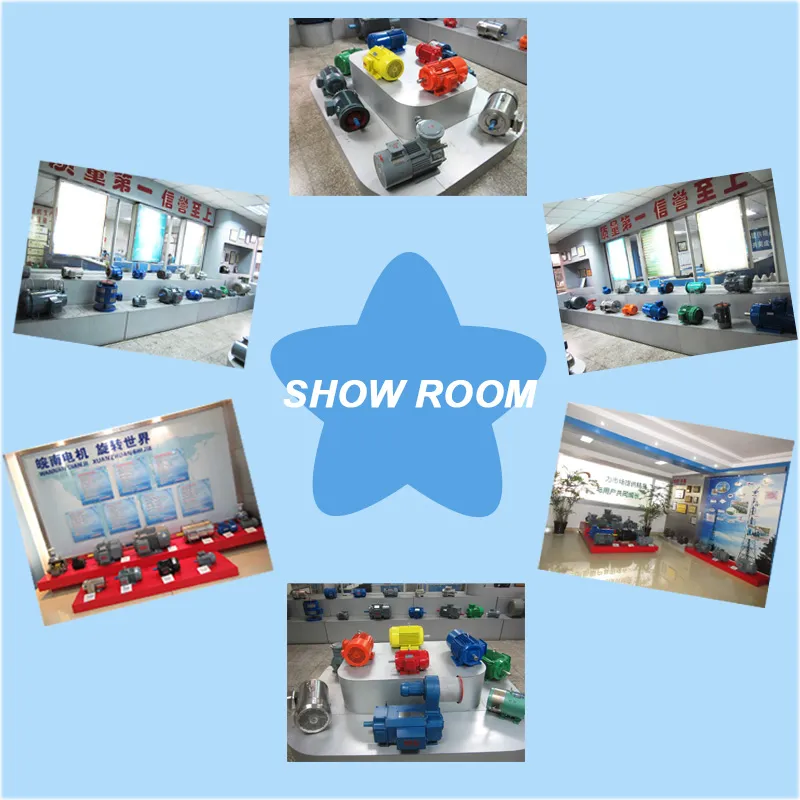

Show Roo
Certificates
Premium Service
Quality Control

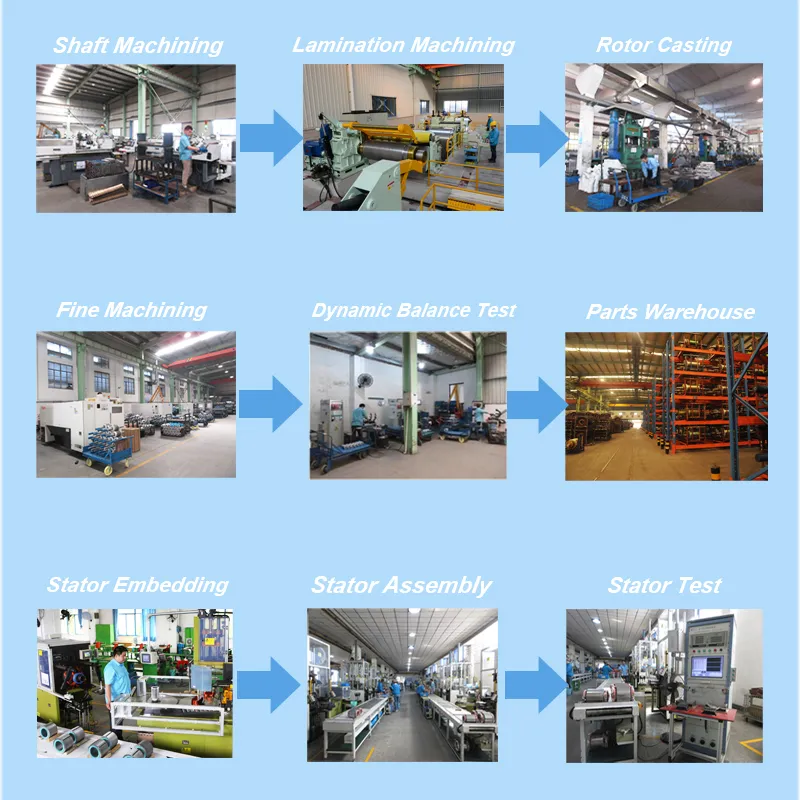

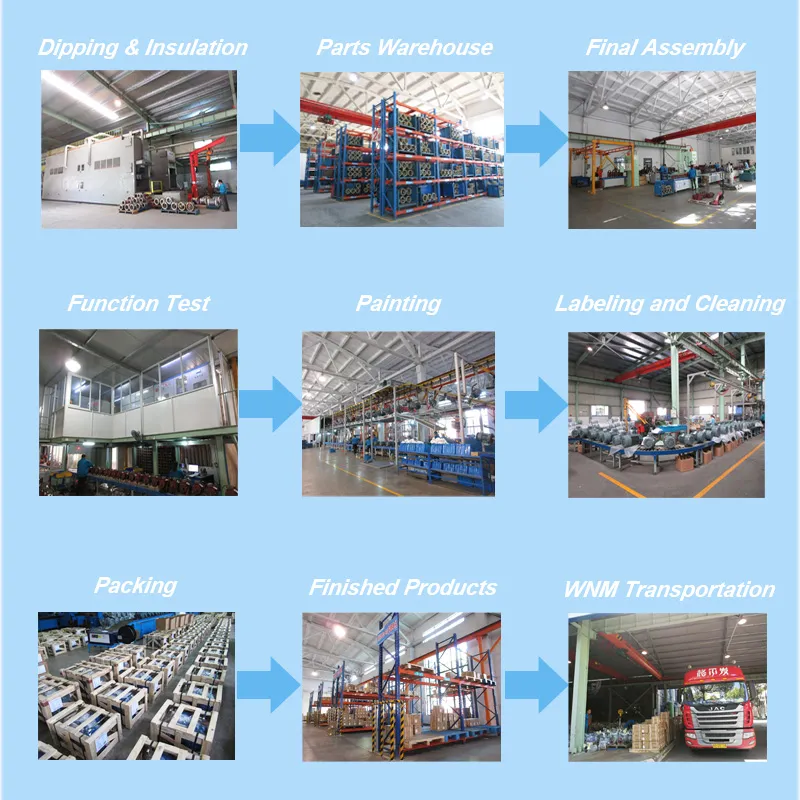

Wannan Motor Production Workshop and Flow Chart
