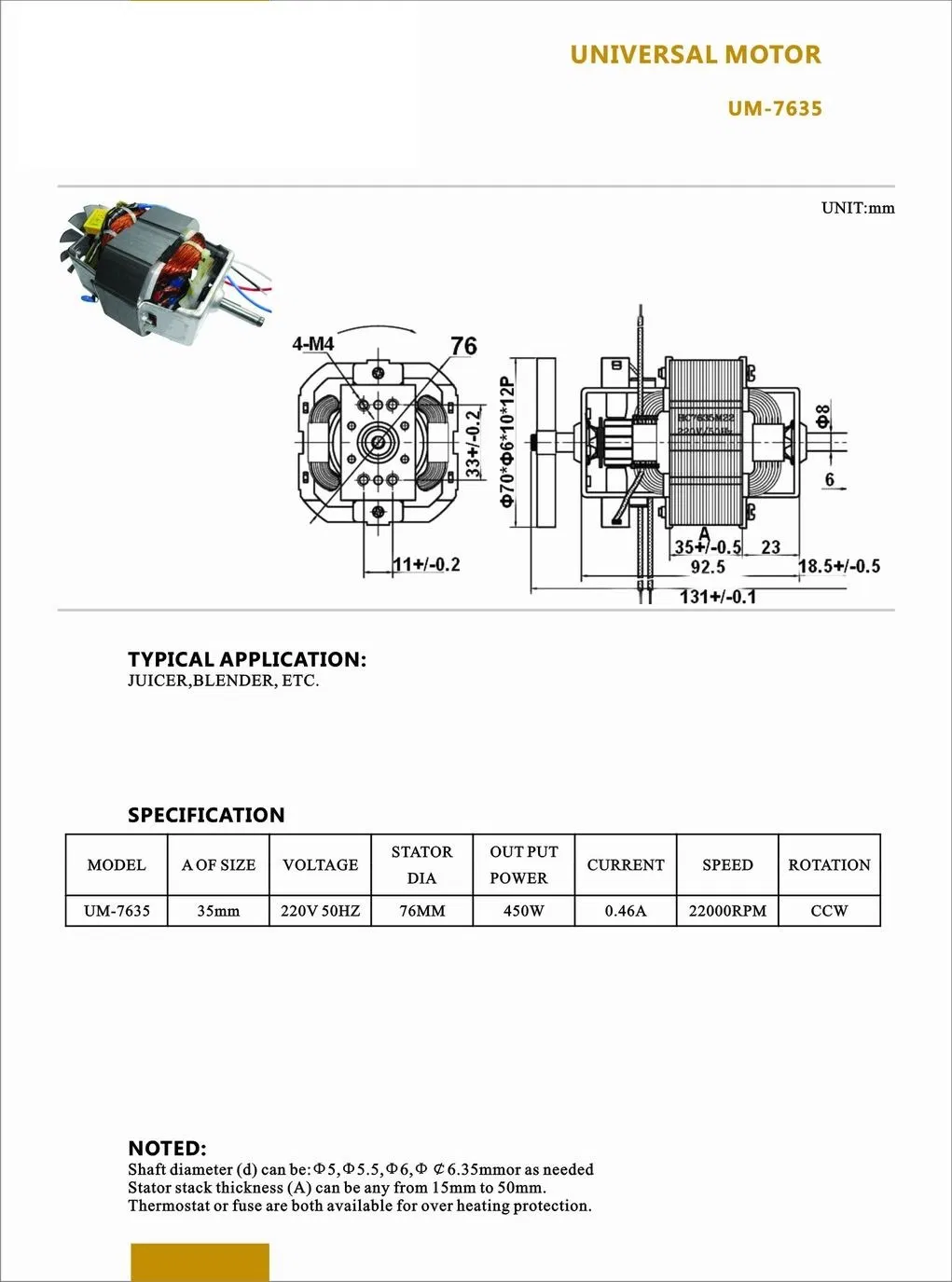

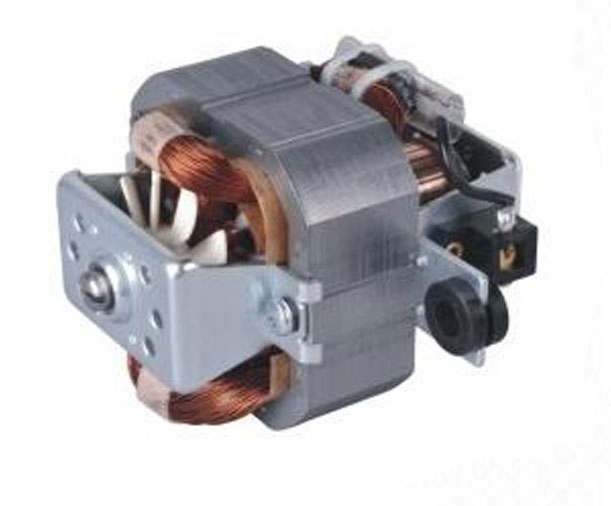

70 Series High Speed AC Electric Universal Motor for Cooking Machine/Table Blender/Cocktail Shaker/Coffee Blender
100W Electrical AC Universal Motor for Home ApplianceProduct characteristic 1. Stator size is optional2. Safe, reliable, low noise, good starting, long life3. Strong powerRated voltage 110~120V/220~240V-50/60HzTypical used: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, ......
Send Inquiry
Product Description

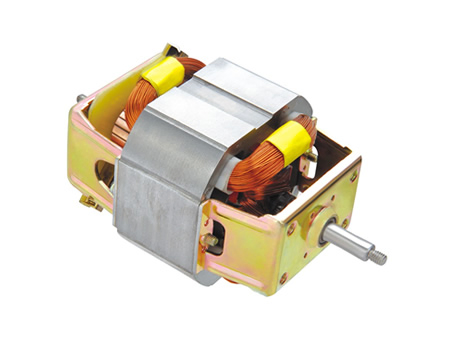

100W Electrical AC Universal Motor for Home Appliance
Product characteristic
1. Stator size is optional
2. Safe, reliable, low noise, good starting, long life
3. Strong power
Rated voltage 110~120V/220~240V-50/60Hz
Typical used:
Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
Thermal protector with one shot fuse or multi shot fuse
Hair dryer universal motor:
1. Rated: 100-240V, 50/60Hz
2. Rated speed: 6000-22000rpm
3. Input Power: 100-700W
4. Insulation class: A B F H
Rated voltage 100~240V-50/60Hz
Typical used: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
Packaging & Delivery
Specifications
1) 100% copper wire
2) Less noise
3) Competitive price
4) Many models, mainly HC95,HC88,HC76,HC63,HC54
Quick Detail
Name: universal motor Type: universal Motor
Place of Origin: China(Mainland) Model Number: HC7630
Voltage: 115V/230V
Packaging & Delivery
Packaging Detail: 18pcs/ctn
Delivery Detail: 30days
Specifications:
Our company FAQ for you

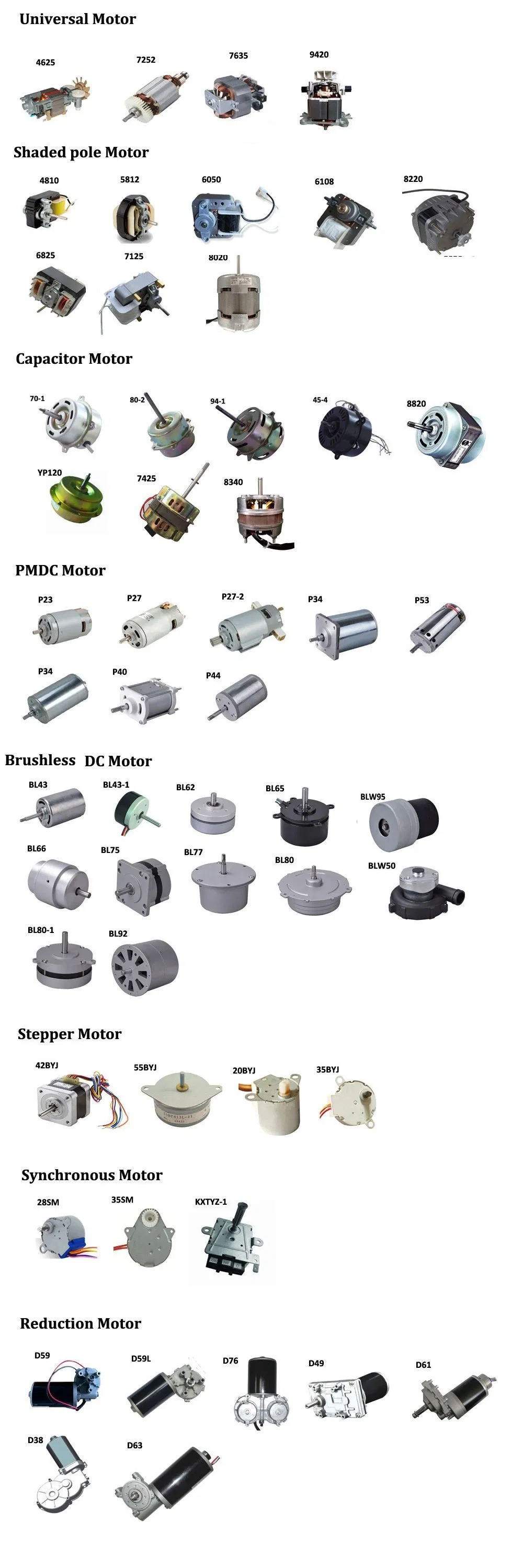

(1) Q: What kind motors you can provide?
A:For now,we mainly provide Kitchen Hood Motor,DC Motor,Gear Motor,Fan Motor Refrigerator Motor,Hair Dryer Motor Blender Motor Mixer Motor,
Shade Pole Motor,Capacitor Motor,BLDC Motor PMDC Motor,Synchronous Motor,Stepping Motor etc.
(2) Q: Is it possible to visit your factory
A: Sure. But please kindly keep us posted a few days in advance. We need to check our
schedule to see if we are available then.
(3) Q: Can I get some samples
A: It depends. If only a few samples for personal use or replacement, I am afraid it will
be difficult for us to provide, because all of our motors are custom made and no stock
available if there is no further needs. If just sample testing before the official order and
our MOQ, price and other terms are acceptable, we'd love to provide samples.
(4) Q: Is there a MOQ for your motors?
A: Yes. The MOQ is between 1000~10,000pcs for different models after sample approval.
But it's also okay for us to accept smaller lots like a few dozens, hundreds or thousands
For the initial 3 orders after sample approval.For samples, there is no MOQ requirement. But the less the better (like no more than 5pcs) on condition that the quantity is enough in case any changes needed after initial testing.
ABOUT US
Greatupmotor group was set up in 2006.we always focus on micro-motors for household electrical appliance and industry appliance since setting up.currently we have two professional micro-motor factories in China which severally located in Ningbo city and Foshan city.it has an area of 25,000 square meters plants and more than 300 employees, annual output is 3 million pcs and has 5 million pcs annual producing capacity.after several years development,we had built a great reputation in the market and got more and more customers' trust in the world.
We started from shaded pole motors at beginning, up to now,our product included of shaded pole motors,synchronous motors,stepping motors ,capacitor motors, BLDC motors, DC motors and compressors. Our product are widely used for making refrigerators, freezers, micro-wave ovens, air warmers, air exhausters, ventilators,ovens, air filter, massage machines and many other equipments.

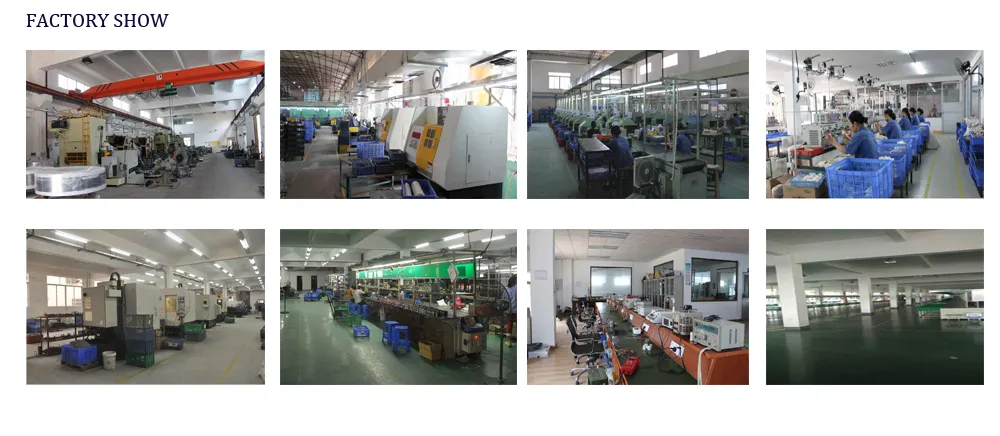

As a realiable quality guaranty,Greatupmotor has complete R&D departement,QC department,producing department,purchase department etc. has perfect producing equipment like Aluminum diecasting, Zinc diecasting, Sheet metal stamping, Plastic injection molding etc. also test/ detection device like multiplex temp measuring device, performance parameter inspection device, Phenol peptide solution pinhole tester,Anechoic room etc.
Endeavoring to provide the best product and service to customers,we always do the most effort to become an outstanding manufacturer of micro motors.
Greatupmotor is always willing to establish sincere business relationship with friends from all over the world.
Welcome contact with us!
Take Greatupmotor ,enjoy modern life!
Product characteristic
1. Stator size is optional
2. Safe, reliable, low noise, good starting, long life
3. Strong power
Rated voltage 110~120V/220~240V-50/60Hz
Typical used:
Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
Thermal protector with one shot fuse or multi shot fuse
Hair dryer universal motor:
1. Rated: 100-240V, 50/60Hz
2. Rated speed: 6000-22000rpm
3. Input Power: 100-700W
4. Insulation class: A B F H
Rated voltage 100~240V-50/60Hz
Typical used: Exhaust fan, air purifier, micro-oven, fan, induction cooker, refrigerator, pump, heater, hood oven, blwer, air conditioner, Heater machines, dehumidifiers
Packaging & Delivery
Packaging Details: | Polyfoam or carton seperator inside, strong export carton box outside, with pallet |
| Delivery Detail: | 30days |
Specifications
1) 100% copper wire
2) Less noise
3) Competitive price
4) Many models, mainly HC95,HC88,HC76,HC63,HC54
Quick Detail
Name: universal motor Type: universal Motor
Place of Origin: China(Mainland) Model Number: HC7630
Voltage: 115V/230V
Packaging & Delivery
Packaging Detail: 18pcs/ctn
Delivery Detail: 30days
Specifications:
Model | HC7630 | Model | HC7630 |
Item | Standard | Item | Standard |
Voltage | AC 230V | Voltage | AC 120V |
Frequency | 50Hz | Frequency | 60Hz |
In-put power | 400W | In-put power | 400W |
Noise level | ≤85dB(A) | Noise level | ≤85dB(A) |
No load current(A) | 0.40±10% | No load current(A) | 0.82±10% |
No load speed(RPM) | 20000±10% | No load speed(RPM) | 20000±10% |
No load power(W) | 100±10% | No load power(W) | 100±10% |
Hi-pot test | 1800V/0.5mA/1S | Hi-pot test | 1800V/0.5mA/1S |
Insulating grade | CLASS F | Insulating grade | CLASS F |
Heating protection | 130°C | Heating protection | 130°C |
Our company FAQ for you
(1) Q: What kind motors you can provide?
A:For now,we mainly provide Kitchen Hood Motor,DC Motor,Gear Motor,Fan Motor Refrigerator Motor,Hair Dryer Motor Blender Motor Mixer Motor,
Shade Pole Motor,Capacitor Motor,BLDC Motor PMDC Motor,Synchronous Motor,Stepping Motor etc.
(2) Q: Is it possible to visit your factory
A: Sure. But please kindly keep us posted a few days in advance. We need to check our
schedule to see if we are available then.
(3) Q: Can I get some samples
A: It depends. If only a few samples for personal use or replacement, I am afraid it will
be difficult for us to provide, because all of our motors are custom made and no stock
available if there is no further needs. If just sample testing before the official order and
our MOQ, price and other terms are acceptable, we'd love to provide samples.
(4) Q: Is there a MOQ for your motors?
A: Yes. The MOQ is between 1000~10,000pcs for different models after sample approval.
But it's also okay for us to accept smaller lots like a few dozens, hundreds or thousands
For the initial 3 orders after sample approval.For samples, there is no MOQ requirement. But the less the better (like no more than 5pcs) on condition that the quantity is enough in case any changes needed after initial testing.
ABOUT US
Greatupmotor group was set up in 2006.we always focus on micro-motors for household electrical appliance and industry appliance since setting up.currently we have two professional micro-motor factories in China which severally located in Ningbo city and Foshan city.it has an area of 25,000 square meters plants and more than 300 employees, annual output is 3 million pcs and has 5 million pcs annual producing capacity.after several years development,we had built a great reputation in the market and got more and more customers' trust in the world.
We started from shaded pole motors at beginning, up to now,our product included of shaded pole motors,synchronous motors,stepping motors ,capacitor motors, BLDC motors, DC motors and compressors. Our product are widely used for making refrigerators, freezers, micro-wave ovens, air warmers, air exhausters, ventilators,ovens, air filter, massage machines and many other equipments.
As a realiable quality guaranty,Greatupmotor has complete R&D departement,QC department,producing department,purchase department etc. has perfect producing equipment like Aluminum diecasting, Zinc diecasting, Sheet metal stamping, Plastic injection molding etc. also test/ detection device like multiplex temp measuring device, performance parameter inspection device, Phenol peptide solution pinhole tester,Anechoic room etc.
Endeavoring to provide the best product and service to customers,we always do the most effort to become an outstanding manufacturer of micro motors.
Greatupmotor is always willing to establish sincere business relationship with friends from all over the world.
Welcome contact with us!
Take Greatupmotor ,enjoy modern life!
