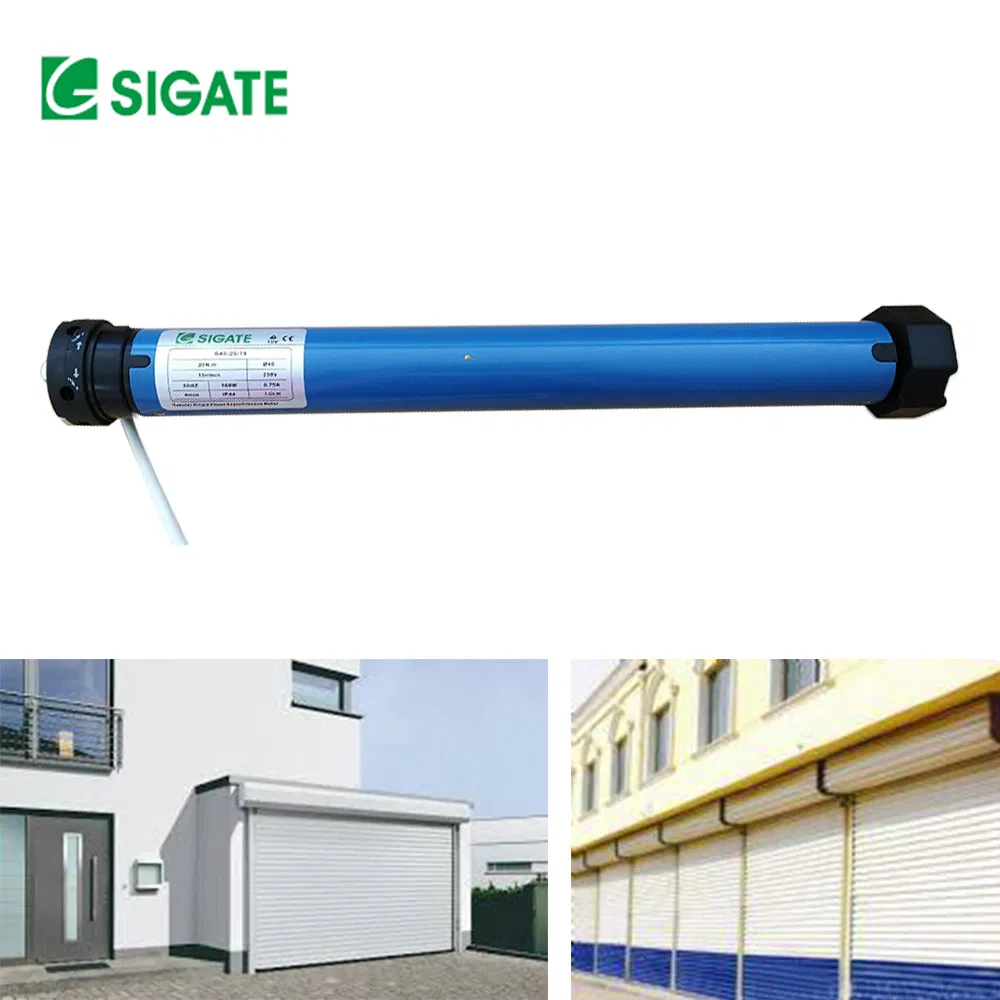

35mm/45mm/59mm/ 92mm Tubular Motor for Roller Shutter and Rolling Garage Door
Standard TypeMechanical Limited Switch Serie Ø45 For Octagonal Tube 60mm, Standard Type 45 Articolo Item Modello Model Rulli Oct tube Alimentazione Power Supply Coppia Torque ......
Send Inquiry
Product Description

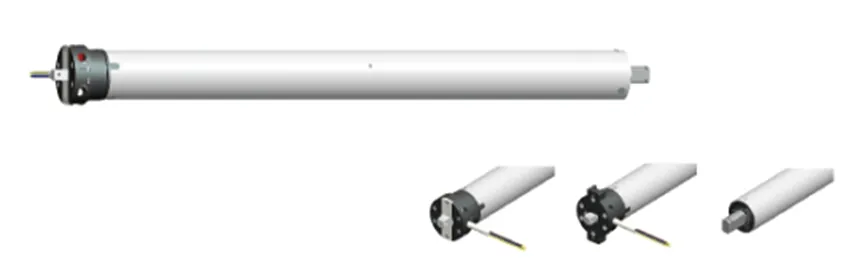

Standard Type
Mechanical Limited Switch

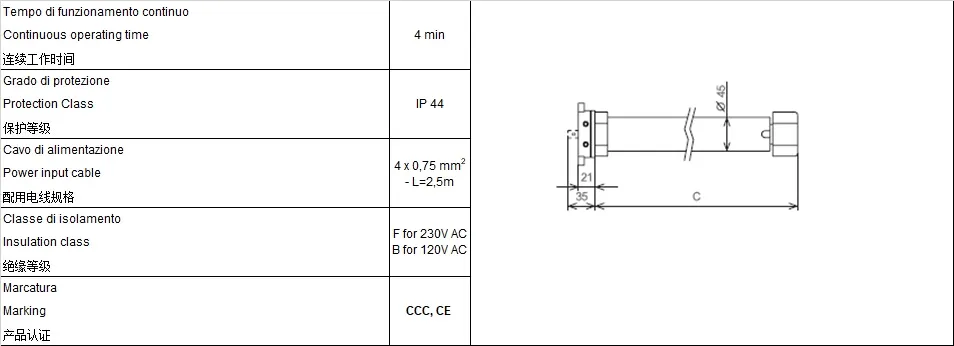

| Serie Ø45 For Octagonal Tube 60mm, Standard Type | |||||||||
| 45 | |||||||||
| Articolo Item | Modello Model | Rulli Oct tube | Alimentazione Power Supply | Coppia Torque | Velocita Speed | Potenza asscrbita Absorbed power | Corrente assorbita Current consumption | Giri finecorsa Limit Switch Rotation | Misura dimension |
| mm | Nm | giri/min. rpm | W | A | C (mm) | ||||
| 300.620.15 | S45-20/15 | 60 | 230V AC/50Hz | 20 | 15 | 156 | 0.68 | 22 | 424 |
| 300.630.15 | S45-30/15 | 60 | 230V AC/50Hz | 30 | 15 | 204 | 0.9 | 22 | 464 |
| 300.650.12 | S45-50/12 | 60 | 230V AC/50Hz | 50 | 12 | 220 | 1.00 | 22 | 630 |
| 300.660.10 | S45-60/10 | 60 | 230V AC/50Hz | 60 | 10 | 265 | 1.20 | 22 | 630 |
| Tubular motor Series | |||||
| Series | Model | Dia | applied | Type | Torque N.m |
| 35 Series | S35 | 35mm | Oct-40 | Standard+Mechanical Limited Switch | 6~10 |
| S35R | 35mm | Oct-40 | Remote Control + Mechanical Limited Switch | 6~10 | |
| S35E | 35mm | Oct-40 | Remote Control + ELectronic Limited Switch + Automatic Switch-off | 6~10 | |
| 45 Series | S45 | 45mm | Oct-60 | Standard+Mechanical Limited Switch | 20~60 |
| S45M | 45mm | Oct-60 | Manual Override + Mechanical Limited Switch | 20~60 | |
| S45R | 45mm | Oct-60 | Remote Control + Mechanical Limited Switch | 20~50 | |
| S45RM | 45mm | Oct-60 | Manual Override +Remote Control + Mechanical End Stroke | 20~50 | |
| S45E | 45mm | Oct-60 | Remote Control + ELectronic Limited Switch + Automatic Switch-off | 20~50 | |
| 59 Series | S59 | 59mm | Oct-70 | Standard+Mechanical Limited Switch | 60~150 |
| S59M | 59mm | Oct-70 | Manual Override + Mechanical Limited Switch | 60~150 | |
| S59R | 59mm | Oct-70 | Remote Control + Mechanical Limited Switch | 60~120 | |
| 92 Series | S92M | 92mm | / | Manual Override + Mechanical Limited Switch | 170-550 |
| We also accept customized requirements ! | |||||
< Our Advantages >Warranty & After-sales Service
We offer 5 years after-sales service compared to 1 year other suppliers can provide .
Excellent Quality

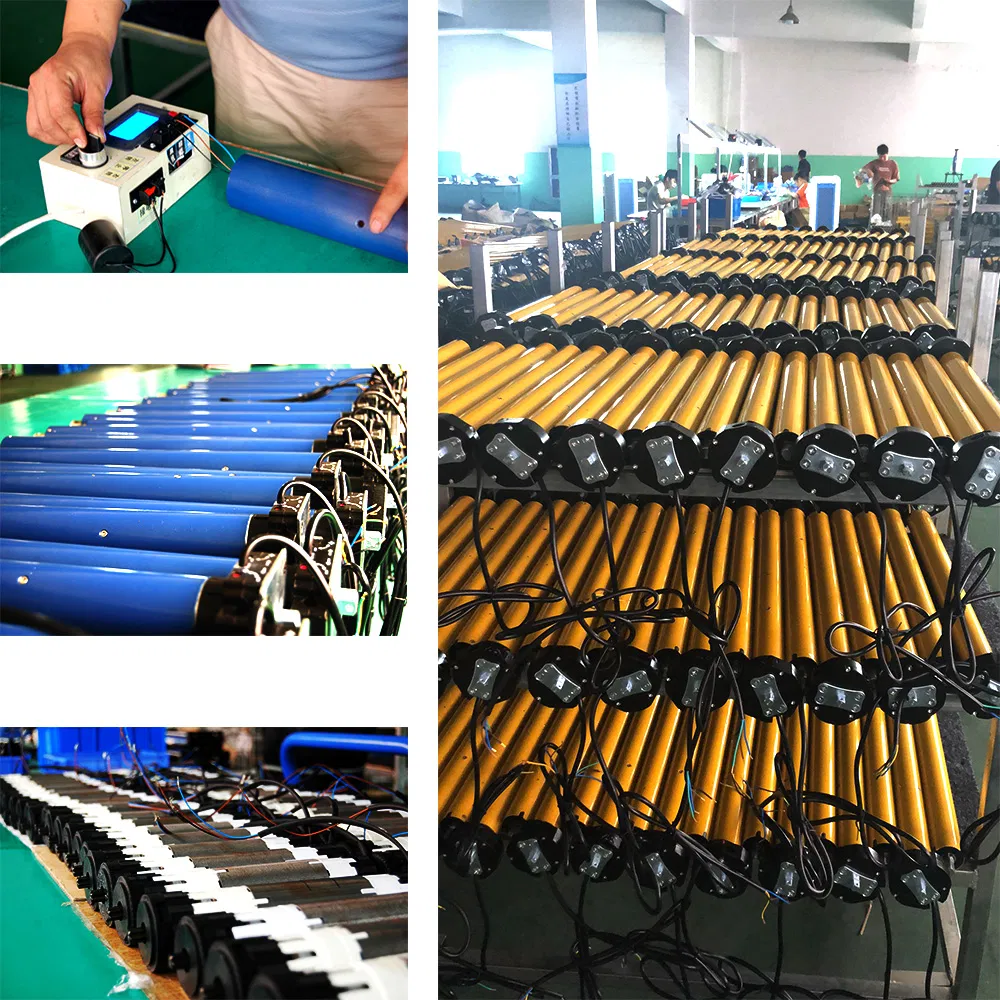

We have 100% motors inspected and tested before packing.
Professional service
We've been in roller shutter area for more than 15 years , and we specialize in tubular motor for window & door use .
< FAQ >
(1) Q: Do you offer OEM service?
A: Yes .
(2) Q: What is your payment term?
A: 30% T/T in advance, 70% balance when receiving B/L copy .Or irrevocable L/C.
(3) Q: What is your lead time?
A: Normally about 25-30 days upon deposit or original L/C.
(4) Q: What certificates do you have?
A: We have LVD, EMC. And we can apply for specific certificate for different country if it's necessary .
(5) Q: Is it possible to visit your factory?
A: Sure. We welcome you to come to china, just kindly keep us informed a few days in advance so that we can check our schedule to see if we are available then.
(6) Q: Can I get some samples?
A: Yes , but first we need to check the stock . Sample and delivery fee can be refund if an official order is placed .
(7) Q: Is there a MOQ for your motors?
A: Normally our MOQ is between 500-1000 pcs for different models after sample approval. Smaller orders please contact us to let us see if the stock is available .
Ningbo Sigate Motor Co.,Ltd is located in Ningbo and is a production base under SIGATE GROUP, specialized in production and quality control of full range of tubular motors, central motors, side motors, etc.
With 16-year experience in roller shutter field, we, SIGATE GROUP, can professionally provide you with :
1. Full range of roller shutter accessories.
2. Tubular motors 35mm, 45mm, 59mm and 92mm, Central Motors.
3. Insect Screens System and components.
4. Extruded Aluminum Profiles.
Company website:
http://nbsigate.en.made-in-china.com
Catalog download link:
http://nbsigate.en.made-in-china.com
Please feel free to send us a message , we'd be very glad to offer you our professional advice within 24 working hours.
