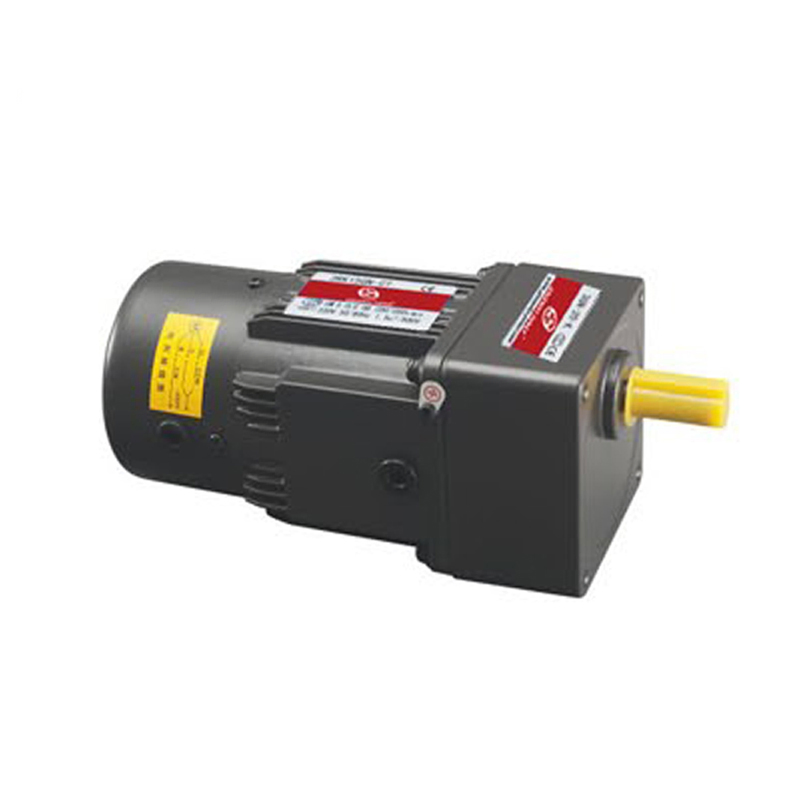

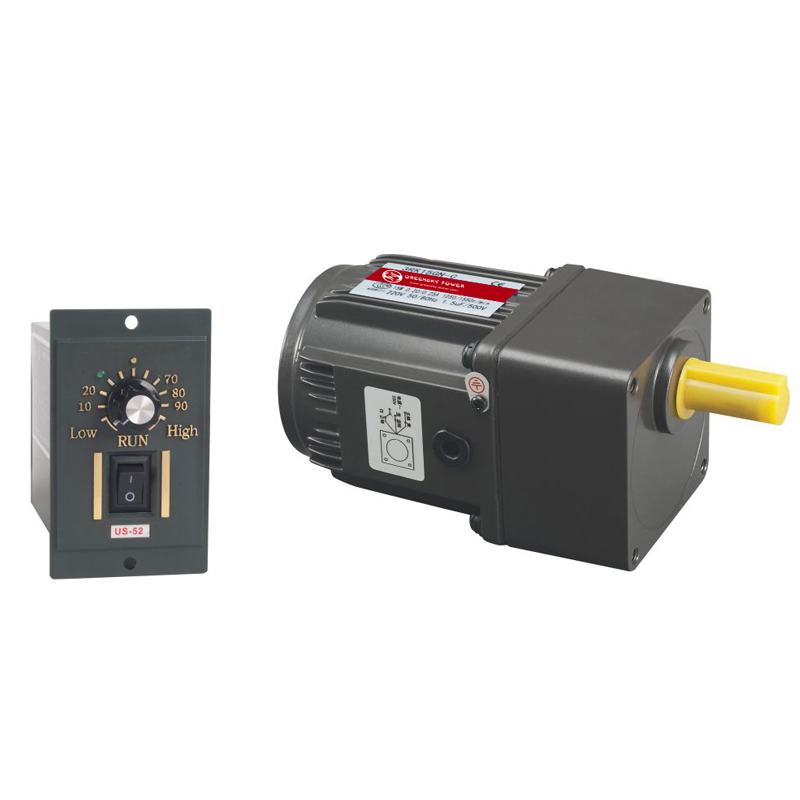

25W 30W 80mm Induction AC Gear Motor for Controller 1pH 3pH 120V 220V
Intruction1. Light weight, small dimension and simple installation;2. Wide speed ranges and high torque3. Low noise and high efficien4. Stable and safe,long lifetime;5. Multi-structure, various assembling methods;6. One-stop solution with speed controller, driver, encoder, brake and transformor avai......
Send Inquiry
Product Description
Intruction
1. Light weight, small dimension and simple installation;
2. Wide speed ranges and high torque
3. Low noise and high efficien
4. Stable and safe,long lifetime;
5. Multi-structure, various assembling methods;
6. One-stop solution with speed controller, driver, encoder, brake and transformor available.
Specification
Allowable load for the gear motor
| Motor Model | Specs | Output power | Voltage | Frequency | Current | Starting Torque | Rated Torque | Rated Speed | Capacitor/Ve |
| W | V | Hz | A | mN.m | mN.m | r/min | μF/VAC | ||
| GS4IK25GN-C GS4IK25A-C | Induction | 25 | 1-phase 220 | 50 | 0.22 | 231 | 185 | 1250 | 1.5/450 |
| 60 | 0.21 | 192 | 154 | 1550 | 1.5/450 | ||||
| GS4RK25GN-C GS4RK25A-C | Reversible | 50 | 0.24 | 231 | 185 | 1250 | 2/450 | ||
| 60 | 0.26 | 192 | 154 | 1550 | 2/450 | ||||
| GS4IK25GN-A GS5IK40A-A | Induction | 25 | 1-phase 110 | 50 | 0.48 | 231 | 185 | 1250 | 6/250 |
| 60 | 0.46 | 192 | 154 | 1550 | 6/250 | ||||
| GS4RK25GN-A GS4RK25A-A | Reversible | 50 | 0.50 | 231 | 185 | 1250 | 8/250 | ||
| 60 | 0.56 | 192 | 154 | 1550 | 8/250 | ||||
| GS4IK25GN-U GS4IK25A-U | -- | 25 | 3-phase 380 | 50 | 0.14 | 231 | 185 | 1250 | -- |
| 60 | 0.12 | 192 | 154 | 1550 | -- | ||||
| GS4IK25GN-S GS4IK25A-S | -- | 25 | 3-phase 220 | 50 | 0.24 | 231 | 185 | 1250 | -- |
| 60 | 0.225 | 192 | 154 | 1550 | -- | ||||
| GS4IK30GN-C GS4IK30A-C | Induction | 30 | 1-phase 220 | 50 | 0.28 | 275 | 220 | 1250 | 2.2/450 |
| 60 | 0.30 | 231 | 185 | 1550 | 2.2/450 | ||||
| GS4RK30GN-C GS4RK30A-C | Reversible | 50 | 0.30 | 275 | 220 | 1250 | 2.5/450 | ||
| 60 | 0.32 | 231 | 185 | 1550 | 2.5/450 | ||||
| GS4IK30GN-A GS5IK30A-A | Induction | 30 | 1-phase 110 | 50 | 0.58 | 275 | 220 | 1250 | 8/250 |
| 60 | 0.60 | 231 | 185 | 1550 | 8/250 | ||||
| GS4RK30GN-A GS4RK30A-A | Reversible | 50 | 0.60 | 275 | 220 | 1250 | 10/250 | ||
| 60 | 0.65 | 231 | 185 | 1550 | 10/250 |
Allowable load for the gear motor
| Geared-down parameter | Sycchronous speed r/min | 500 | 300 | 250 | 200 | 150 | 120 | 100 | 83 | 75 | 60 | 50 | 40 | 35 | 30 | 25 | 20 | 15 | 12 | 10 | 8 | 7 | 6 | 5 | |
| Ratio i | 3 | 5 | 6 | 7.5 | 10 | 12.5 | 15 | 18 | 20 | 25 | 30 | 36 | 40 | 50 | 60 | 75 | 100 | 120 | 150 | 180 | 200 | 250 | 300 | ||
| Max allowable load | 25W | N.m | 0.45 | 0.79 | 0.93 | 1.18 | 1.55 | 1.86 | 2.25 | 2.78 | 3.1 | 3.43 | 4.12 | 5.01 | 5.57 | 6.18 | 7.52 | 7.84 | |||||||
| 30W | N.m | 0.56 | 0.8 | 1.1 | 1.39 | 1.85 | 2.32 | 2.78 | 3.34 | 3.7 | 4.17 | 5.01 | 6.01 | 6.68 | 6.5 | 7.84 | |||||||||
If this model is not what you want, please freely tell us about your requirement. We will provide you with a suitable motor solution and price soon.

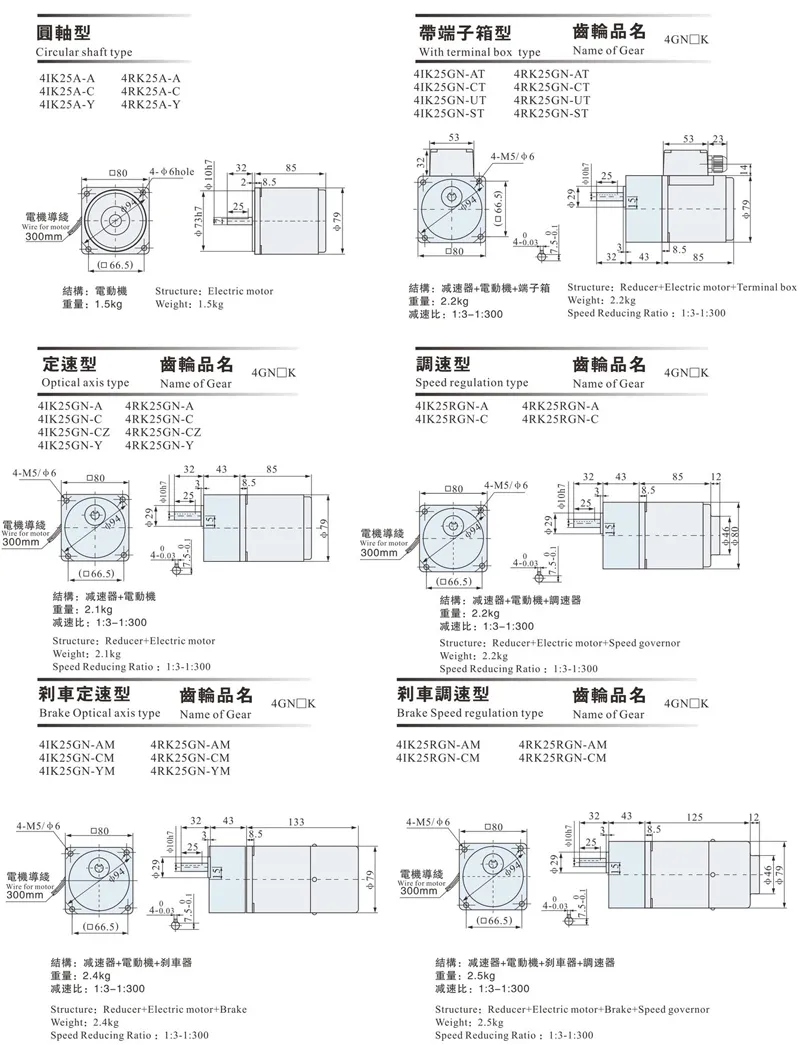

Dimensional drawing

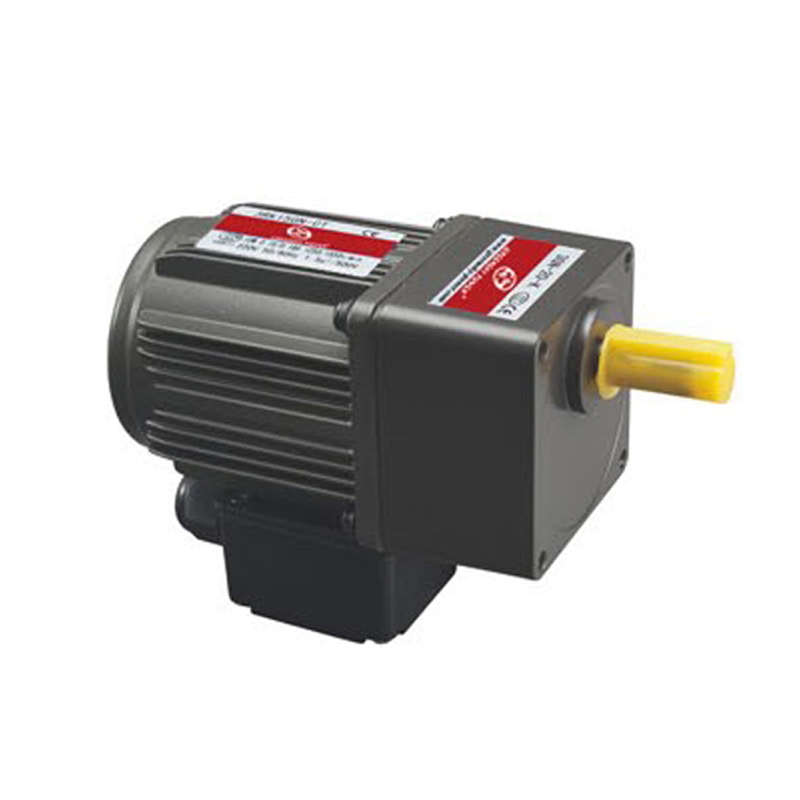

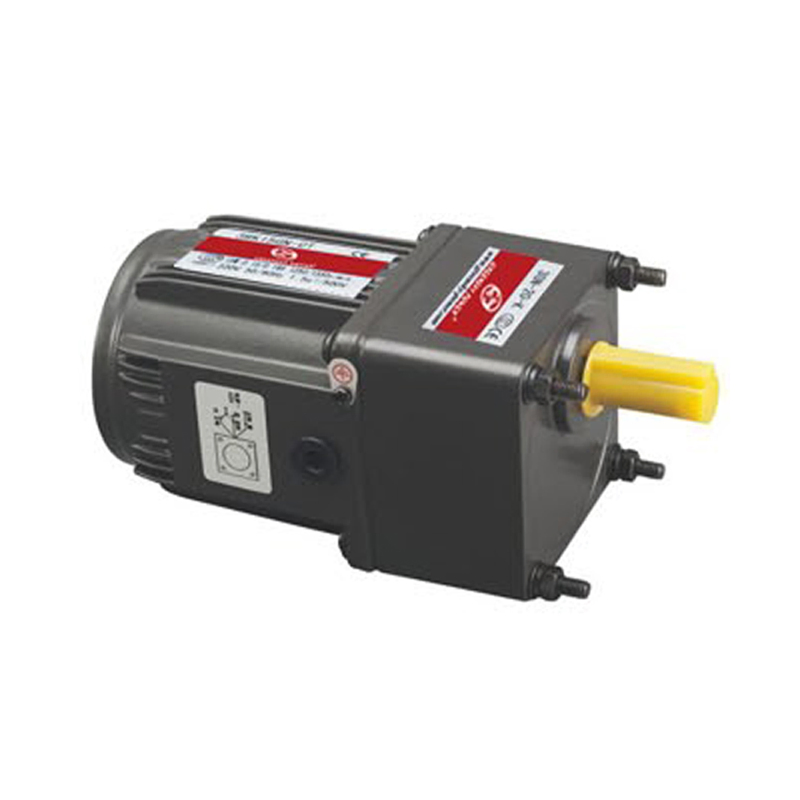

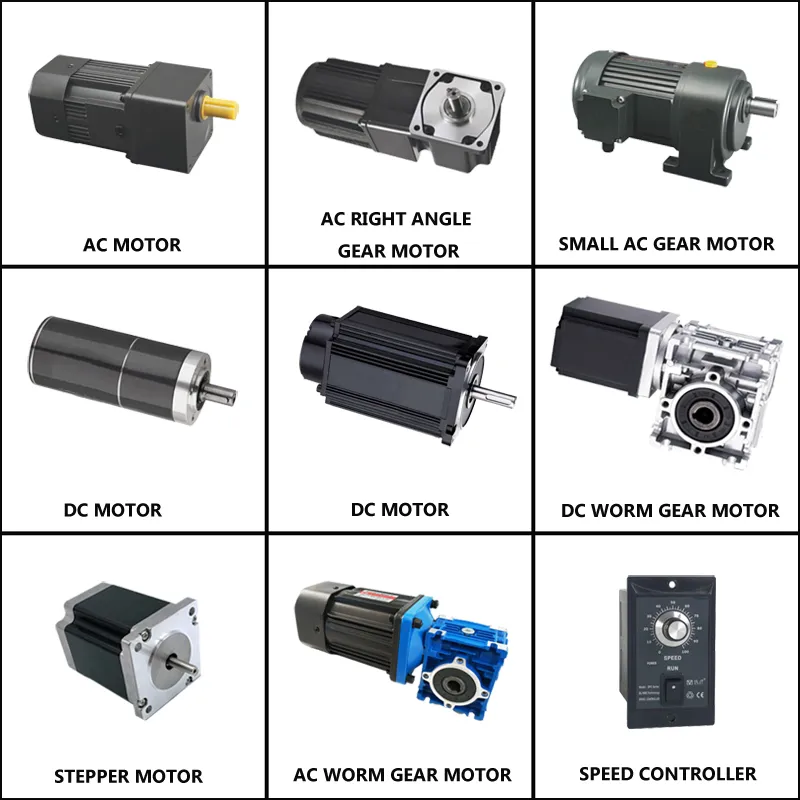

Similar Product Pictures
Packing & Delivery
Certifications

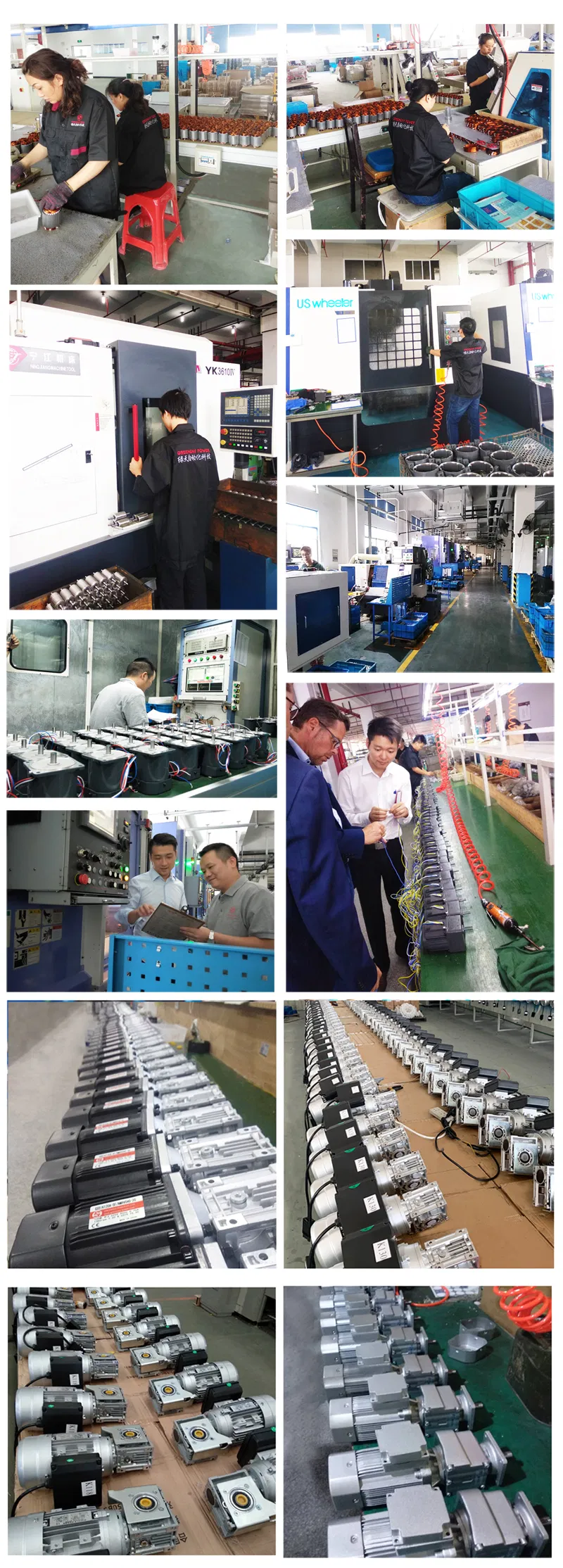

Company Overview
