Product Description

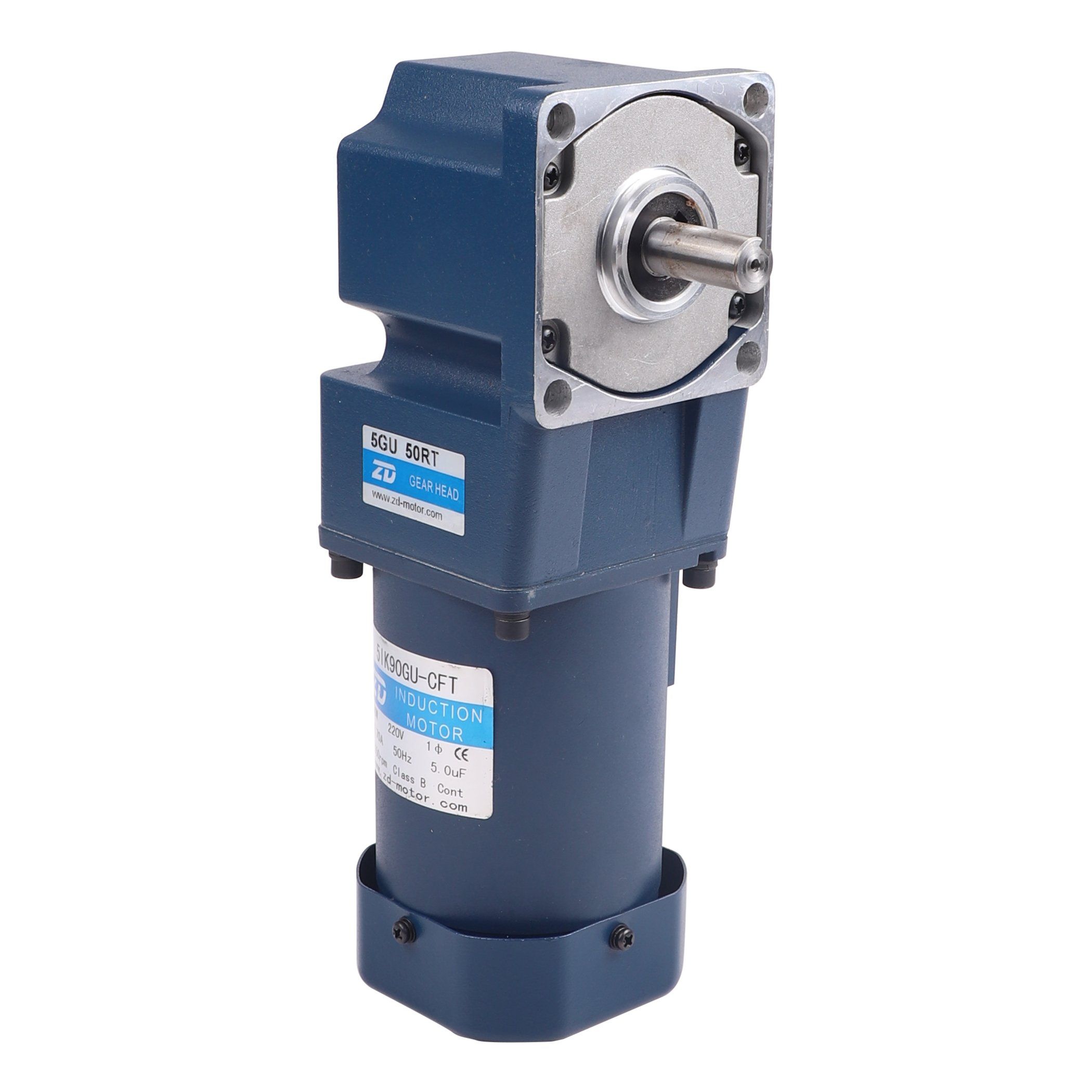

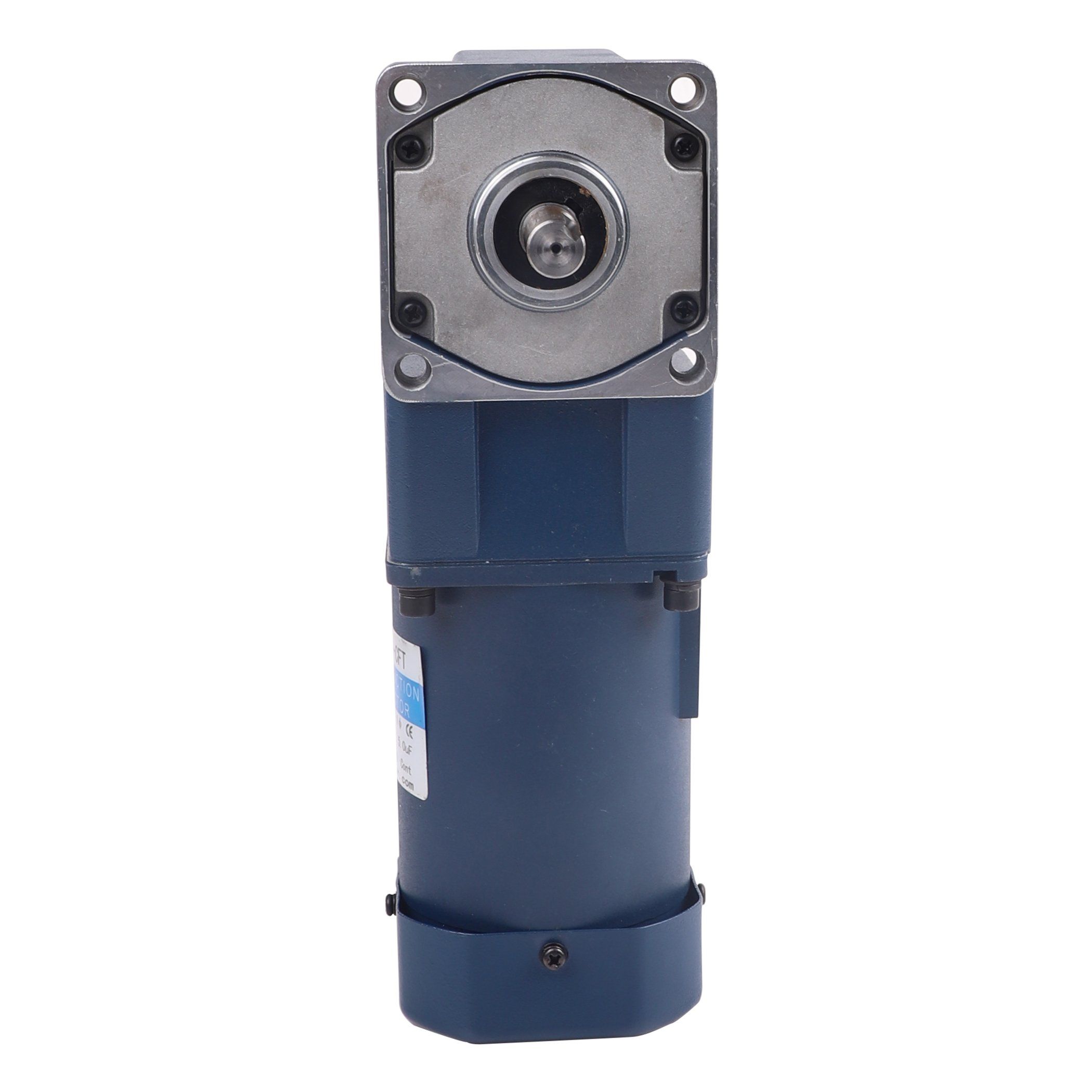

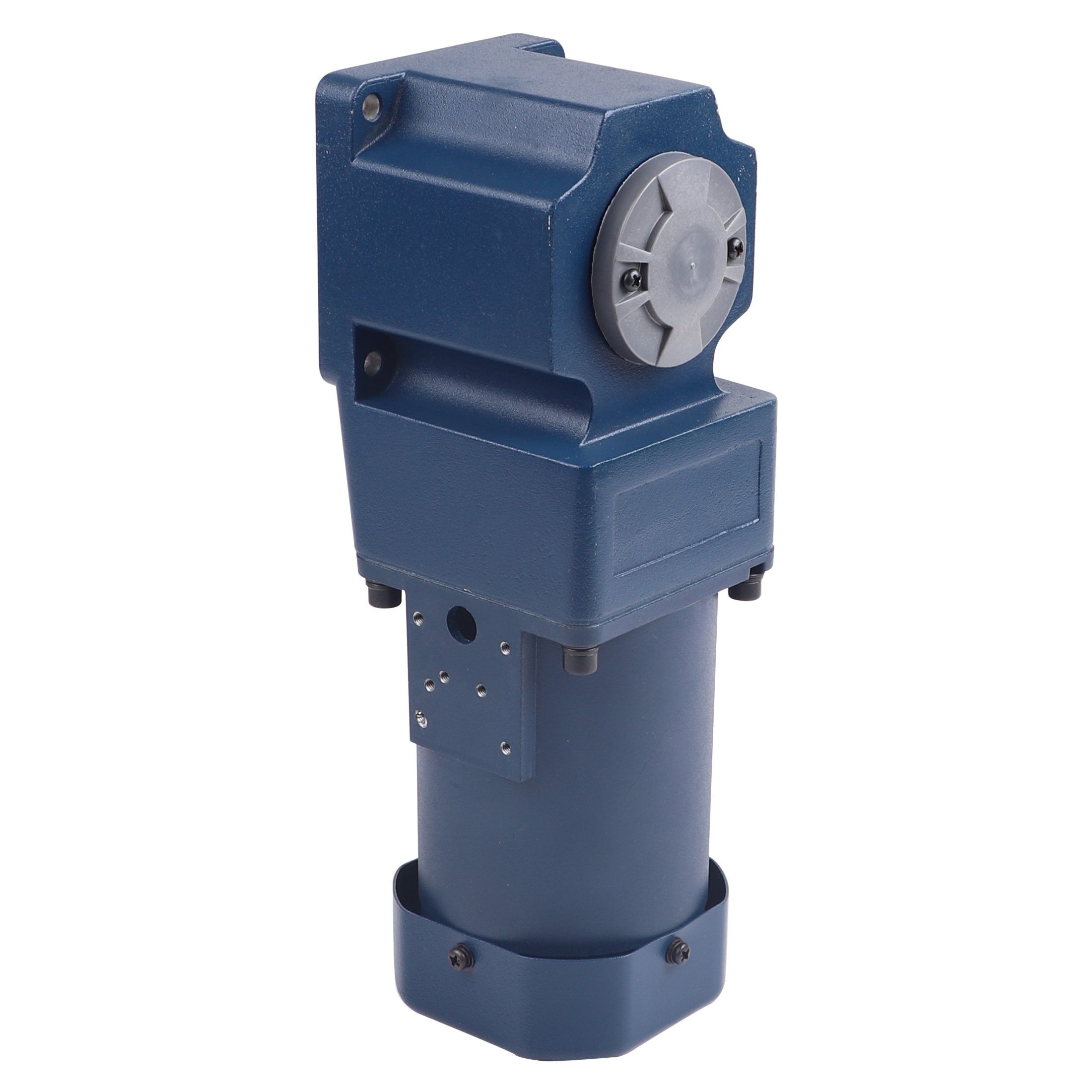

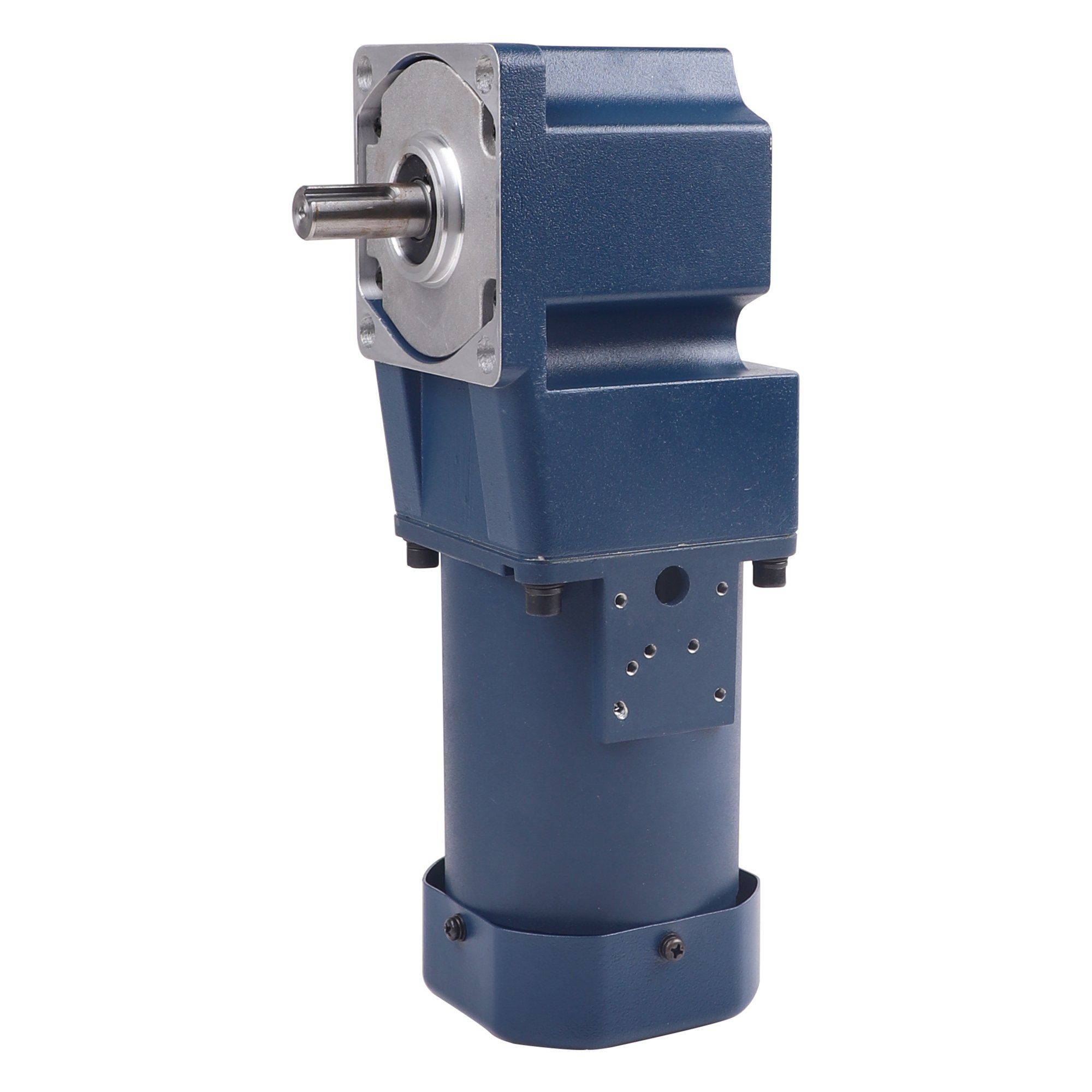

220V 90W 50Hz 0.7A Electric Induction AC Gear Motor
Model #: 5IK90GU-CFT(5GU50RT)
Specification
Parallel Shaft Gearhead
Lead Wiring Type
Terminal Box Type
Company Information
FAQ
Q: What're your main products?
A: We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, Ac Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.
Q: How to select a suitable motor?
A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly.
Q: Do you have a customized service for your standard motors?
A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too.
Q: Do you have an individual design service for motors?
A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost and design charge.
Q: What's your lead time?
A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders.
Please contact us if you have detailed requests, thank you !
Model #: 5IK90GU-CFT(5GU50RT)
Specification
| Model Type | Output power | Voltage | Frequency | Current | Starting | Rated | Rated | |
| Upper:Pinion Shaft | ||||||||
| Below:Round Shaft | ||||||||
| Lead Wire Type Dimensiors | Terminal Box Type Dimensions | W | V | Hz | A | mN.m | mN.m | r/min |
| 5IK90GU-AF | 5IK90GU-AFT | 90 | 1ph 100 | 50 | 1.55 | 450 | 700 | 1250 |
| (5IK90A-AF) | (5IK90A-AFT) | 60 | 1.85 | 570 | 1550 | |||
| 5IK90GU-EF | 5IK90GU-EFT | 90 | 1ph 110 | 60 | 1.4 | 500 | 570 | 1550 |
| (5IK90A-EF ) | (5IK90A-EFT) | 1ph 120 | 1.45 | |||||
| 5IK90GU-CF | 5IK90GU-CFT | 90 | 1ph 220 | 50 | 0.72 | 450 | 700 | 1250 |
| (5IK90A-CF) | (5IK90A-CFT) | 1ph 230 | 0.7 | |||||
| 5IK90GU-HF | 5IK90GU-HFT | 90 | 1ph 220 | 60 | 0.71 | 450 | 570 | 1550 |
| (5IK90A-HF ) | (5IK90A-HFT) | 1ph 230 | 0.75 | |||||
| 5IK90GU-SF | 5IK90GU-SFT | 90 | 3ph 220 | 50 | 0.6 | 1350 | 700 | 1250 |
| (5IK90A-SF) | (5IK90A-SFT) | 60 | 0.55 | 1100 | 570 | 1550 | ||
Parallel Shaft Gearhead
| Gearhead Type | Gearhead Model | Gear Ratio | ||||||
| Long Life • Low Noise | 5GN()K | 3,3.6,5,6,7.5,9, 12.5, 15,18,25,30, 36, 50, 60, 75, 90, 100, 120, 150, 180, 200 | ||||||
| 5GN10XK ( Decimal Gearhead ) | ||||||||

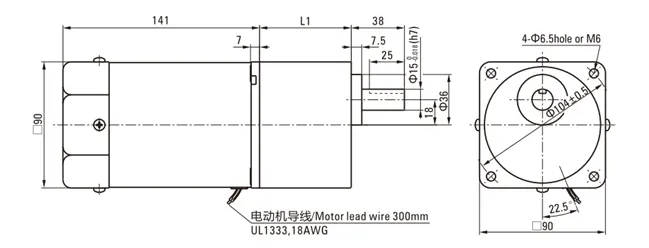

Lead Wiring Type
| Motor Model | Gearhead Model | Gear Ratio | L1 | |||||
| 5IK90GU-AF | 5GU()KB | 3~200 | 65.5 | |||||
| 5IK90GU-EF | ||||||||
| 5IK90GU-CF | ||||||||
| 5IK90GU-HF | ||||||||
| 5IK90GU-SF | ||||||||

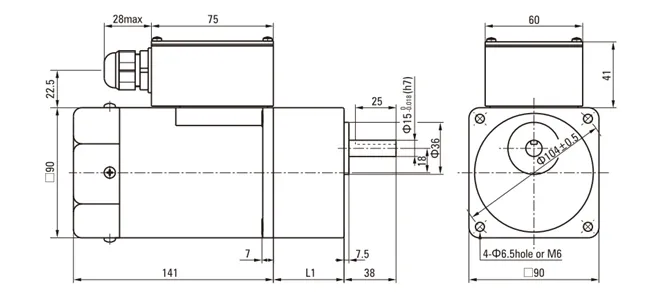

Terminal Box Type
| Motor Model | Gearhead Model | Gear Ratio | L1 | |||||
| 5IK90GU-AFT | 5GU()KB | 3~200 | 65.5 | |||||
| 5IK90GU-EFT | ||||||||
| 5IK90GU-CFT | ||||||||
| 5IK90GU-HFT | ||||||||
| 5IK90GU-SFT | ||||||||
