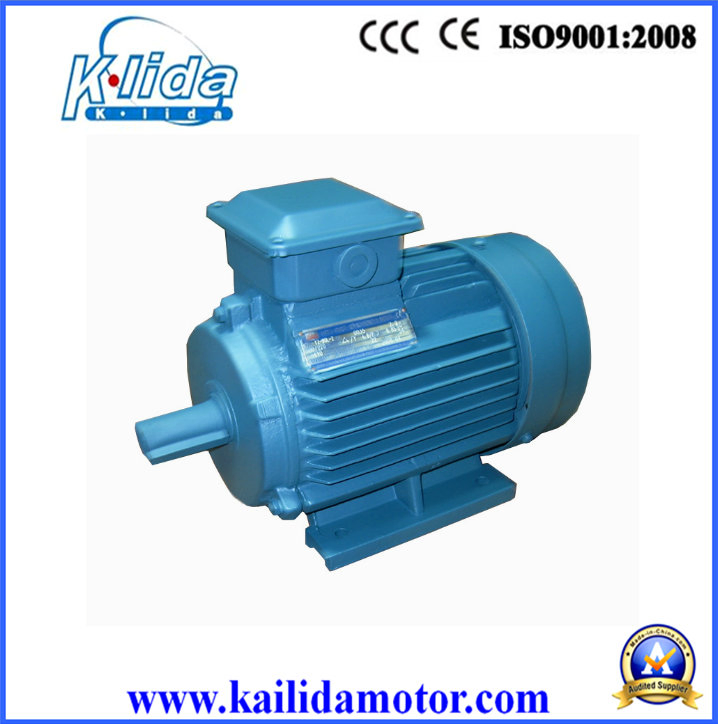

220V 380V 3 Phase 20 HP AC electric Motor (Y2- 160L -4-15KW/20HP)

Product Description

Motor Features:
Y2 series three phase induction motor technical parameter
1, Frame Size: 63-355 MM;
2, Rated Output: 0.12- 315 KW or 0.15- 465 HP;
3, Rated Voltage: 380 V or to be your request;
4, Rated Frequency: 50 Hz / 60 Hz;
5, Poles: 2 / 4 / 6 / 8 / 10
6, Speed: 590 - 2980 r/min
7, Ambient Temperature: -15° C- 40° C
8, Model of CONEECTION: Y-Connection for 3 KW motor or less while Delta-Connection for 4 KW motor or more;
9, Mounting: B3; B35; B34; B14; B5; V1;
10, Duty: Continuous (S1);
11, Insulation Class: B / F;
12, Protection Class: IP44 / IP54;
13, Cooling Method: ICO 141 Standards;
14, Altitude: No more than 1, 000 meters above sea level;
15, Packing: 1PC in a Strong carton several cartons on a Pallet or Plywood case.

TECHENICAL DATA OF Y2 SERIES
Type	Rated Power		Current	Speed	EFF	Power Factor	Tst/Tn	Ist/In	Mst/Tn	Noise	Libration grade
Type	kW	HP	A	r/min	(%)	COSφ	Tst/Tn	Ist/In	Mst/Tn	(dB)	(mm/s)
Y2-631-2	0.18	0.24	0.53	2730	65	0.8	5.5	2.2	2.2	61	1.8
Y2-632-2	0.25	0.33	0.69	2730	68	0.81	5.5	2.2	2.2	61	1.8
Y2-711-2	0.37	0.5	0.99	2750	70	0.81	6.1	2.2	2.2	64	1.8
Y2-712-2	0.55	0.75	1.39	2790	73	0.82	6.1	2.2	2.3	64	1.8
Y2-80M1-2	0.75	1	1.83	2845	75	0.83	6.1	2.2	2.3	67	1.8
Y2-80M2-2	1.1	1.5	2.6	2840	77	0.84	7.0	2.2	2.3	67	1.8
Y2-90S-2	1.5	2	3.5	2840	79	0.84	7.0	2.2	2.3	72	1.8
Y2-90L-2	2.2	3	4.9	2840	81	0.85	7.0	2.2	2.3	72	1.8
Y2-100L-2	3	4	6.4	2850	83	0.87	7.5	2.2	2.3	76	1.8
Y2-112M-2	4	5.5	8.1	2890	85	0.88	7.5	2.2	2.3	77	1.8
Y2-132S1-2	5.5	7.5	11	2910	86	0.88	7.5	2.2	2.3	80	1.8
Y2-132S2-2	7.5	10	15	2920	87	0.88	7.5	2.2	2.3	80	1.8
Y2-160M1-2	11	15	22	2935	88	0.89	7.5	2.2	2.3	86	2.8
Y2-160M2-2	15	20	29	2935	89	0.89	7.5	2.2	2.3	86	2.8
Y2-160L-2	18.5	25	35	2935	90	0.9	7.5	2.0	2.3	86	2.8
Y2-180M-2	22	30	41	2940	90	0.9	7.5	2.0	2.3	89	2.8
Y2-200L1-2	30	40	56	2945	91.2	0.9	7.5	2.0	2.3	92	2.8
Y2-200L2-2	37	50	68	2945	92	0.9	7.5	2.0	2.3	92	2.8
Y2-225M-2	45	60	82	2950	92.3	0.9	7.5	2.0	2.3	92	2.8
Y2-250M-2	55	75	100	2965	92.5	0.9	7.5	2.0	2.3	93	3.5
Y2-280S-2	75	100	136	2965	93	0.9	7.5	2.0	2.3	94	3.5
Y2-280M-2	90	125	160	2965	93.8	0.91	7.1	2.0	2.3	94	3.5
Y2-315S-2	110	150	196	2975	94	0.91	7.1	1.8	2.2	96	3.5
Y2-315M-2	132	180	234	2975	94.5	0.91	7.1	1.8	2.2	96	3.5
Y2-315L1-2	160	215	280	2975	94.6	0.92	7.1	1.8	2.2	99	3.5
Y2-315L2-2	200	270	348	2975	94.8	0.92	7.1	1.8	2.2	99	3.5
Y2-355M2-2	250	340	433	2980	95.3	0.92	7.1	1.8	2.2	103	3.5
Y2-355L2-2	315	420	544	2980	95.6	0.92	7.1	1.8	2.2	103	3.5
Y2-631--4	0.12	0.16	0.44	1320	57	0.72	4.4	2.1	2.2	52	1.8
Y2-632-4	0.18	0.24	0.62	1320	60	0.73	4.4	2.1	2.2	52	1.8
Y2-711-4	0.25	0.33	0.79	1350	65	0.74	5.2	2.1	2.2	55	1.8
Y2-712-4	0.37	0.5	1.12	1340	67	0.75	5.2	2.1	2.3	55	1.8
Y2-80M1-4	0.55	0.75	1.57	1390	71	0.75	6.0	2.4	2.3	58	1.8
Y2-80M2-4	0.75	1	2.05	1380	73	0.76	6.0	2.3	2.3	58	1.8
Y2-90S-4	1.1	1.5	2.9	1390	75	0.77	6.0	2.3	2.3	61	1.8
Y2-90L-4	1.5	2	3.7	1410	78	0.79	7.0	2.3	2.3	61	1.8
Y2-100L1-4	2.2	3	5.2	1410	80	0.81	7.0	2.3	2.3	64	1.8
Y2-100L2-4	3	4	6.8	1440	82	0.82	7.0	2.3	2.3	64	1.8
Y2-112M-4	4	5.5	8.8	1445	84	0.82	7.0	2.3	2.3	65	1.8
Y2-132S-4	5.5	7.5	11.9	1445	85	0.83	7.0	2.3	2.3	71	1.8
Y2-132M-4	7.5	10	16	1460	87	0.84	7.0	2.3	2.3	71	2.8
Y2-160M-4	11	15	23	1470	88	0.84	7.5	2.2	2.3	75	2.8
Y2-160L-4	15	20	30	1470	89	0.85	7.5	2.2	2.3	75	2.8
Y2-180M-4	18.5	25	36	1475	90.5	0.86	7.5	2.2	2.3	76	2.8
Y2-180L-4	22	30	43	1475	91	0.86	7.2	2.2	2.3	76	2.8
Y2-200L-4	30	40	58	1475	92	0.86	7.2	2.2	2.3	79	2.8
Y2-225S-4	37	50	70	1485	92.5	0.87	7.2	2.2	2.3	81	2.8
Y2-225M-4	45	60	85	1485	92.8	0.87	7.2	2.2	2.3	81	3.5
Y2-250M-4	55	75	103	1485	93	0.87	7.2	2.2	2.3	83	3.5
Y2-280S-4	75	100	140	1485	93.8	0.87	7.2	2.2	2.3	86	3.5
Y2-280M-4	90	125	197	1485	94.2	0.87	6.9	2.1	2.2	93	3.5
Y2-315S-4	110	150	201	1485	94.5	0.87	6.9	2.1	2.2	93	3.5
Y2-315M-4	132	180	241	1485	94.8	0.88	6.9	2.1	2.2	97	3.5
Y2-315L1-4	160	215	288	1485	94.9	0.88	6.9	2.1	2.2	97	3.5
Y2-315L2-4	200	270	360	1485	95	0.89	6.9	2.1	2.2	97	3.5
Y2-355M3-4	250	340	443	1490	95.3	0.9	6.8	2.1	2.2	101	3.5
Y2-355L3-4	315	420	556	1490	95.6	0.9	6.8	2.1	2.2	101	3.5

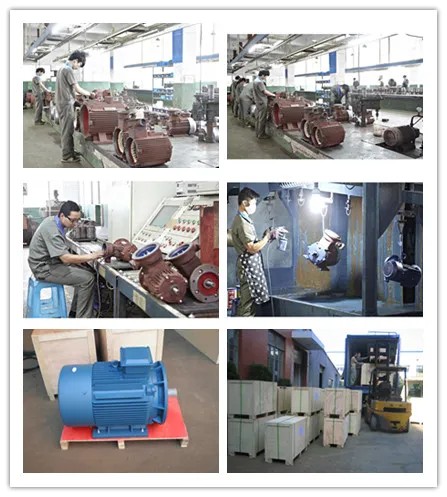

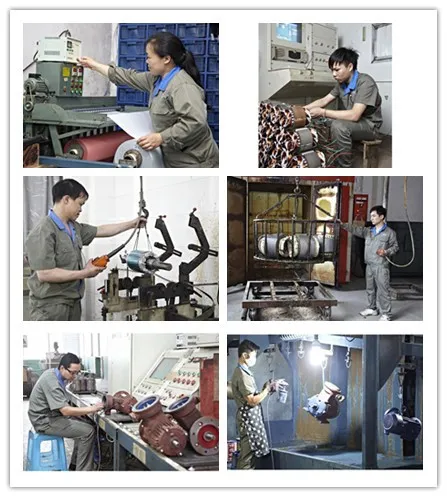

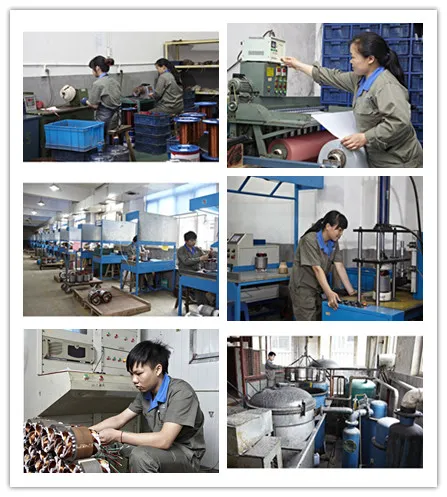

Kailida Motors Factory Advantages.
· Prompt Quotation.
· Competitive Price
· Guaranteed Quality
· Timely Delivery.
· 100% Tested.
· Sincere and Professional Service.
· Outstanding Finishing Surface.
· Strictly and Perfect Management is guaranteed for Production.
· Specialized in Manufacturing and Supplying a wide range of Electric Motors since year 2002.
· Have Rich Experience and Strong ability to Develop New Products.
· Have Ability to Design the Products Based on Your Original Samples.
We Promise you all the time after you working with us for Win-Win Business.
· Prompt Reply to Your Inquiry within 24 Hs during Working Days.
· Long Life Time Products
· Products One Year Guarantee from the Date of Sales.
· Professional Service in Handling Your Goods in Daily Communications
· Deliver Time about 15-20 days for Normal Models.
· Deliver Time about 30 days for New Models upon Receiving the New Samples. 220V 380V 3 Phase 20 HP AC electric Motor (Y2-160L-4-15KW/20HP)
