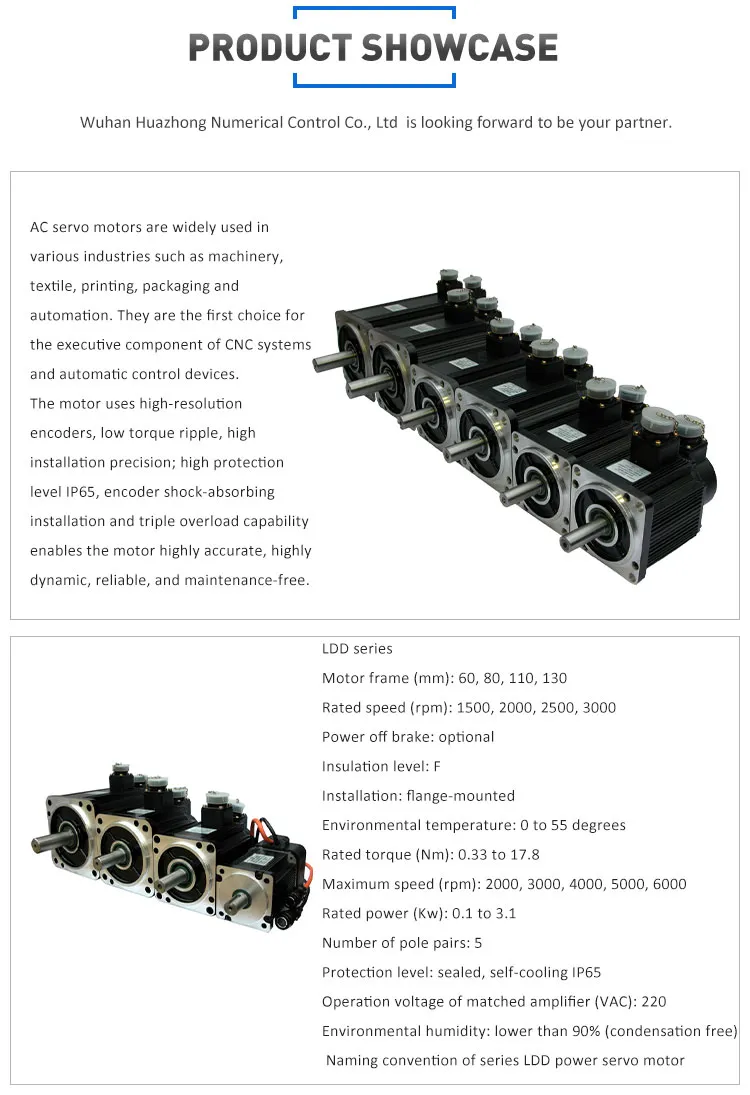

Product Description
Features:

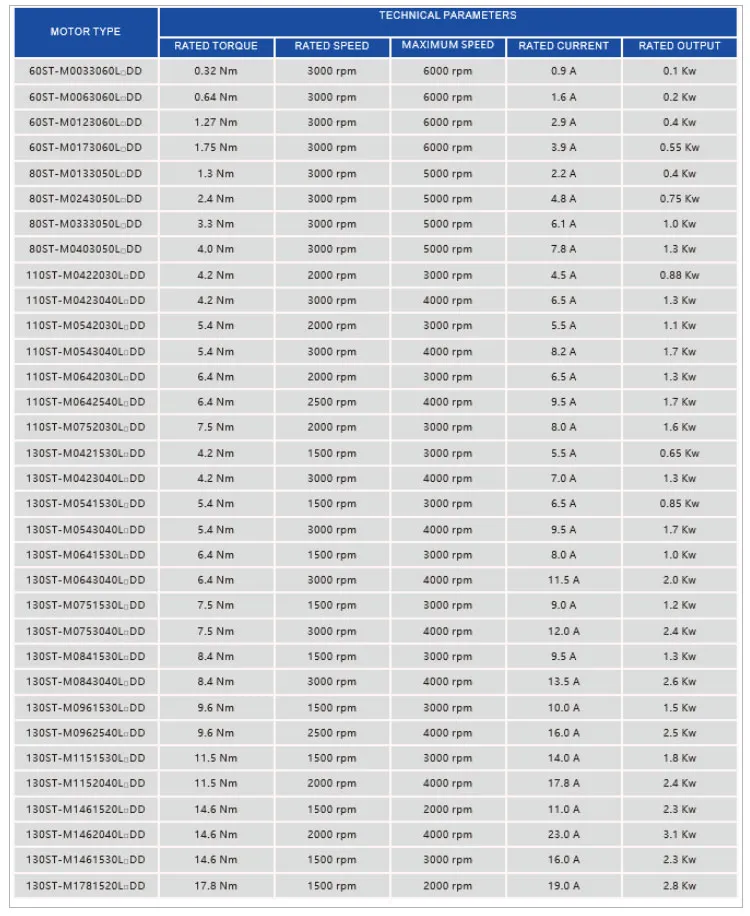

Motor frame (mm): 60, 80, 110, 130
Rated speed (rpm): 1500, 2000, 2500, 3000
Power off brake: optional
Insulation level: F
Installation: flange-mounted
Environmental temperature: 0 to 55 degrees
Rated torque (Nm): 0.33 to 17.8
Maximum speed (rpm): 2000, 3000, 4000, 5000, 6000
Rated power (Kw): 0.1 to 3.1
Number of pole pairs: 5
Protection level: sealed, self-cooling IP65
Operation voltage of matched amplifier (VAC): 220
Environmental humidity: lower than 90% (condensation free)
Naming convention of series LDD power servo motor
110 | ST | M | 042 | 15 | 30 | L | M1 | D | D | Z | /C |
(1) | (2) | (3) | (4) | (5) | (6) | (7) | (8) | (9) | (10) | (11) | (12) |
(1) Motor frame No.
(2) AC permanent magnet synchronization servo motor
(3) Feedback component type
(4) Rated torque: three-digit number × 0.1Nm
(5) Rated speed: two-digit number × 100rpm
(6) Maximum speed: two-digit number × 100rpm
(7) Operation voltage of matched amplifier: 220

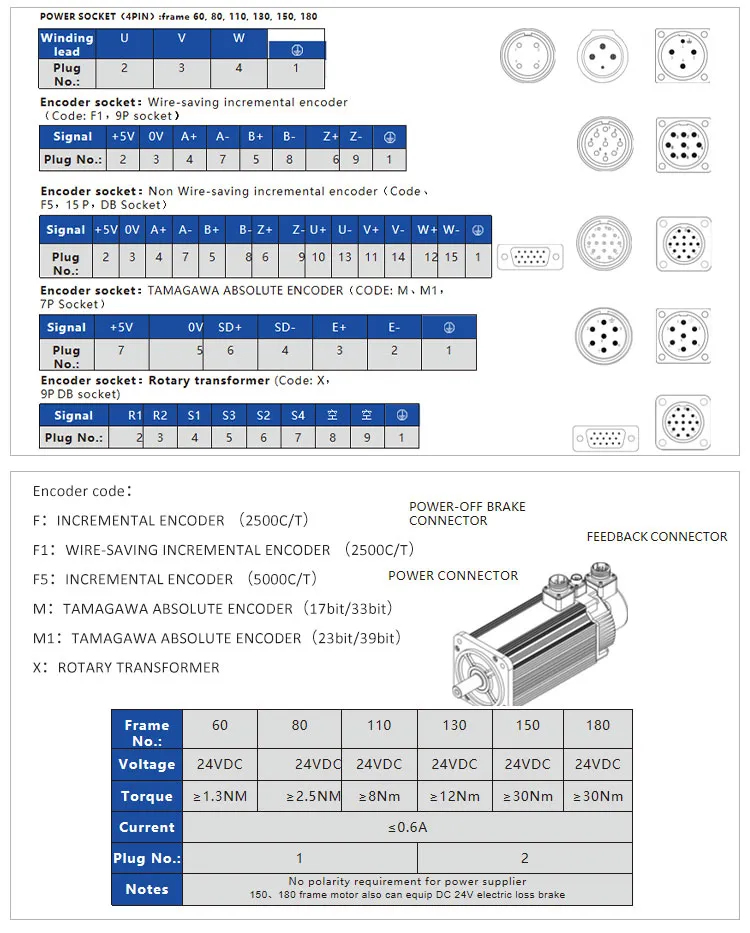

(8) Encoder code
(9) Medium inertia
(10) The highest speed characteristic
(11) Power-off brake is mounted
(12) Keyway code; if there is no key, there is no code
