Features:
Reversible plug for easy rotation
Quick installation
Energy efficient
Quiet operation
Ball bearing
Automatic overload
Thermal protection
High efficiency, High reliability, Little vibration, Low noise

Application:
Suitable for condenser fan, air energy heat pump unit, machine room air conditioning and similar applications.

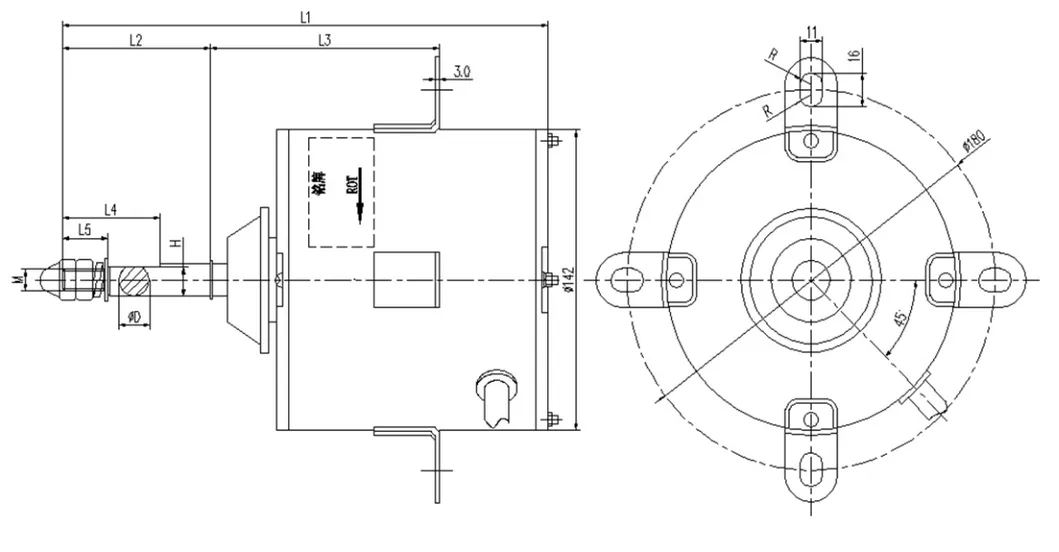

Typical Outline Dimensions:



Main technical data:

Type	Voltage	Frequency	Output	Current	Speed	Insulation
Unit	V	Hz	W	A	r/min	Class
YDK-90-6	220	50	90	0.75	750	B
YDK-100-6	220	50	100	1.20	800	B
YDK-120-6	220	50	120	1.30	800	B
YDK-150-6	220	50	150	1.40	885	B
YDK-150-8	220	50	150	1.55	630	B
YDK-180-6	220	50	180	1.80	800	B
YDK-200-6	220	50	200	1.80	830	B
YDK-250-6	220	50	250	2.00	880	B
YDK-370-6	220	50	370	2.30	840	B
YDK-550-6	220	50	550	4.50	820	B/F

Notes:
The above mentioned specification is representative specification,The specification can also be designed and manufactured
according to customers requirement.
The products of 100-120V,200-240V,60Hz can also be supplied as requested.
We will not give special notice on changes,please contact our technical department for further information.

Terms:
1. Trade Terms: FOB, CIF, CNF, EXW, DOOR TO DOOR.
2. Payment Terms: T/T, L/C, Western Union.
3. Payment Condition: 30% deposit in advance, 70% balance before delivery.
4. Delivery Time: 15-30 days after deposit (if T/T).
5. Shipping: By sea, by air and by express delivery

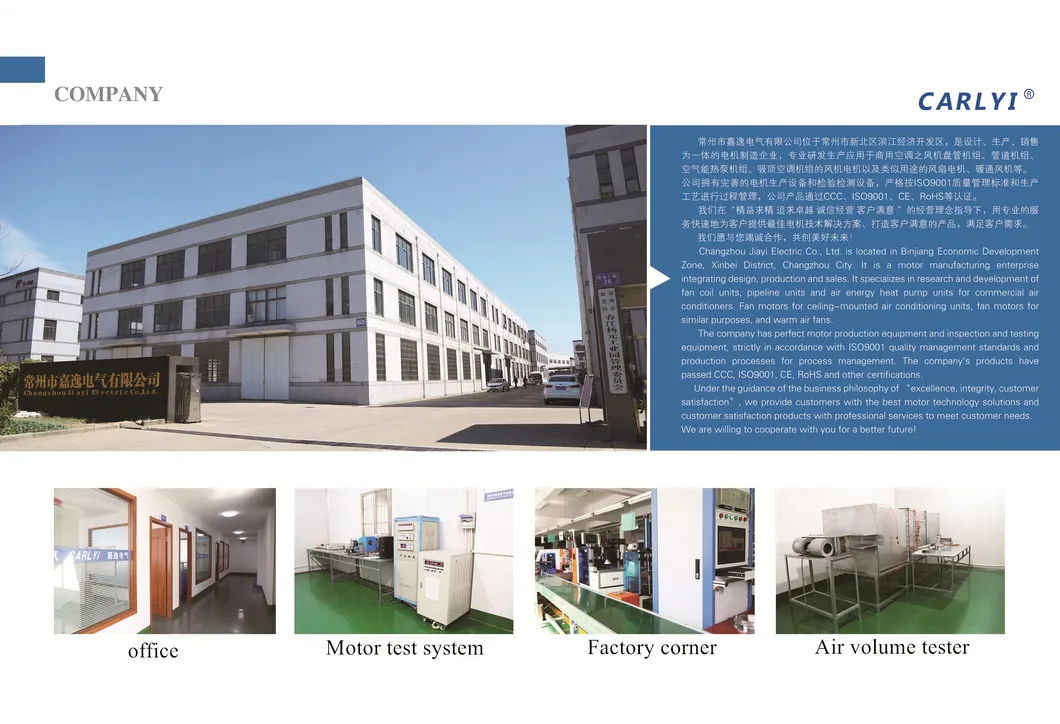

Company information:

1.Changzhou Jiayi Electric Co., Ltd. is located in Binjiang Economic Development Zone, Xinbei District, Changzhou City.

It is a professional motor manufacturing enterprise integrating design, production and sales.

2.The company holds key technology and can design and make the special sizes and can customize according to special requirements.

3.The company's main products are window-style, cabinet, split wall-mounted fan and other home-use air-conditioning motors;

commercial air-conditioning motors;

fan coil full range of motors;

air energy units with motors;

fans;

dryer with high temperature and pressure motors and Fan;

Ceiling air conditioning card machine series motor;

fresh air unit motor;

duct blower motor;

air-cooled (water) heat pump module unit motor;

high static pressure fan coil motor.

4.CARLYI branded motors have been approved by CCC, ISO9001, CE, RoHS certification.

FAQ:

Q1: Are you factory?

A: Yes, we have been in designing and providing excellent motors for customers. Our factory production is all under ISO9001 quality management system.

Q2: How long you could prepare samples?

A: Normally 3 days if we have the sample in hand. If customized one, about a week around

Q3: How about batch order production?

A: Normally 15-30 days, the customized or newly developed products may take more half month.

Q4: Do you inspect the finished products?

A: Yes, we do inspection according to ISO9001 standard and ruled by our experienced QC staff.

Q5: What advantage do you have?

A: For the motors, we have long enough of 18months guarantee, and for the service, we offer 24 hours technical support and barrier-free communication.
