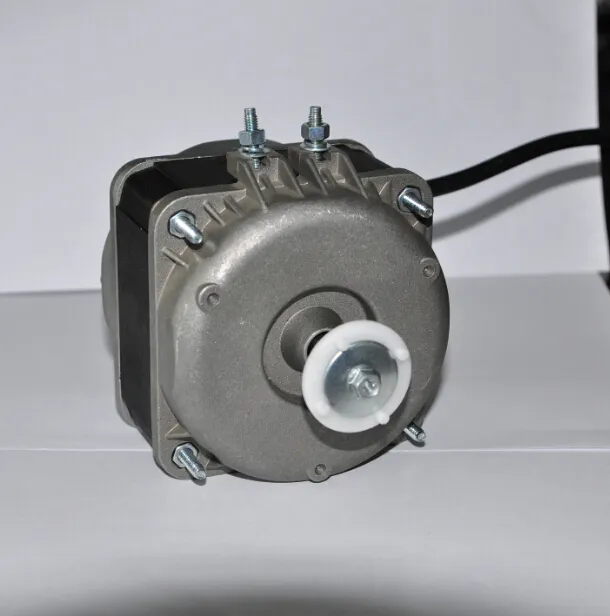

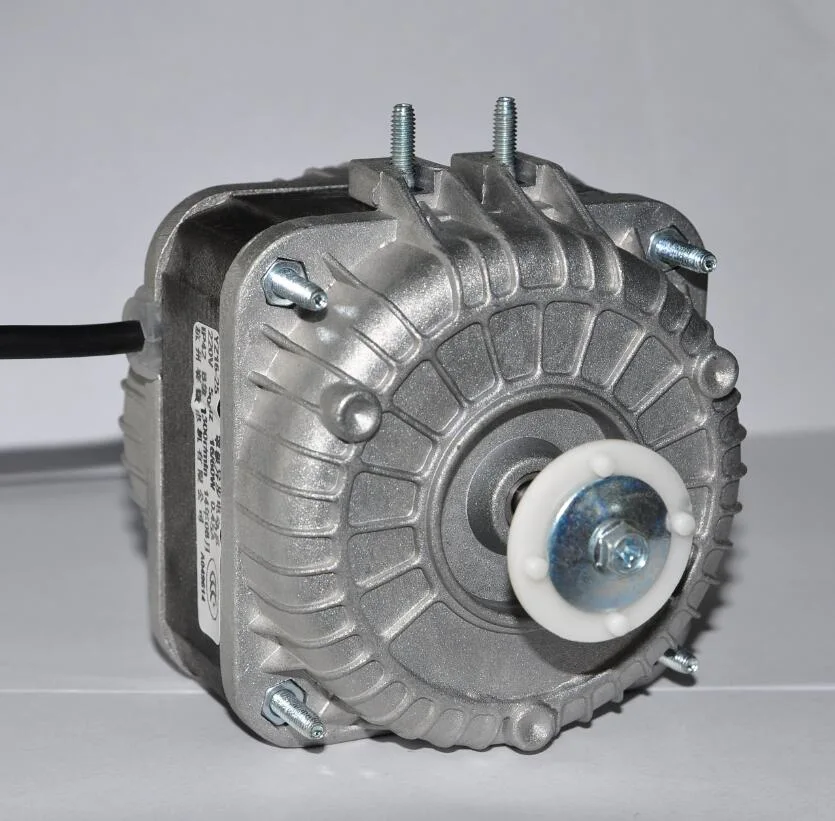

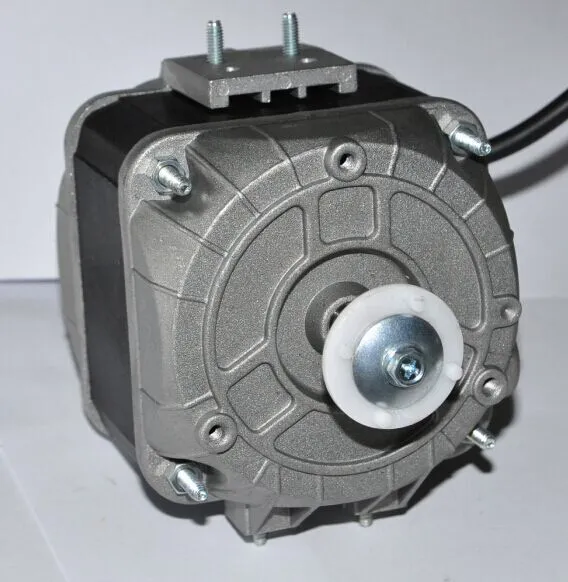

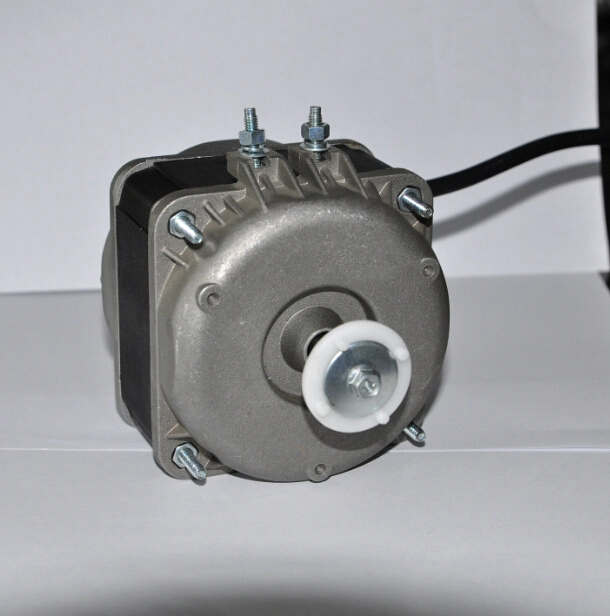

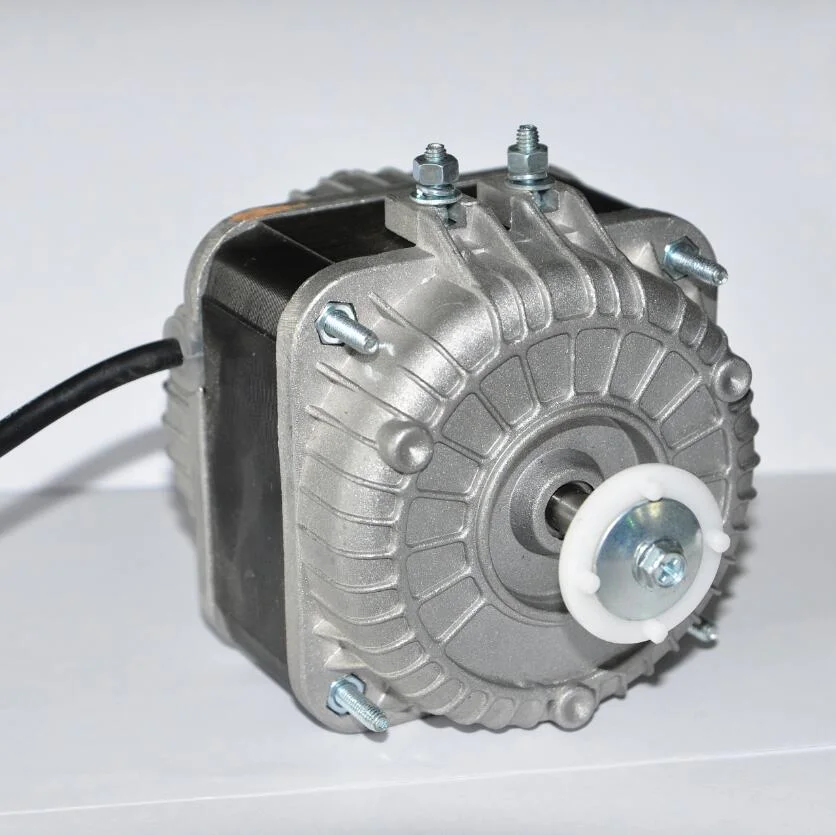

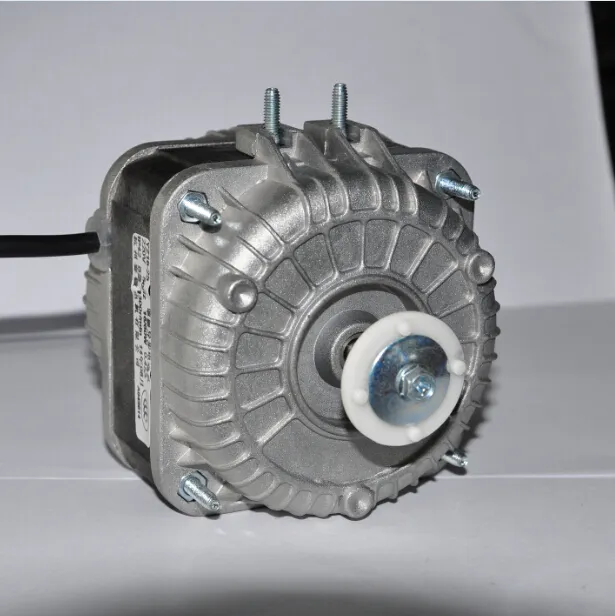

18W 25W 110V Refrigeration Shaded-Pole Motor, Fridge AC Motor
30W 110V refrigeration shaded-pole motor,fridge ac motor1) Power: 3W/5W/7W/10W/16W/25W//34W2) Frequency: 50 / 60Hz3) Volt: AC 110V / 220V4) Various size of blade (blowing / sucking) and bracket are optional5) Single-phase6) Insulation: Class B7) Micro-motors are applied to household appliances exten......
Send Inquiry
Product Description
30W 110V refrigeration shaded-pole motor,fridge ac motor
1) Power: 3W/5W/7W/10W/16W/25W//34W2) Frequency: 50 / 60Hz
3) Volt: AC 110V / 220V
4) Various size of blade (blowing / sucking) and bracket are optional
5) Single-phase
6) Insulation: Class B
7) Micro-motors are applied to household appliances extensively, such as refrigerator freezer, microwave oven, warm-air blower, ventilation fan, oven, fresh air machine, etc.
For more products, micro motor, shaded pole fan motor, kitchen exhaust motor, unit bearing motor, evaporator fan motor etc.
| Model | Volt | Frequency | Input Power | Out Power | Current | Speed | A | B | C | D | E |
| V | Hz | W | W | A | R. P. M | mm | mm | mm | mm | mm | |
| YJF3 | 220/240 | 50/60 | 20 | 3 | 0.16 | 1300/1550 | 81 | 14 | 46 | 30 | - |
| 110/115 | 50/60 | 20 | 3 | 0.32 | 1300/1550 | - | |||||
| YJF5 | 220/240 | 50/60 | 30 | 5 | 0.20 | 1300/1550 | - | ||||
| 110/115 | 50/60 | 30 | 5 | 0.40 | 1300/1550 | - | |||||
| YJF7- | 220/240 | 50/60 | 38 | 7 | 0.27 | 1300/1550 | 91 | 17 | 49 | 33 | - |
| 110/115 | 50/60 | 38 | 7 | 0.54 | 1300/1550 | - | |||||
| YJF10 | 220/240 | 50/60 | 42 | 10 | 0.30 | 1300/1550 | - | ||||
| 110/115 | 50/60 | 42 | 10 | 0.60 | 1300/1550 | - | |||||
| YJF16 | 220/240 | 50/60 | 58 | 16 | 0.40 | 1300/1550 | 102 | 18 | 50 | 34 | - |
| 110/115 | 50/60 | 58 | 16 | 0.80 | 1300/1550 | - | |||||
| YJF18 | 220/240 | 50/60 | 64 | 18 | 0.43 | 1300/1550 | 20 | ||||
| 110/115 | 50/60 | 64 | 18 | 0.86 | 1300/1550 | ||||||
| YJF20 | 220/240 | 50/60 | 65 | 20 | 0.47 | 1300/1550 | |||||
| 110/115 | 50/60 | 65 | 20 | 0.94 | 1300/1550 | ||||||
| YJF25 | 220/240 | 50/60 | 100 | 25 | 0.70 | 1300/1550 | 112 | 18 | 30 | ||
| 110/115 | 50/60 | 100 | 25 | 1.40 | 1300/1550 | ||||||
| YJF34 | 220/240 | 50/60 | 120 | 34 | 0.90 | 1300/1550 | 117 | 35 |
