1.8kw 220V 3000rpm 3 Pha Unit Mige 3m Cable and Direct Adtech Brake Deriv and Direct Drive AC Servo Motor and Drive
AC SERVO MOTOR (220V) With G2 Model Ac servo DriverGeneral Specification: ModelM02030M04020M04030M05030M06020M06030Rated power(KW)0.60.81.21.51.21.8Rated voltage (V)220220220220220220Rated current(A)2.53.5564.56Rated speed(rpm)300020003000300020003000Rated torque(N.m)244566Peak torque(N.m)6121215121......
Send Inquiry
Product Description
AC SERVO MOTOR (220V) With G2 Model Ac servo Driver
General Specification:
Products of special request can be made according to the customer request !

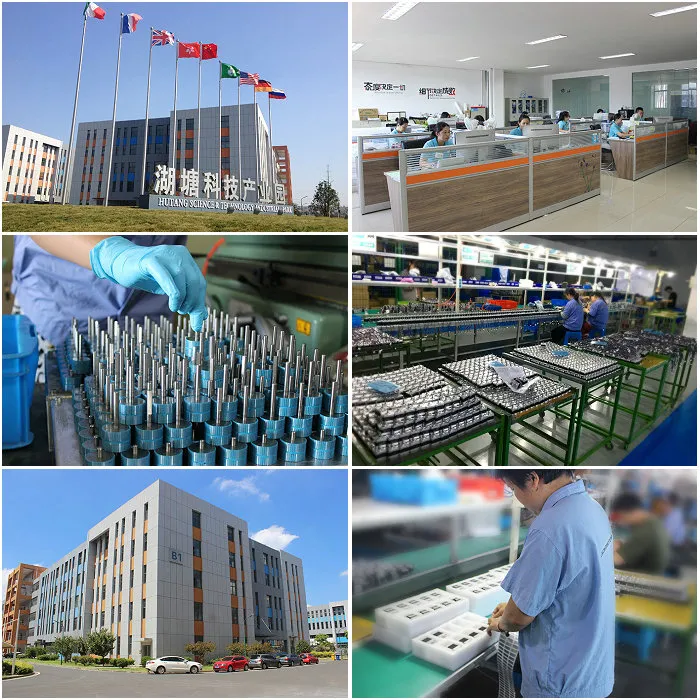

company information:
our certification:
Our Company offers three major series of products:Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor.
We are always continues develop new type models.If you need other kinds of parts, please don't hesitate to contact us.
General Specification:
| Model | M02030 | M04020 | M04030 | M05030 | M06020 | M06030 |
| Rated power(KW) | 0.6 | 0.8 | 1.2 | 1.5 | 1.2 | 1.8 |
| Rated voltage (V) | 220 | 220 | 220 | 220 | 220 | 220 |
| Rated current(A) | 2.5 | 3.5 | 5 | 6 | 4.5 | 6 |
| Rated speed(rpm) | 3000 | 2000 | 3000 | 3000 | 2000 | 3000 |
| Rated torque(N.m) | 2 | 4 | 4 | 5 | 6 | 6 |
| Peak torque(N.m) | 6 | 12 | 12 | 15 | 12 | 18 |
| Voltage constant(V/Krpm) | 56 | 79 | 54 | 62 | 83 | 60 |
| Torque coefficient(N.m/A) | 0.8 | 1.14 | 0.8 | 0.83 | 1.3 | 1 |
| Rotar inertia(Kg.m2) | 0.31×10-3 | 0.54×10-3 | 0.54×10-3 | 0.63×10-3 | 0.76×10-3 | 0.76×10-4 |
| Line-Line Resistance(Ω) | 3.6 | 2.41 | 1.09 | 1.03 | 1.46 | 0.81 |
| Line-Line Inductance(mH) | 8.32 | 7.3 | 3.3 | 3.43 | 4.7 | 2.59 |
| Electrical time constant(ms) | 2.3 | 3 | 3 | 3.3 | 3.2 | 3.2 |
| Weight(Kg) | 4.5 | 5.5 | 5.5 | 6.1 | 6.7 | 6.7 |
| Insulation class | ClassF | |||||
| Safety class | IP65 | |||||
| Working Enviroment | Temperate: -20ºC~+50ºC;Humidity<90 | |||||
Products of special request can be made according to the customer request !
company information:
our certification:
Our Company offers three major series of products:Hybrid Stepper motors, Brushless Dc motor and Dc Brush motor.
We are always continues develop new type models.If you need other kinds of parts, please don't hesitate to contact us.
