China (4RK25A-C 4GN3K-180K) 80mm Gear Motor AC Geared Motor 25W Kid Car Motor

Product Description

TaiBang Motor Industrial Group Co., Ltd.
The main products is induction motor, reversible motor, DC brush gear motor, DC brushless gear motor, CH/CV big gear motors, Planetary gear motor ,Worm gear motor etc, which used widely in various fields of manufacturing pipelining, transportation, food, medicine, printing, fabric, packing, office, apparatus, entertainment etc, and is the preferred and matched product for automatic machine.

25W 80mm constant speed AC gear motor

Speciﬁcation of motor 25W 80mm Fixed speed AC gear motor
TYPE	Gear tooth Output Shaft	Power (W)	Frequency (Hz)	Voltage (V)	Current (A)	Start Torque (g.cm)	Rated		Start		Gearbox type
							Torque (g.cm)	Speed (rpm)	Capacity (μF)	Resistance Voltage (V)	Bearing gearbox	Middle Gearbox
Reversible Motor	4RK25A-C	25	50	220	0.30	600	487	1250	2.0	500	4GN- K	4GN10X
		25	60	220	0.27	500	400	1500	1.8	500	4GN- K	4GN10X

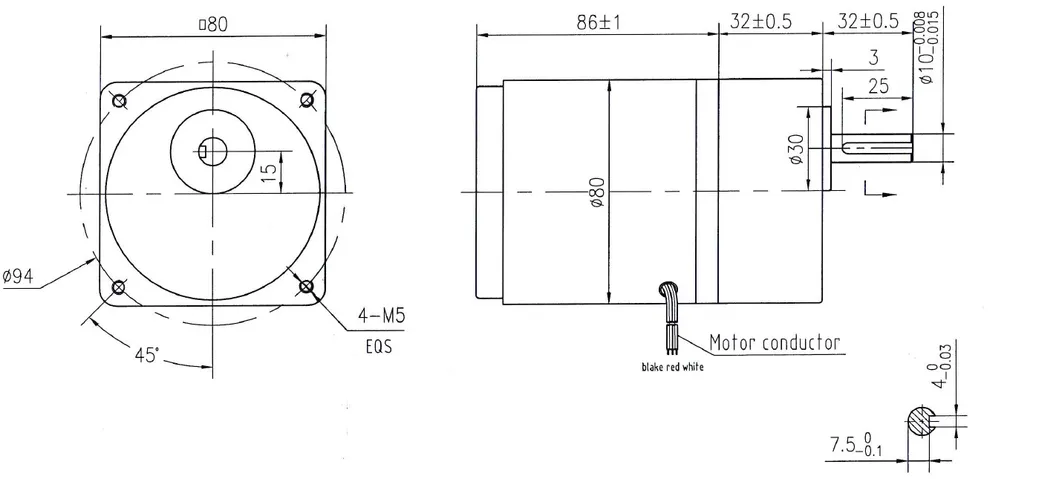

Drawing: 4RK25A-C/4GN3~20K (Short gearbox shell 32mm)
(4RK25A-C 4GN3K-180K) 80mm Gear Motor AC Geared Motor 25W Kid Car Motor

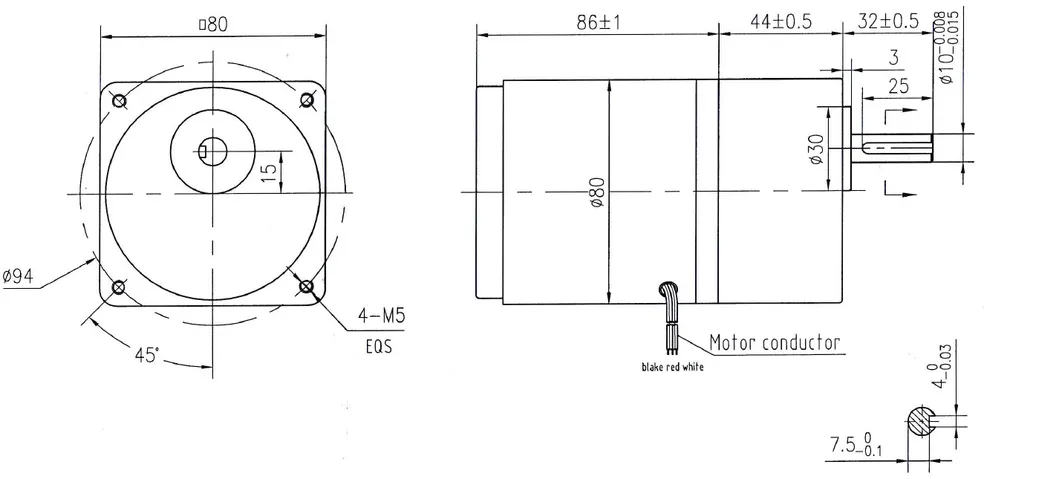

Drawing: 4RK25A-C /4GN25~180K (Short gearbox shell 44mm)
(4RK25A-C 4GN3K-180K) 80mm Gear Motor AC Geared Motor 25W Kid Car Motor

Gearbox torque table(Kg.cm)															(kg.cm×9.8÷100)=N.m
Output speed :RPM			500	300	200	150	120	100	75	60	50	30	20	15	10	7.5	6	5	3
Speed ratio		50Hz	3	5	7.5	10	12.5	15	20	25	30	50	75	100	150	200	250	300	500
Speed ratio		60Hz	3.6	6	9		15	18		30	36	60	90	120	180		300	360	600
Allowed torque	25W	kg.cm	4	6.7	10	13.3	16	20	26.7	32	39	65	80	80	80	80	80	80	80
	30W	kg.cm	4.8	8	12	16	20	24	32	38	46	76	80	80	80	80	80	80	80
	40W	kg.cm	6.7	11	16	21.3	28	33	42	54	65	80	80	80	80	80	80	80	80
Note: Speed figures are based on synchronous speed, The actual output speed, under rated torque conditions, is about 10-20% less than synchronous speed, a grey background indicates output shaft of geared motor rotates in the same direction as output shaft of motor. A white background indicates rotates rotation in the opposite direction.

Drawing is for standard screw hole, If need through hole, terminal box, or electronic magnet brake, need to tell the seller.

Basic tech data:	Retail price:
Motor type: AC gear motor	Insulation Class: E
Motor material: Aluminum , Copper, Steel	IP grade:IP44
Rotation: CW/CCW reversible	Working style:S1
Frequency: 50Hz/60Hz	Operating temperature range: -10 °C~+40°C
HS Code:8501400000	Operating relative humidity: 95% Below

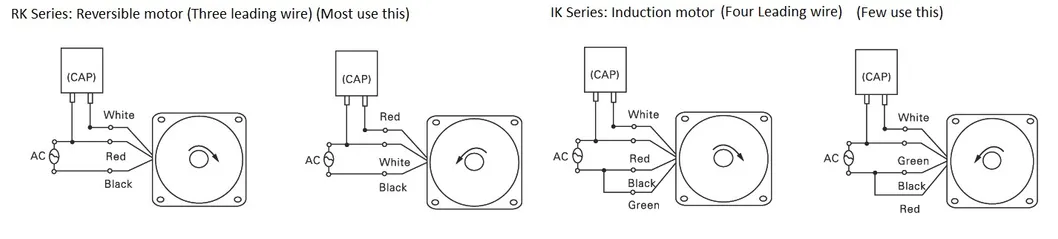

Connection Diagram:
(4RK25A-C 4GN3K-180K) 80mm Gear Motor AC Geared Motor 25W Kid Car Motor

Note
Specifications for reference only.
Shaft dimension and specifications(voltage, torque, speed, etc) can be customized.
