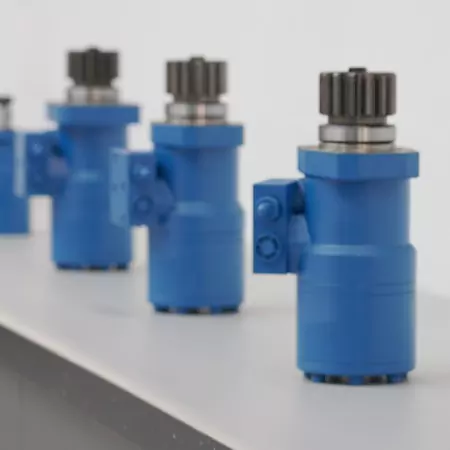

What Is an Oscillating Hydraulic Motor with Slide Valve?

An Oscillating Hydraulic Motor with Slide Valve is a specialized hydraulic actuator designed to convert hydraulic energy into limited-angle rotary motion rather than continuous rotation. Unlike traditional hydraulic motors, it oscillates back and forth within a defined angle, making it ideal for applications that require precise positioning, high torque at low speed, and repeated directional changes. Thanks to the slide valve control mechanism, flow direction and timing are accurately managed, ensuring smooth motion, fast response, and long service life.

In modern industrial systems, this type of motor plays a critical role where compact structure, reliability, and control accuracy are essential. Companies such as Qingdao Yushan Intelligent Technology Co., Ltd. have been deeply involved in the development and manufacturing of advanced oscillating hydraulic solutions, providing stable and efficient products for global customers.

How Does an Oscillating Hydraulic Motor with Slide Valve Work?

The working principle is based on hydraulic pressure acting on internal vanes or pistons to generate torque. The slide valve precisely controls the oil inlet and outlet, switching flow paths as the motor reaches preset angles. This creates a controlled oscillating motion instead of full rotation.

Key working steps include:

• Hydraulic oil enters through the slide valve

• Pressure drives the internal mechanism to rotate to a set angle

• The slide valve shifts position

• Oil flow reverses, causing motion in the opposite direction

This cycle repeats continuously, delivering stable oscillating output.

Oscillating Hydraulic Motor with Slide Valve vs. Continuous Hydraulic Motor

From the comparison, it's clear that oscillating motors excel in precision-driven applications where control matters more than speed.

Main Functions and Roles

The Oscillating Hydraulic Motor with Slide Valve serves several important functions in industrial systems:

• Precise angular positioning for mechanical arms and fixtures

• High-torque output under low-speed or static conditions

• Stable bidirectional motion without complex external control systems

• Compact integration into limited installation spaces

These functions make it indispensable in automated and semi-automated equipment.

Application Effects in Real Industries

In practical use, this motor type delivers noticeable performance benefits:

• Reduced mechanical wear due to smooth oscillation

• Improved system efficiency through optimized oil flow

• Lower maintenance costs and longer service intervals

• Enhanced operational safety and repeatability

Industries such as metallurgy, marine equipment, automation lines, mining machinery, and heavy-duty fixtures widely adopt these motors for their reliability and consistency.

Why Is the Oscillating Hydraulic Motor with Slide Valve Important?

Its importance lies in its ability to solve problems that conventional motors cannot. Where space is tight, loads are heavy, and motion accuracy is critical, the Oscillating Hydraulic Motor with Slide Valve provides a balanced solution of power, precision, and durability. With intelligent design and high-quality manufacturing, it significantly boosts overall equipment performance.

At Qingdao Yushan Intelligent Technology Co., Ltd., advanced engineering, strict quality control, and application-oriented design ensure that each motor meets demanding industrial standards while remaining cost-effective.

Typical Technical Advantages

• High torque density

• Accurate angle control

• Excellent sealing performance

• Strong resistance to shock and vibration

• Flexible customization options

These advantages make the product suitable for both standard systems and customized projects.

Conclusion

The Oscillating Hydraulic Motor with Slide Valve is a highly efficient and precise hydraulic solution for applications requiring controlled oscillating motion. Its unique structure, reliable slide valve control, and strong torque output make it a key component in modern industrial equipment. With proven expertise and innovative capabilities, Qingdao Yushan Intelligent Technology Co., Ltd. continues to provide dependable hydraulic motor solutions tailored to real-world needs.

If you are looking to upgrade your system performance or need a customized hydraulic solution, contact us today to explore how our oscillating hydraulic motors can bring greater value to your equipment.
