What happens if you reverse the connections of the two capacitors in a double capacitor single phase motor

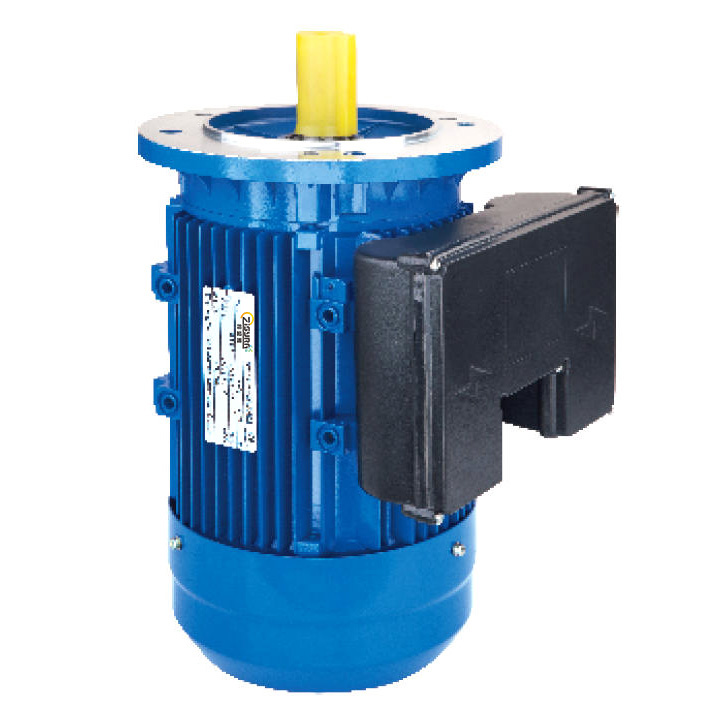

When working with Double Capacitor Single Phase Motors, one of the most misunderstood troubleshooting questions is what actually occurs if you reverse the connections of the two capacitors. These motors, widely used in heavy-duty appliances and industrial equipment, contain both a start capacitor and a run capacitor. Zisyra has observed that many technicians assume swapping these leads is harmless, but the reality is far more critical for motor performance and safety.

In a properly wired Double Capacitor Single Phase Motor, the start capacitor provides a high capacitance value for high starting torque, while the run capacitor offers a lower capacitance for efficient operation during running. Reversing their connections means connecting the large start capacitor into the run circuit and the smaller run capacitor into the start circuit. The result is immediate and damaging.

Immediate consequences of reversing the two capacitors

• Reduced starting torque – The motor may fail to start under load or hum without rotating.

• Overheating – The start capacitor is not rated for continuous duty and will overheat rapidly.

• Capacitor failure – The start capacitor can swell, leak, or rupture within minutes.

• Reduced efficiency – The run capacitor cannot provide the required phase shift for startup.

How to correctly identify capacitor terminals in Double Capacitor Single Phase Motors

Always check the microfarad (µF) rating printed on each capacitor. The larger µF value belongs to the start circuit; the smaller µF belongs to the run circuit. Zisyra recommends using a multimeter with capacitance testing before any rewiring.

Double Capacitor Single Phase Motors FAQ

Q1: Can reversing the two capacitors permanently damage my motor?

A1: Yes, permanent damage is likely within a few minutes. The start capacitor overheats due to continuous current flow, potentially bursting and leaking electrolyte onto windings. The run capacitor fails to provide adequate phase shift, causing the start winding to overheat. If the centrifugal switch does not open because the motor never reaches sufficient speed, both windings can burn out. Zisyra advises immediate motor disconnection if you suspect reversed connections.

Q2: Will the motor rotate in the opposite direction if I reverse the two capacitors?

A2: No, reversing the two capacitors does not change rotation direction. In Double Capacitor Single Phase Motors, the start and run capacitors work together to create phase shift, but direction reversal requires swapping the main winding or start winding leads relative to the power supply. The capacitor reversal only alters capacitance values in each circuit, causing poor starting performance and overheating, not direction change.

Q3: How can I test whether my motor’s capacitors are correctly connected?

A3: First, disconnect power and discharge both capacitors through a 20,000-ohm resistor. Use a capacitance meter to verify each capacitor matches its label – the higher µF goes to the start circuit (usually in series with the centrifugal switch). Trace the wiring: the run capacitor stays connected to the auxiliary winding even after startup. A proper wiring diagram from Zisyra or the motor manufacturer is essential. If unsure, replace both capacitors with new ones and follow the diagram exactly.

Best practices for maintaining Double Capacitor Single Phase Motors

• Always label both capacitor leads before disconnecting.

• Replace capacitors in pairs for balanced performance.

• Use only capacitors with the same or higher voltage rating.

• Consult Zisyra technical resources for model-specific wiring guides.
