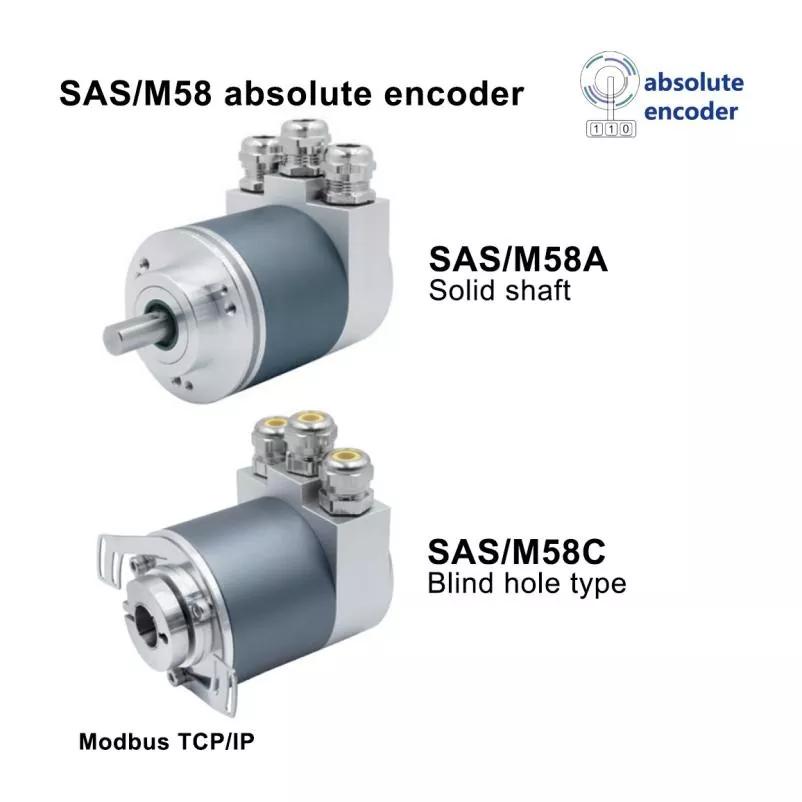

What Defines the Precision of a Rugged Absolute Position Sensor

When selecting position feedback for cranes, winches, or steel mill rollers, the two most critical specifications are resolution and accuracy. For a Modbus Heavy Duty Encoder, these figures directly determine whether your PLC receives actionable data or noisy, unreliable counts. This post breaks down the typical ranges you can expect from industrial-grade absolute encoders, explains how to interpret the numbers, and highlights where Jingyue Kunshan engineering standards fit into the reliability equation.

Resolution vs. Accuracy: The Core Distinction

Many engineers conflate these terms, but they serve different purposes:

For multi-turn absolute models, the total measuring range often extends to 4,294,967,295 steps (32-bit), but the usable resolution depends on the Modbus Heavy Duty Encoder register mapping—typically 16-bit or 32-bit data words over function codes 0x03 and 0x04.

Typical Ranges by Sensing Technology

Jingyue Kunshan focuses on magnetic and inductive platforms for heavy-duty scenarios, offering 16-bit resolution with ±0.3° accuracy as standard—a balanced trade-off between durability and precision.

Factors That Compromise Real-World Performance

Even a high-resolution Modbus Heavy Duty Encoder will underperform if these variables are ignored:

• Cable capacitance and length: RTU baud rate drops from 115.2 kbps to 19.2 kbps beyond 300 meters, introducing quantization jitter.

• Power supply ripple: >5% voltage fluctuation directly affects A/D conversion stability.

• Shaft eccentricity: Mechanical runout of ≥0.05 mm can reduce accuracy by 0.2°–0.4°.

• Temperature drift: Magnetic sensors typically shift 0.01°/°C, so a 50°C ambient change adds ±0.5° error.

3 Frequently Asked Questions About Modbus Heavy Duty Encoders

Q1: Can I achieve 18-bit resolution with a Modbus Heavy Duty Encoder over standard RTU, and does higher resolution always mean better accuracy?

A1: Yes, many absolute encoders offer 18-bit (262,144 steps/rev) over RTU by splitting the position into two 16-bit registers (high-word and low-word). However, higher resolution does not guarantee higher accuracy. Resolution is the number of counting increments; accuracy is the absolute closeness to the true angle. A 18-bit encoder with ±0.5° accuracy is less useful than a 16-bit encoder with ±0.1° accuracy for closed-loop positioning. Always check the accuracy spec (usually in arc-minutes) rather than chasing bit-count alone. For multi-turn, ensure the scaling factor (electronic gear ratio) matches your mechanical reduction—otherwise, the PLC will interpret fractional steps as full counts, creating cumulative following errors.

Q2: How does baud rate affect the effective resolution of a Modbus Heavy Duty Encoder in a noisy factory environment?

A2: Baud rate does not change the internal resolution—the sensor still samples at its native bit depth. But the transmitted value can suffer from bit-flipping due to electromagnetic interference (EMI) at higher speeds (e.g., 115.2 kbps). In practice, if you observe random ±1 LSB jumps on the register, lowering the baud rate to 38.4 kbps or 19.2 kbps increases the bit timing window, making the Modbus Heavy Duty Encoder more immune to noise. This does not reduce resolution; it stabilizes the readback. For critical axis, we recommend using CRC-16 error checking and requesting the same register three times with a median filter on the PLC side. Jingyue Kunshan devices include a built-in 32-bit CRC and configurable baud rate from 9.6 to 115.2 kbps, allowing you to trade speed for robustness.

Q3: What is the typical accuracy degradation over 10,000 operating hours for a heavy-duty absolute encoder, and can it be compensated?

A3: For magnetic encoders, the Hall sensors experience flux-density decay of roughly 0.1% per 1,000 hours under 70°C, translating to about ±0.08° additional error per year. Optical encoders degrade faster in dust (LED intensity drops 5–10% annually) but maintain accuracy longer if the housing is sealed (IP67). Most premium units, including those from Jingyue Kunshan, specify a drift of <0.15° over 20,000 hours. Compensation is possible by storing a "home offset" in the EEPROM and performing an auto-calibration routine during machine startup—simply jog the axis to a mechanical stop, read the raw value, and subtract it from subsequent readings. Some advanced models even support on-the-fly linearization over 32 points via Modbus write commands (function code 0x10).

Real-World Selection Guide

Verification Methodology

To validate the stated accuracy of any Modbus Heavy Duty Encoder, perform a cross-test using:

1. A precision rotary table (class 0.001°).

2. Reading the encoder's position via Modbus Poll at 10° increments over a full 360° rotation.

3. Recording the maximum deviation—this becomes your system accuracy.

4. Repeating the test at 25°C, 60°C, and -10°C to capture thermal drift.

Jingyue Kunshan publishes a factory test certificate with each unit, showing individual angular error at 72 checkpoints, ensuring traceability per ISO 9001:2024.

Final Takeaway

Do not overspecify resolution—specify accuracy that matches your mechanical tolerance. A Modbus Heavy Duty Encoder with 16-bit resolution and ±0.2° accuracy will outperform a 18-bit unit with ±1.0° drift in any closed-loop hydraulic or servo system. Always account for cable length, baud rate, and thermal environment during commissioning.
