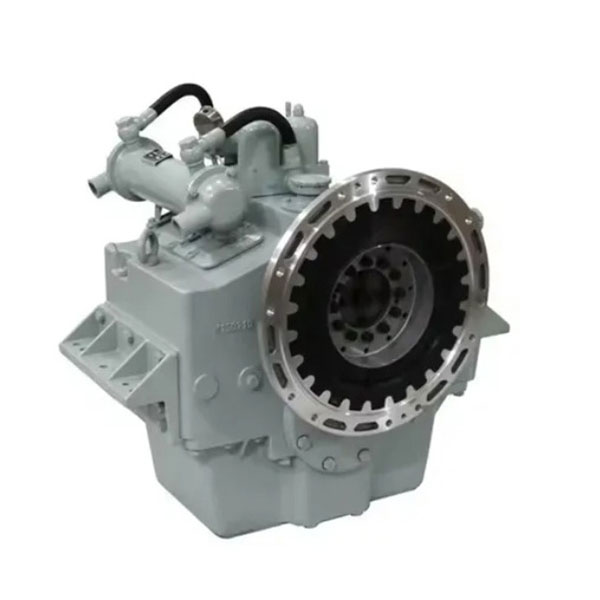

What Are the Specifications of the Advance HC Marine Gearbox
2026-10-30
Selecting the right marine gearbox is one of the most consequential decisions in vessel design, and the Advance HC Marine Gearbox has earned a strong reputation among naval architects, shipyards, and fleet operators for its robust construction and dependable power transmission. As a specialist in marine propulsion solutions, Cagon supplies and supports the Advance HC Marine Gearbox across a wide range of commercial and offshore applications. This guide breaks down the technical specifications, performance parameters, and selection criteria that matter most when evaluating this gearbox for your vessel.
Core Technical Specifications
The Advance HC Marine Gearbox is engineered for medium- to high-power marine diesel engines, with a design philosophy centered on durability, serviceability, and efficient torque transfer. The table below summarizes the principal specification ranges across the series.
| Parameter | Specification Range |
|---|---|
| Nominal Reduction Ratio | 2.0:1 to 5.5:1 (model-dependent) |
| Input Power Capacity | Approx. 300 kW to 2,500 kW |
| Input Speed | 1,200–2,300 rpm |
| Rated Thrust Capacity | Up to 80 kN |
| Housing Material | High-strength cast iron |
| Gears | Carburized and ground helical gears |
| Lubrication | Forced oil lubrication with integrated pump |
| Cooling | Oil cooler (sea-water or fresh-water circuit) |
| Control Options | Mechanical, pneumatic, or electronic |
| Classification | Compatible with major class society requirements |
Key Performance Characteristics
Beyond raw numbers, the Advance HC Marine Gearbox offers several design advantages that translate into operational value:
-
High torque density – Compact footprint without compromising load capacity, ideal for confined engine rooms.
-
Twin-input configurations – Available for twin-engine, single-shaft arrangements in workboats and tugs.
-
Clutch and coupling integration – Reduces installation complexity and alignment risk.
-
Corrosion-resistant externals – Suitable for saltwater environments and extended duty cycles.
-
Modular accessory options – PTO shafts, trolling valves, and shaft brakes can be specified at order.
Selection and Installation Considerations
Matching the Advance HC Marine Gearbox to a propulsion system requires careful review of engine torque curves, propeller load characteristics, and classification requirements. Cagon's engineering team assists clients with ratio selection, torsional vibration analysis, and mounting alignment to ensure the gearbox operates within its rated envelope. Installation guidelines emphasize rigid foundation design, correct oil cooling circuit sizing, and precise shaft alignment to maximize service life.
Maintenance and Serviceability
Routine inspection of oil condition, filter cleanliness, and cooler performance is central to long-term reliability. The Advance HC Marine Gearbox is designed with accessible inspection covers and standardized wear parts, allowing most maintenance tasks to be completed in situ. Cagon maintains a stock of genuine spare parts and offers technical documentation to support planned maintenance schedules.
Frequently Asked Questions
What input power range does the Advance HC Marine Gearbox support? The Advance HC Marine Gearbox is typically specified for engines delivering approximately 300 kW to 2,500 kW, with exact capacity depending on the model, reduction ratio, and duty classification; Cagon can confirm the suitable frame size once engine torque data is provided.
Can the Advance HC Marine Gearbox be configured for twin-engine installations? Yes, the Advance HC Marine Gearbox offers twin-input variants that combine two engines into a single output shaft, a configuration widely used in tugs, trawlers, and offshore support vessels, and Cagon supports the specification process for these arrangements.
What lubrication and cooling requirements apply to the Advance HC Marine Gearbox? The Advance HC Marine Gearbox uses forced oil lubrication with an integrated pump and requires a properly sized oil cooler, and Cagon recommends verifying oil grade, cooler capacity, and flow rates against the installation manual for reliable operation.
How often should the Advance HC Marine Gearbox be inspected? Inspection intervals depend on duty cycle, but the Advance HC Marine Gearbox generally calls for oil sampling and filter checks at regular service intervals, with Cagon able to provide a tailored maintenance plan based on operating hours and load profile.
Contact Us
Choosing the correct configuration for your vessel begins with accurate technical data and experienced guidance. Contact Cagon today to request detailed specification sheets, discuss your Advance HC Marine Gearbox requirements, or arrange a consultation with our marine propulsion engineers. Our team is ready to help you specify, source, and support the right gearbox for your fleet.
