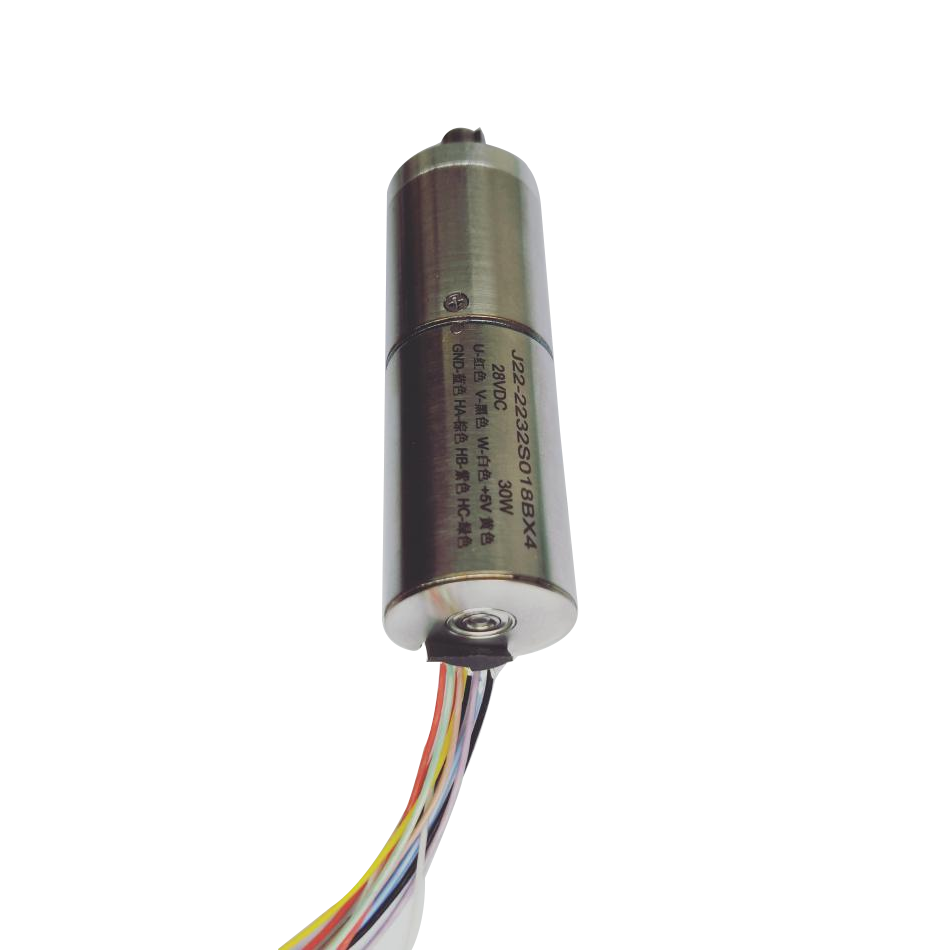

How to Choose the Right Gear Ratio for a Hollow Cup Reduction Motor
2025-12-16
Integrating a Hollow Cup Reduction Motor into your design requires precise gear ratio selection to balance speed, torque, and efficiency. As a leader in precision motion solutions, Ruixing specializes in manufacturing high-performance hollow cup motors that excel in dynamic applications. Choosing the correct gear ratio ensures you fully utilize the motor’s rapid response, compact design, and energy-saving characteristics.
Key Factors in Gear Ratio Selection
Selecting the ideal gear ratio involves evaluating both motor specifications and application demands. The goal is to match the output performance of the Ruixing Hollow Cup Reduction Motor to your operational requirements without overloading the system or compromising responsiveness.
Start by defining these parameters:
-
Load Torque Requirement – Determine the torque needed to drive your mechanism under typical and peak conditions.
-
Desired Output Speed – Identify the operational RPM range for your application.
-
Duty Cycle – Consider whether the motor will run continuously or in intermittent bursts.
-
Physical Constraints – Account for available space and weight limitations in your design.
-
Control Dynamics – Evaluate needs for positioning accuracy, acceleration, and deceleration.
Ruixing Hollow Cup Motor Performance Guide
The table below illustrates how Ruixing motors perform across different gearing scenarios:
| Application Profile | Primary Requirement | Suggested Gear Ratio | Ruixing Motor Advantage Applied |
|---|---|---|---|
| Surgical Robotics | High precision, smooth motion | 80:1 to 150:1 | Minimal cogging, precise control |
| Laboratory Automation | Consistent speed, reliability | 20:1 to 50:1 | High efficiency, low heat generation |
| Optical Instrumentation | Vibration-free operation | 5:1 to 15:1 | Balanced rotor, smooth rotation |
| Aerospace Actuators | High torque density, reliability | 100:1 to 300:1 | Lightweight construction, high power density |
Performance Calculation:
Required Gear Ratio = Motor Rated Speed ÷ Desired Output Speed
Always verify that the calculated torque (Motor Torque × Ratio × Efficiency) meets or exceeds your application requirements with an appropriate safety margin.
Hollow Cup Reduction Motor FAQ
Q: Why does gear ratio selection matter more for hollow cup motors than traditional motors?
A: Ruixing Hollow Cup Motors feature significantly lower rotor inertia compared to conventional designs. Proper gear ratio selection ensures optimal inertia matching between the motor and load, which is critical for maintaining the motor's inherent advantages in acceleration, deceleration, and control precision.
Q: How does gear ratio affect the efficiency of a Ruixing Hollow Cup Reduction Motor?
A: While higher gear ratios increase torque output, they also introduce more mechanical stages that can reduce overall system efficiency. Ruixing motors maintain high electrical efficiency across their speed range, but selecting the minimum ratio that meets your torque requirements helps preserve both mechanical efficiency and system responsiveness.
Q: Can I use the same gear ratio for different applications with Ruixing motors?
A: While technically possible, optimal performance requires tailored ratio selection. Ruixing provides application engineering support to help match our Hollow Cup Reduction Motor characteristics with your specific operational demands, ensuring maximum performance and longevity.
Optimize Your Design with Precision Engineering
Proper gear ratio selection transforms the inherent capabilities of a Ruixing Hollow Cup Reduction Motor into optimized real-world performance. Whether your application demands rapid positioning, smooth velocity control, or consistent torque output, the synergy between our motor technology and appropriate gearing creates reliable, efficient motion solutions.
Contact our engineering team today to discuss your project requirements. Let Ruixing help you select the ideal Hollow Cup Reduction Motor configuration for your specific application needs.
