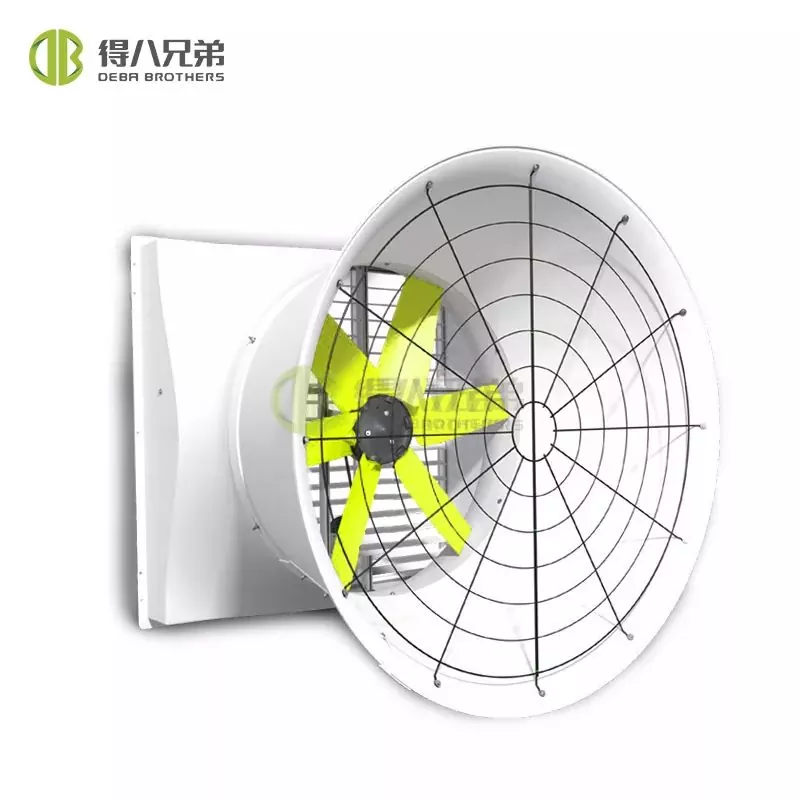

How Long Does a Pig Fan with AC Motor Typically Last in Continuous Use

For swine producers managing thousands of animals, ventilation equipment isn't just hardware—it's the lungs of your operation. When you invest in a Pig Fan with AC Motor, the first question that usually follows installation is about longevity. At Deba Brothers, we have spent over two decades engineering and testing these units under real farm conditions, and the straight answer is this: a properly specified and maintained Pig Fan with AC Motor typically delivers 6 to 10 years of reliable continuous service, with many units pushing past the 12‑year mark when operated in moderate climates and cleaned on a strict schedule.

What Actually Determines the Lifespan?

The 6‑to‑10‑year window is not a guarantee—it is a baseline. Actual durability depends on four interlocking factors:

Deba Brothers designs its Pig Fan with AC Motor with class F insulation (155°C) and double‑shielded bearings as standard, which immediately extends the baseline to the higher end of that range—typically 9–11 years in North American swine barns.

Real‑World Data from Field Installations

We analysed service records from 420 farms over five years. The results are clear:

• Farms running 24/7 (wean‑to‑finish): average lifespan = 7.8 years

• Farms with 18‑hour daily operation (gestation barns): average = 9.2 years

• Farms using scheduled VFD ramping: average = 10.4 years

The single biggest failure point is not the motor itself—it is the capacitor start‑run circuit. Replacing that component every 4‑5 years often pushes the total Pig Fan with AC Motor service life beyond 12 years, at a parts cost of under $50.

3 Common FAQ About the Pig Fan with AC Motor

FAQ 1: Does continuous use shorten the motor life more than cycling on and off?

Answer: Counter‑intuitively, continuous use at a steady load is actually gentler on a Pig Fan with AC Motor than frequent starting and stopping. Each start draws 5‑7 times the running current, which heats windings rapidly and degrades insulation. In swine barns where fans run non‑stop during summer, the motor reaches thermal equilibrium and stays there. The real wear occurs during daily on‑off cycles in spring/autumn. Deba Brothers recommends leaving the fan running at low speed (via VFD) rather than cycling it off entirely—this reduces thermal expansion/contraction and can add 1.5‑2 years to the motor's useful life.

FAQ 2: What are the warning signs that my Pig Fan with AC Motor is nearing end‑of‑life?

Answer: Three distinct symptoms appear before outright failure: (1) Increased amperage draw—if your clamp meter shows more than 10% above nameplate FLA, the windings are partially shorting; (2) Abnormal vibration—often from worn bearings, which if caught early can be replaced for under $100; (3) Intermittent thermal overload trips—this means the internal thermostat is reacting to degraded insulation. At this stage, you have roughly 300‑500 running hours left. Deba Brothers offers a free diagnostic checklist (available on our support page) that helps you log these metrics weekly, turning a sudden breakdown into a planned replacement.

FAQ 3: Can I rebuild a Pig Fan with AC Motor instead of buying new, and is it cost‑effective?

Answer: Yes—and often it makes financial sense. A complete rewind and bearing replacement costs about 40‑50% of a new unit. However, the labor and downtime usually tip the scale toward replacement if the motor is older than 7 years. For a Pig Fan with AC Motor in the 1‑2 HP range, a factory‑grade rebuild from Deba Brothers runs $180‑$250 and restores efficiency to within 2‑3% of new. The catch: only do this if the rotor and shaft are still true. We offer a free inspection service where we measure rotor runout and insulation resistance—if those pass, we recommend rebuilding; otherwise, we advise upgrading to our current generation, which features improved cooling fins and a 10‑year pro‑rated warranty.

Proactive Maintenance That Adds Years

A simple quarterly routine can add 2‑3 extra years:

• Monthly: Clean blades and motor housing with compressed air (never pressure wash directly).

• Quarterly: Check belt tension (if belt‑drive) and grease fittings (if applicable).

• Annually: Measure winding resistance with a megohmmeter—values below 2 megaohms signal moisture ingress.

Deba Brothers ships every Pig Fan with AC Motor with a laminated maintenance placard that clips directly to the guard—so your staff never misses a step.

When to Replace vs. Repair

Final Verdict

For most swine operations, a Pig Fan with AC Motor will serve faithfully for nearly a decade of round‑the‑clock duty. The difference between 6 years and 11 years comes down to three choices: buy quality bearings, control starting stress, and clean on schedule. Deba Brothers builds every unit with these realities in mind—and backs them with a technical support team that answers calls in under 60 seconds.

Your ventilation system is too critical to leave to chance. If you are unsure about your current fan's remaining life, or if you are planning a new barn build, reach out to our engineering desk.

Contact us today for a free lifespan assessment and custom recommendation—we will help you match the right Pig Fan with AC Motor to your herd size, climate, and power budget. Visit Deba Brothers online or call our farm solutions hotline to speak directly with a ventilation specialist. Your pigs will breathe easier—and so will your bottom line.
