How Does Heat Dissipation in a Voice Coil Motor Affect Its Linear Drive Performance Over Time
2026-04-09

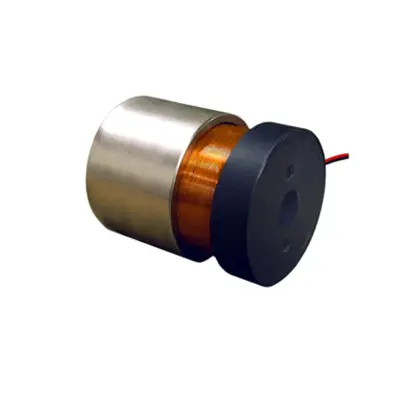

In precision motion systems, thermal management is often the hidden determinant of long-term reliability. For a Voice Coil Motor Linear Drive, heat generation is inevitable during continuous operation. Understanding how heat dissipation influences performance over time is critical for engineers designing high-duty-cycle applications. At KGL, we specialize in optimizing Voice Coil Motor Linear Drive systems to maintain accuracy and force stability even under thermal stress.
The Short-Term vs. Long-Term Impact of Heat
When a Voice Coil Motor Linear Drive operates, current passing through the copper coil produces resistive heat (I²R losses). In the short term, moderate temperature rise reduces electrical resistance efficiency. However, over extended periods, poor heat dissipation leads to:
-
Increased coil resistance (copper’s temperature coefficient ~0.39% per °C), reducing force output.
-
Demagnetization of permanent magnets if the Curie temperature is approached.
-
Thermal expansion of moving parts, altering air gaps and positioning accuracy.
Quantitative Effects of Temperature Rise on Key Parameters
| Performance Parameter | Effect at +25°C Rise | Effect at +50°C Rise | Long-Term Consequence |
|---|---|---|---|
| Coil Resistance | +10% | +20% | Reduced force/current ratio |
| Force Constant (Kt) | -1% to -2% | -3% to -5% | Lower acceleration capability |
| Magnet Flux Density | -2% | -6% | Permanent thrust degradation |
| Positioning Repeatability | Micro-slip increase | >10 µm drift | Loss of precision |
Design Strategies for Sustained Performance
KGL integrates advanced heat dissipation methods into every Voice Coil Motor Linear Drive:
-
High-thermal-conductivity epoxy potting for coils
-
Aluminum or copper core bobbins acting as heat sinks
-
Forced air or liquid cooling channels in high-force models
Without such measures, a Voice Coil Motor Linear Drive operating at 50% duty cycle may see 15-20% force drop after one year of continuous use.
Voice Coil Motor Linear Drive FAQ
What is the maximum safe temperature for a Voice Coil Motor Linear Drive before permanent damage occurs
Most Voice Coil Motor Linear Drive designs use neodymium magnets with a maximum operating temperature of 80°C to 120°C. Coil insulation is typically Class F or H, rated for 155°C or 180°C. However, continuous operation above 100°C accelerates magnet degradation. KGL recommends keeping coil temperature below 110°C for long life, using embedded thermistors or thermocouples for real-time monitoring.
How can I calculate the temperature rise in a Voice Coil Motor Linear Drive for a given duty cycle
Temperature rise follows thermal resistance (Rth) models: ΔT = P_loss × Rth. First, measure coil resistance (R) at ambient. Then calculate average power: P_avg = I²R × duty cycle. Multiply by thermal resistance (provided by manufacturer, typically 2-10°C/W for natural convection). Example: 1.5A, 5Ω coil, 60% duty → 1.5²×5×0.6=6.75W. With Rth=4°C/W, ΔT=27°C. If ambient is 25°C, steady-state = 52°C. KGL provides online calculators and datasheet Rth values for precise predictions.
Does active cooling extend the lifespan of a Voice Coil Motor Linear Drive significantly
Yes. Active cooling (forced air or liquid) reduces steady-state temperature by 30-50%. For a Voice Coil Motor Linear Drive operating at 70% duty, natural convection may reach 95°C coil temperature, while forced air (2 m/s) drops it to 65°C. According to Arrhenius aging models, every 10°C reduction doubles insulation and magnet life. With KGL’s integrated cooling plates, field data shows 3-5x lifespan extension in high-throughput pick-and-place machines.
Maintaining Performance Over Time
Regular thermal monitoring prevents unexpected degradation. KGL recommends:
-
Installing PT100 sensors near the coil
-
Logging temperature vs. force output monthly
-
Re-calibrating current loops if resistance shifts >5%
A well-cooled Voice Coil Motor Linear Drive maintains >95% of initial thrust for over 20,000 operating hours.
