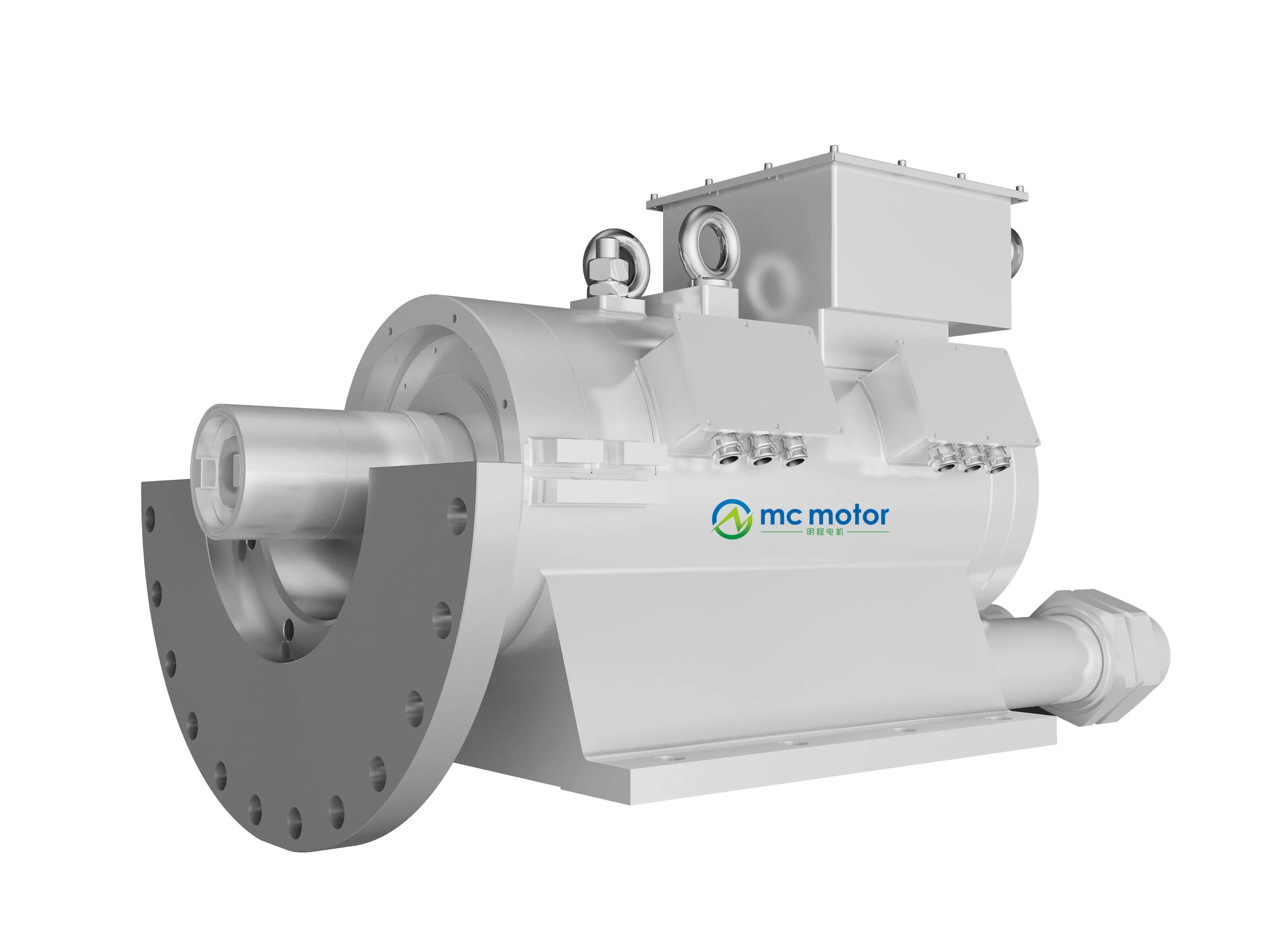

470kw 15500rpm Air Compressor High Speed Electric Synchronous Motor 3-Phsae 380V AC
470kw 15500rpm Air Compressor High Speed Electric Synchronous Motor 3-Phsae 380V ACProduct Feature1.Suitable for the 15500rpm Rated Speed2.Reserve a large margin of security3.High power & High torque4.High efficiency 5.Small size 6.Low noise low vibration7.The autonomous patented cooling structu......
Send Inquiry
Product Description
470kw 15500rpm Air Compressor High Speed Electric Synchronous Motor 3-Phsae 380V AC
Product Feature
1.Suitable for the 15500rpm Rated Speed
2.Reserve a large margin of security
3.High power & High torque
4.High efficiency
5.Small size
6.Low noise low vibration
7.The autonomous patented cooling structure
Specifications
Voltage: 380V AC/540V DC
Rated Power: 470KW
Rated Speed:15500rpm
Isolation: H
Cooling Method: Oil Cooling
Ingress Protection:IP67(IP54 option)
Duty type: S1
Pole:4
Installation: B3,B5,B35
Above price includes VFD cost
Application:
high speed compressor, fan, pump

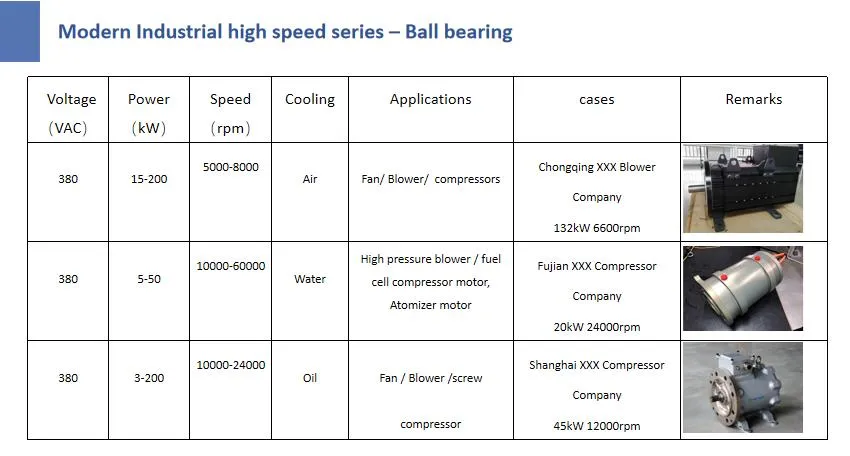

Customer Case
Other motors you will be interested in
FAQ
1. Can performanent magnet synchronous motor be used as generator?
No. Permanent magnet synchronous motor is absolutely different from generator. It is only ac motor that outputs speed and torque to drive electric devices, but not power supply.
2. Why can not directly use three phase ac supply voltage to start permanent magnet synchronous motor?
Becuase rotor is with big innertia, and magetic files spins so fast that static rotor has no way to spin with magetic filed.
3. Any special technical request on this motor's VFD driver? And Do you have such driver?
Permanent magnet synchronous motor's driver should be vector control VFD with special inner software, such as Siemens 6SE70 series, Yakawa CR5 series, ABB ACS800 series, Mitsubishi A740 series, B&R P84 and P74 series, etc.. Yes, our MH300 series VFD matches with this motor.
4. Is there any protective measures to defend permanent magnet rotor from failure?
Yes, each permanent magnet rotor passes corrossion resistance, consistency, high temperature demagnetization test, linear demagnetization test, etc. Its demagnetization index is within 2%. But if working environment is serious oxiditive corrosion, kindly advise for higher protection level.
5. Where is this permanent magnet synchronous motor normally used to?
This permanent magnet synchronous motor is normally used to variable frequency speed situation.
Product Feature
1.Suitable for the 15500rpm Rated Speed
2.Reserve a large margin of security
3.High power & High torque
4.High efficiency
5.Small size
6.Low noise low vibration
7.The autonomous patented cooling structure
Specifications
Voltage: 380V AC/540V DC
Rated Power: 470KW
Rated Speed:15500rpm
Isolation: H
Cooling Method: Oil Cooling
Ingress Protection:IP67(IP54 option)
Duty type: S1
Pole:4
Installation: B3,B5,B35
Above price includes VFD cost
Application:
high speed compressor, fan, pump
Customer Case
Other motors you will be interested in
| Motor type | Voltage (V AC) | Rated power (kW) | Rated torque (N.m) | Rated speed (rpm) | Efficiency (%) | Duty type | Insulation | Ingress protection | Pole Number | Weight (kg) | Cooling Method | position signal |
| SRPM160H4XO15 | 380 | 15 | 5.96 | 24000 | 96.5 | S1 | H/F | IP67 | 4 | 12 | Oil | Resolver |
| SRPM160H4XO75 | 380 | 75 | 35.8 | 20000 | 96.5 | S1 | H/F | IP67 | 4 | 44 | Oil | Resolver |
| SRPM160H4XO90 | 380 | 90 | 43 | 20000 | 96.5 | S1 | H/F | IP67 | 4 | 48 | Oil | Resolver |
| SRPM205H4XO110 | 380 | 110 | 52.5 | 20000 | 96.5 | S1 | H/F | IP67 | 4 | 76 | Oil | Resolver |
| SRPM205H4XO160 | 380 | 160 | 76.4 | 20000 | 96.5 | S1 | H/F | IP67 | 4 | 86 | Oil | Resolver |
| SRPM205H4XO200 | 380 | 200 | 95.5 | 20000 | 96.5 | S1 | H/F | IP67 | 4 | 95 | Oil | Resolver |
FAQ
1. Can performanent magnet synchronous motor be used as generator?
No. Permanent magnet synchronous motor is absolutely different from generator. It is only ac motor that outputs speed and torque to drive electric devices, but not power supply.
2. Why can not directly use three phase ac supply voltage to start permanent magnet synchronous motor?
Becuase rotor is with big innertia, and magetic files spins so fast that static rotor has no way to spin with magetic filed.
3. Any special technical request on this motor's VFD driver? And Do you have such driver?
Permanent magnet synchronous motor's driver should be vector control VFD with special inner software, such as Siemens 6SE70 series, Yakawa CR5 series, ABB ACS800 series, Mitsubishi A740 series, B&R P84 and P74 series, etc.. Yes, our MH300 series VFD matches with this motor.
4. Is there any protective measures to defend permanent magnet rotor from failure?
Yes, each permanent magnet rotor passes corrossion resistance, consistency, high temperature demagnetization test, linear demagnetization test, etc. Its demagnetization index is within 2%. But if working environment is serious oxiditive corrosion, kindly advise for higher protection level.
5. Where is this permanent magnet synchronous motor normally used to?
This permanent magnet synchronous motor is normally used to variable frequency speed situation.
